Description

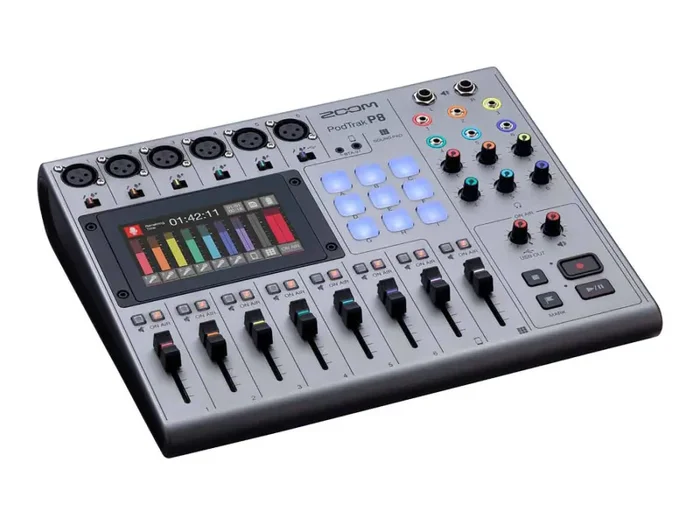

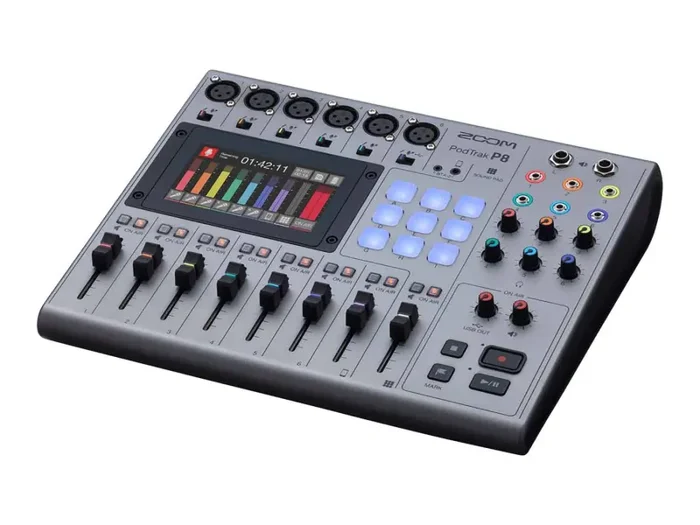

Zoom PodTrak P8 Portable Multitrack Podcast Recorder
The Zoom PodTrak P8 is easy to use and can handle the most ambitious podcasts. With all the functions you need to record, edit, and mix, the PodTrak P8 is your complete podcast studio.
Touchscreen Controls
The color touchscreen interface makes monitoring adjusting and onboard editing seamless. Everything you need is a touch away.
Mic Preamp Slider
The Mic Preamp Slider allows you to dial in the level or gain of each mic. Make adjustments until the signal is peaking in the Good Range. Peaking in the Over Range section can cause distortion in your sound.
This Call Will Be Recorded
The P8 features a dedicated channel for recording phone calls. Channel six can be switched to USB mode to record your guests from your computer. Both options include a Mix-Minus feature to prevent echo and feedback for the caller.
Added Production Value
Make your podcast sound professional by triggering sound effects, intro music, jingles, pre-recorded interviews and more, with nine multi-colored sound pads. Choose from 13 pre-loaded sounds or load your own. Create up to four banks of sounds for a total of 36 sound clips at your fingertips.
Outputs for Every Occasion
The P8 features six independent headphone outputs, each with individual volume control. For professional playback, the P8’s main outputs allow you to connect your studio monitors.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Inputs and Outputs:
Number of Input Channels: Mic inputs: 6 (mono) Smartphone input: 1 (stereo)
Number of Output Channels: 2 (6 headphones and L/R speaker outputs)
Mic:
Type: XLR jacks (2: HOT)
Input Gain: 0 + 70 dB
Input Impedance: XLR:3 kΩ
Maximum Input Level: +5 dBu (@0dBFS)
Phantom Power: +48 V
Smartphone Connection Jack:
Type: TRRS mini jack (4 contacts, TIP: L, RING 1: R, RING 2: GND, SLEEVE: MIC)
Input Impedance: 3 kΩ
Maximum Input Level: +2.5 dBu
Headphones:
Type: 3.5mm stereo mini
Maximum Output Level: 20 mW + 20 mW @32 Ω
Output Impedance: 27 Ω
Speaker Output:
Type: TRS jacks (balanced)
Maximum Output Level: +5.5 dBu
Output Impedance: 320 Ω
Ac Adapter:
Format: WAV 44.1kHz, 16-bit, mono/stereo
Recording Media: 4–32 GB cards compatible with the SDHC specification (class 10 or higher)
Audio Interface: 44.1 kHz、16-bit、6 in / 2 out
Frequency Response: -1.0 dB: 20 Hz ～ 20 kHz @44.1 kHz
Equivalent Input Noise: EIN -124 dBu (IHF-A) @+70 dB, 150 Ω input
Display: 4.3″ (480×272) full-color touchscreen LCD
Power Supply: 4 AA batteries (alkaline, lithium, or rechargeable NiMH) AC adapter (ZOOM AD-14): DC 5 V/1 A (supports USB bus power)
Power Consumption: 5 W
Weight: 3.15 lbs
Dimensions: 11.6 (W) × 9.7 (D) × 2.4 (H) inch
