Description

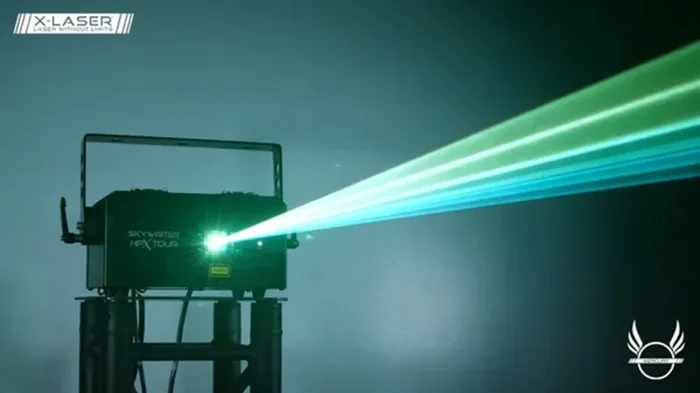

X-Laser Skywriter HPX M-5 Aerial Effect Laser with Mercury DMX – 5W
The X-Laser Skywriter HPX M-5 Aerial Effect Laser with Mercury DMX-5W smoothly handles the rigors of the road, and also makes for a spectacular permanently installed lighting fixture. The Skywriter HPX M-5 boasts 5W of RGB full-Color laser effects, so it can easily produce bright and attention-grabbing effects in venues holding up to 5,000 guests. Combining that much power with its precision 30K graphics scanners, the Skywriter HPX M-5 can also project enormous, vivid graphics hundreds of feet away. You can produce the exact effect you want thanks to integrated X-Laser Mercury control, so you can completely control the fixture from a pro lighting console (DMX, sACN, Art-Net). Its advanced Color mixing technology gets you the exact colors needed for your setting. Efficient, robust and compact, the Skywriter HPX M-5 can elevate your lighting rigs and elevate your business. (The Skywriter HPX MF-5 is also available with X-Laser Mercury control Pangolin FB4 integrated).
Direct Compatibility With Lighting Consoles
With X-Laser’s Mercury laser projector control system, the Skywriter HPX M-5 functions just like any other moving-head fixture when connected to a pro console.
Big Power, Big Value
The Skywriter HPX M-5 offers huge power at an impressive price point, making 5W RGB laser effects more accessible than ever.
Engineered for Efficiency
Six robust external cooling fans and 18 heat-sinking fins keep the Skywriter HPX M-5 cool, so your laser show can go on, and on, and on…
Road Ready, Road Rugged
With a sealed optical deck for weather resistance and a solid build that makes rigging worry-free, you can focus on creating the best possible laser show both indoors and out.
Professional, Precision Graphics
With ILDA-standard 30K graphics scanners, you can easily create sharp and stunningly bright graphics, logos, text and animated projections up to 100 feet tall.
Certified to the World’s Toughest Quality Standards
All X-Laser projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.
Certified to The World’s Toughest Quality Standards
All X-Laser projectors are all certified to comply with U.S. FDA standards and also comply with applicable IEC, UL, ETL, CSA & ROHS standards.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Control: X-Laser Mercury integrated
Scanners: High-speed, closed-loop galvanometers, max scan angle 45 degrees, 30K PPS at 8-degrees
Settings Interface: Mercury LCD
Color Modulation: Analog, 1,000+ colors
Laser Energy: 5W raw (800mW R, 1.7W G, 2.6W B)
Beam Source: Direct-injection diode modules
Wavelengths: 638nm red, 520nm green, 445nm blue
Physical: 15” L x 9.25” W x 10.25”H; 16.8lbs (381mm x 235mm x 260mm, 7.62kg)
Housing Type: Anodized 6061 aluminum
Power Draw: 80W typical, 100W peak
Power: 150W PowerCON compatible in/out, 5x20mm 250V 6.3A fast-acting fuse
Beam Divergence: 1-2 mRad
Cooling: External heat sink and fan system
FDA/IEC Hazard Class: Class 4
International Safety: IEC 60825-1 ed. 2007
FDA/CDRH: 21CFR1040.10 and 1040.11(c)
Canadian Safety: CSA C.22.2 No. 60950-1
EU Safety: EN 60825-1, EN 60950
