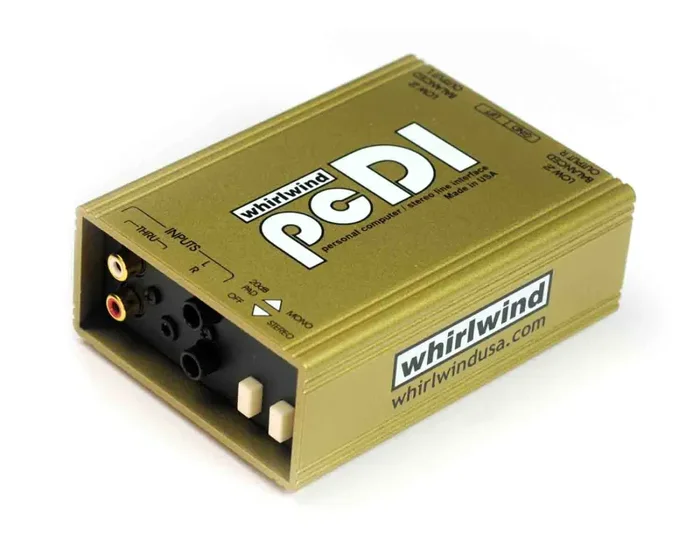

Whirlwind PCDI 2-channel Passive A/V Direct Box
The Whirlwind PCDI 2-channel Passive A/V Direct Box with RCA phono, 3.5mm TRS stereo, and 1/4″ TS connectors, designed to interface unbalanced stereo line sources with professional, balanced low-impedance equipment. Output is via corresponding color-coded XLRs. The pcDI features a ground-lift switch per channel to help eliminate hum, a 20-dB pad switch for connecting “hot” signals and is perfect for interfacing the outputs of CD players, computer sound cards, MP3 players, etc. A stereo/mono switch allows for stereo operation or for combining both inputs into a mono signal that is sent to both outputs.
Product Specifications
Input Connections: 1 x 1/8″ / 3.5 mm TRS Stereo Mini, 2 x RCA Phono, 2 x 1/4″ TS
Output Connectors: 2 x XLR, 2 x 1/4″ RCA Phono Thru
Output Level: 20 dB below Input Level Pad Out, 40 dB below Input Level Pad In
Impedance Ratio: 133:1, Input to Output per Channel
Frequency Response: 20 Hz to 20 kHz, ±1.0 dB
Power: Passive
Specialties: Uses Whirlwind’s TRHL-M Transformer with Metal Shield
Package Weight: 2 lb
Box Dimensions (LxWxH): 7” x 7” x 2″
