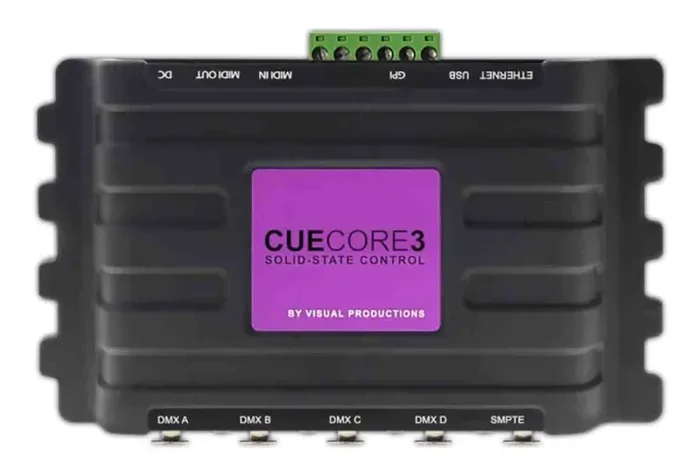

Visual Productions CueCore3 Lighting Controller
The Visual Productions CueCore3 Lighting Controller raises the bar for an already very successful range of architectural lighting controllers. A lot of lighting power in a small package. As always, the CueCore3 is designed for non-stop operation, having no moving parts. The unit is completely solid-state and achieves the reliability that allow lighting engineers to ‘fit and forget’.
All operating and programming is done through its dynamic web interface. Each CueCore includes a 4-universe license for the Cue lux Pro software
Product Specification
| Specification | Measurement |
|---|---|
| Protocols | DMX 512, ArtNet, sACN, HTTP, TCP, UDP, OSC, KiNet, MTC, MSC, MMC |
| DMX 512 Channels | 20,048 |
| Internal Memory | 16 playbacks + 128 tracks DMX recording |
| DMX 512 Output | 4 x XLR 5-pin female |
| Ethernet Connection | RJ 45 female |
| SMPTE Time Code Connection | 1 x XLR 3-pin female |
| MIDI Connection | 2 x DIN 5-pin female |
| I/O Connection | Plug-in connector |
| Power Supply | External |
| Main’s Voltage | 9-12 VDC PoE (Power over Ethernet) |
| Power Consumption | 0.5 A at 9 V |
| Housing Protection Class | IP20 |
| Dimensions | 6.6 x 3.9 x 1.6 Inches |
| Weight | 0.66 lb |
