Description

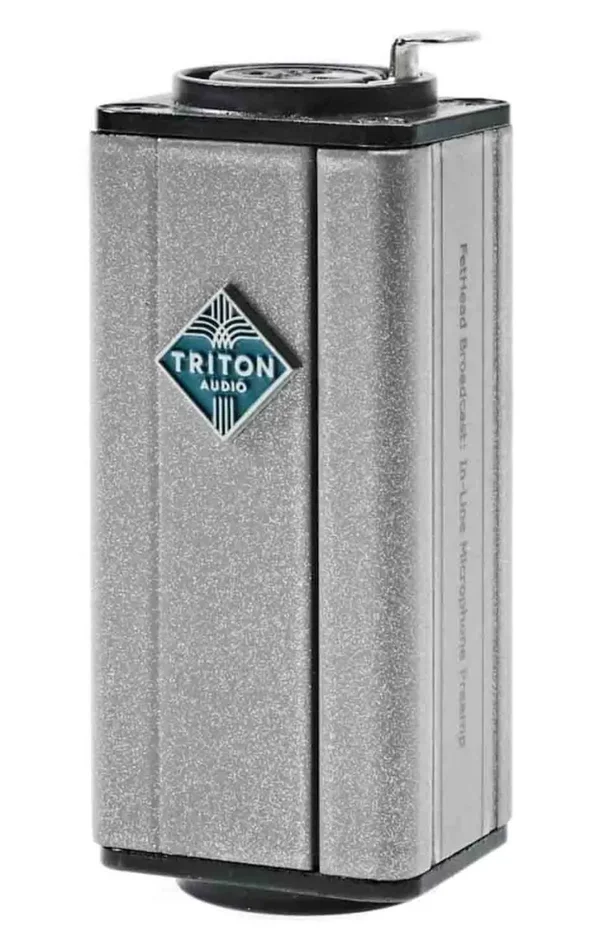

Triton Audio FetHead Broadcast Microphone Preamp – Mic Booster
The Triton Audio FetHead Broadcast is a Microphone Preamp for Live and Broadcast Application is an in-line microphone preamplifier specially designed for operating in challenging live environments. FetHead Broadcast offers 23dB of low noise high-quality amplification which can be applied to either dynamic or condenser microphones as phantom power is transferred to the microphone
Live and Broadcast Environments
In broadcast or live performance situations, a microphone signal often travels through long cables before reaching the mixing desk. When small microphone signals travel adjacent to power lines or dimmed light cables, audible signal interference is likely to be inducted into the microphone cable. Fethead Broadcast amplifies the microphone signal before the cable and greatly improves the signal-to-noise ratio offering a much higher quality signal to the mixing desk. A low impedance output buffer enables output drive to long cables (up to 3000 meters). Another advantage is that the FetHead Broadcast does not need main supplies or batteries.
Operation
Connect your microphone to the input XLR of your Fethead Broadcast. On the opposite side, an XLR cable runs from your Fethead Broadcast to the mixer/preamp. it’s ready for use with any type of phantom-powered setup. Fethead Broadcast uses phantom power to power its circuitry, but also provides enough phantom power to power the connected microphone
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Type: In-line Mic Preamp
Channels: 1
Inputs: 1 x XLR
Outputs: 1 x XLR
Features: 23dB Gain Boost
Power Supply: 48V phantom power
Height: 3.11″
Width: 1.22″
Depth: 1″
Weight: 0.17 lbs.
