Description
Shure P3TRA215TWP, PSM300 Twin Pack Pro Ideal Monitoring Solution
The Shure PSM 300 Twin-Pack Pro Wireless In-Ear Monitor Kit is a professional-grade monitoring solution designed for live performances, theater productions, rehearsals, and houses of worship. This kit provides performers with reliable, high-quality wireless audio with 24-bit digital audio clarity and 300-foot transmission range, ensuring seamless monitoring on stage.

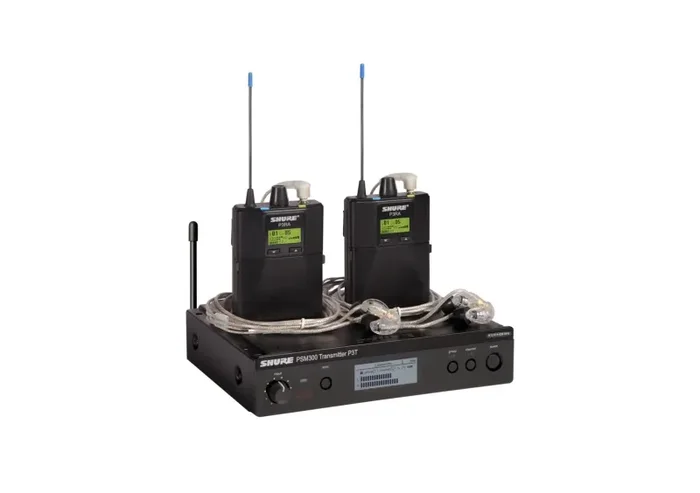

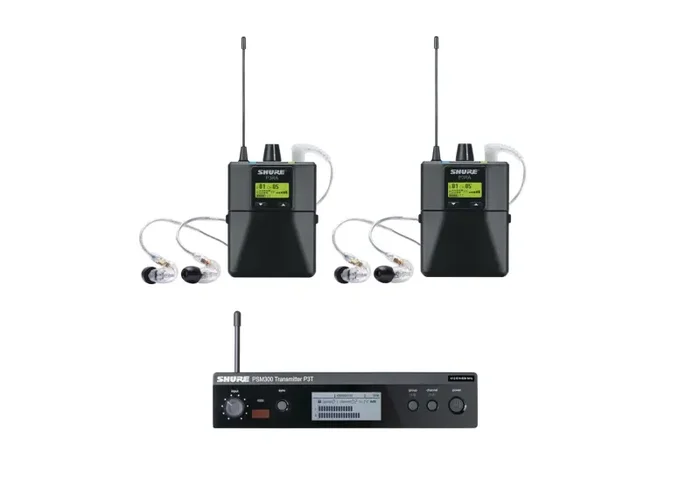

The system includes a Shure P3T wireless transmitter, two P3RA wireless bodypack receivers, and two Shure SE215 sound-isolating earphones. The P3T transmitter offers easy front-panel controls, balanced inputs and loop outputs, one-touch sync, and adjustable output power for a strong and clear wireless signal. The P3RA bodypack receivers provide detailed stereo monitoring, Mix Mode for custom mixing, a 2-band EQ, and power-saving features for extended battery life. They are built with a rugged aluminum body for durability and reliability in demanding environments.
The Shure SE215 earphones deliver clear, natural audio with deep bass and up to 37 dB noise isolation for an immersive listening experience. Their detachable MMCX cables, formable over-ear wires, and custom-fit ear tips provide a comfortable, secure fit for long performances.
Additional accessories include a 1/4 wave antenna, BNC bulkhead adapter and cable, power supply, four AA batteries, six pairs of flex sleeves (S, M, L), two drawstring pouches, and two zipper bags for the receivers. With its reliable wireless performance, robust construction, and versatile connectivity, the Shure PSM 300 Twin-Pack Pro is an ideal solution for performers who need consistent, high-fidelity in-ear monitoring.
Product Specifications:
RF Output Power: 10, 20, 30 mW (Varies by region)
RF Output Impedance: 50 Ohms (Typical)
Transmission Range: 300′ (90 m)
Audio Input:
Connector Type: 1/4″ TRS (6.35 mm)
Polarity: Tip positive with respect to ring
Configuration: Electronically balanced
Impedance: 40 kOhms (Actual)
Nominal Input Level: Switchable, +4 dBu, -10 dBV
Maximum Input Level: +4 dBu: +22 dBu, -10 dBV: +12.2 dBu
Pin Assignments: Tip = Hot, Ring = Cold, Sleeve = Ground
Phantom Power Protection: Up to 60 VDC
Audio Output:
Connector Types: 1/4″ TRS (6.35 mm)
Configuration: Electronically balanced
Impedance: Connected directly to inputs
General:
Antenna: 1/4 wave, detachable
Power Requirement: 12 to 15 VDC, 260 mA maximum
Receiver Unit:
Frequency Range: H20: 518-542 MHz
RF Sensitivity: Active: 2.2 μV (at 20 dB SINAD)
Image Rejection: > 90 dB
Adjacent Channel Rejection: > 60 dB
Intermodulation Attenuation: > 50 dB
Blocking: > 60 dB
Audio Output Power: 80 mW per output (1 kHz at < 1% distortion, peak power, at 32 Ohms)
Minimum Load Impedance: 16 Ohms
Headphone Output: 1.8″ (3.5 mm), stereo
Continuous Battery Life:
4 to 5.5 hours with AA batteries
5.5 to 7 hours with SB900 battery (Available separately)
Earphones:
Wearing Style: Dual Wired Earbud with Behind-Ear Cabling
Earpiece Design: In-Ear (Intra-Aural)
Open/Closed-Back: Closed-Back
Sound Field: Stereo
Number of Drivers: 1 per Earpiece
Driver Type: Dynamic
Impedance: 17 Ohms
Active Noise Cancellation: No
Frequency Response: 22 Hz to 17.5 kHz
Sensitivity: 107 dB SPL/mW at 1 kHz
Built-In Controls: No
Built-In Mic: No
Connectivity:
Audio Connector: 1x 1/8″ / 3.5 mm TRS Right-Angled
Cable Design: Detachable / Straight
Audio Connector to Earpiece: MMCX
Cable Length: 3.81′ / 1.16 m
Physical:
Color: Clear
Environmental Resistance: No
Shipping Information:
Shipping Weight: 6.48 lbs.
Shipping Dimensions (LxWxH): 18.3 x 14.9 x 3.8″
