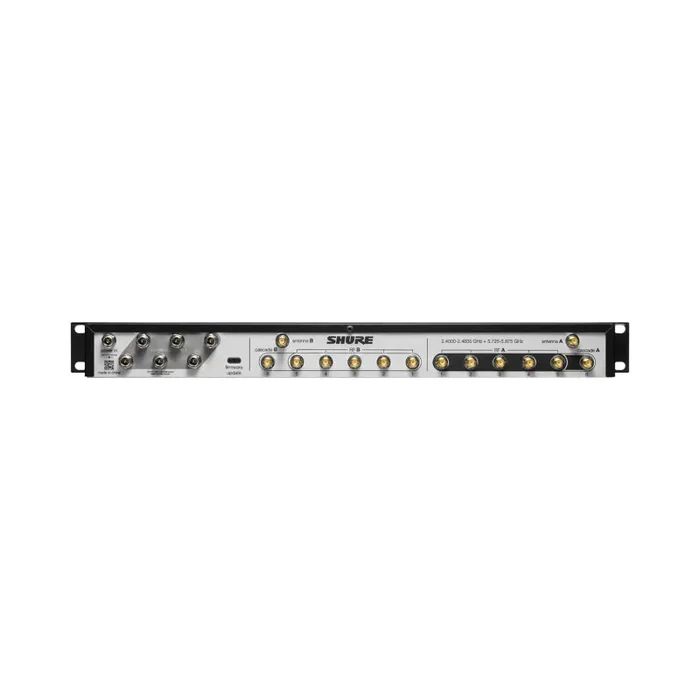

Shure GLXD+FMZ3/LC Dual Band Frequency Manager
The Shure GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The GLXD+FM Dual Band Frequency Manager connects up to six GLXD4R+ receivers together, providing solid and reliable RF performance in demanding multi-channel applications. The channel count can go up to 11 simultaneous systems in typical environments and up to 16 under optimal conditions, with flexible antenna distribution options.
Ready-To-Go. Every time. Automatically.
Provides automatic dual band frequency management to a linked receiver community for improved RF performance and increased channel count
Link up to 6 individual rack receivers via RF ports for traditional antenna distribution
Daisy-chain cascade connection allows up to 3 Frequency Managers linked as a single managing unit for 16 receivers
Intelligent frequency management quickly identifies the best frequencies
Identifies and assigns optimal frequencies to receiver/transmitter pairs
In case of interference, automatically and seamlessly transitions to backup frequencies
Provides power to the GLXD4R+ receivers, eliminating need for power strips or multiple outlets
Globally‐unlicensed 2.4GHz frequency band and 5.8 GHz frequency band
What’s In the Box:
In the Box
1 AC Power Cable
1 Rack-mount Hardware Kit
6 Pairs of RSMA Cable to connect to GLXD4R+ Receivers
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Compatibility: Shure GLX-D+ GLXD4R+ Receiver
Inputs/Outputs:
USB I/O: 1 x USB-C Female Input
RF Input:
Connector Type: Reverse SMA
RF Frequency Range: 2400 to 5850 MHz
Receiver Port Isolation: 35 dB, Typical
Impedance: 50 Ohms
Maximum Antenna Input Power: -10 dBm
Maximum Receiver Port Input Power: +15 dBm
RF Output:
Connector Type: Reverse SMA
RF Frequency Range: 2400 to 5850 MHz
Output Intercept Point: 48 dBm, Typical
Impedance: 50 Ohms
Reverse Isolation Output to Input: 35 dB, Typical
Gain, Input to any Output Port: -3 to 0 dB
Power:
Power Source: AC Adapter with Power Brick (Included)
DC Input Power : 15 VDC
Operating Current: 3.8 A (Maximum)
Mounting:
Front: 2x Rackmount
Color: Black
Material of Construction: Metal
Dimensions: 19 x 7.5 x 1.7″ / 482.6 x 189.8 x 43.9 mm
Weight: 3.8 lb / 1735 g
Shipping Weight: 8.215 lb
Shipping Dimensions (LxWxH): 23.1 x 16.7 x 3.9″
