Description

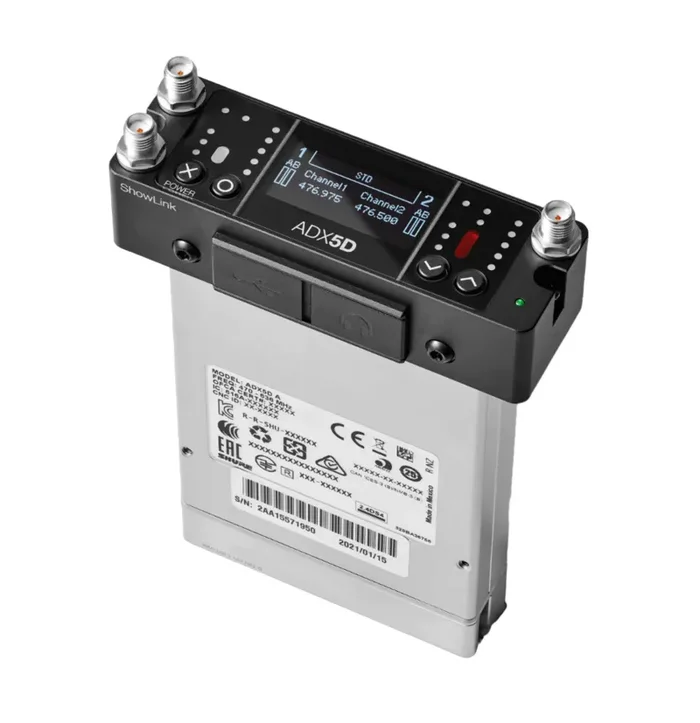

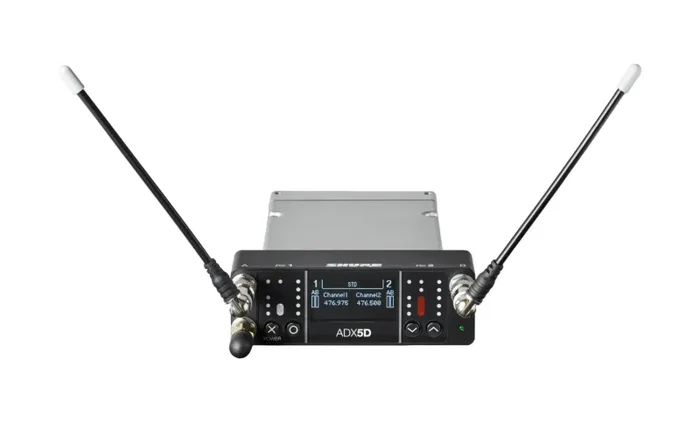

Shure ADX5DUS, Axient Digital Dual-Channel Portable Wireless Receiver
The Shure ADX5DUS, Axient Digital Dual-Channel Portable Wireless Receiver sets a new standard in spectral efficiency. Groundbreaking performance features include wide tuning, low latency, and High Density (HD) mode, ensuring solid performance in the most challenging RF environment. As an Axient Digital ADX Series wireless receiver, the ADX5D features Show Link Direct Mode that allows remote control of Axient Digital transmitters without the need of external equipment. Robust RF. Impeccable audio. Axient Digital quality and performance. All in a portable, slot-in receiver design. Premium portable wireless.
In the Box
1 ADX5D
1 USB-A to USB-C cable
2 UHF Antenna
1 Show Link (2.4GHz) antenna
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Diversity: Frequency, True Digital Diversity
RF Bandwidth: 166 MHz
Frequency Step Size: 25 kHz
RF Channel Scanning: Auto-Scan
Max Operating Range: 246.1′ / 75 m (Line of Sight)
Receiver Type: Slot-Mount
Mounting Options: Shoe-Mount, Slot-Mount (with Optional Hardware)
Antenna:
2x External, SMA (Front-Mount)
1x External, SMA (Front-Mount)
Number of Audio Channels: 2
Built-In Microphone: No
Audio I/O: 1x 1/8″ / 3.5 mm TRS Female Balanced/Unbalanced Line/Headphone Output
Slot-Mount I/O Adapters: Available Separately:
DB-25 (Uni/Super Slot)
DE-15/DB-15 (Sony Type)
TA3/Mini XLR
Gain Range: -18 to +42 dB
Frequency Response: 20 Hz to 20 kHz
Network I/O: No
Word Clock I/O: No
USB/Lightning Connectivity: USB-C Female (USB 2.0, Firmware Update)
USB Class-Compliant: No
Standalone Audio Interface Capable: No
Approximate RF Sensitivity: -90 dBm
Adjacent Channel Isolation: >70 dB
Spurious: Rejection: >80 dB
Power Requirements: Battery, DC Input
Battery Type: 1x NP-F / L-Series (Not Included)
DC Input Power: 6 to 18 VDC
Display & Indicators: LED (Battery Status, Level, Mute, RF Level, Sync, Transmitter Battery Status)
Housing: Aluminum
Operating Temperature: 0 to 122°F / -17 to 50°C
Storage Temperature: -20 to 149°F / -28 to 65°C
