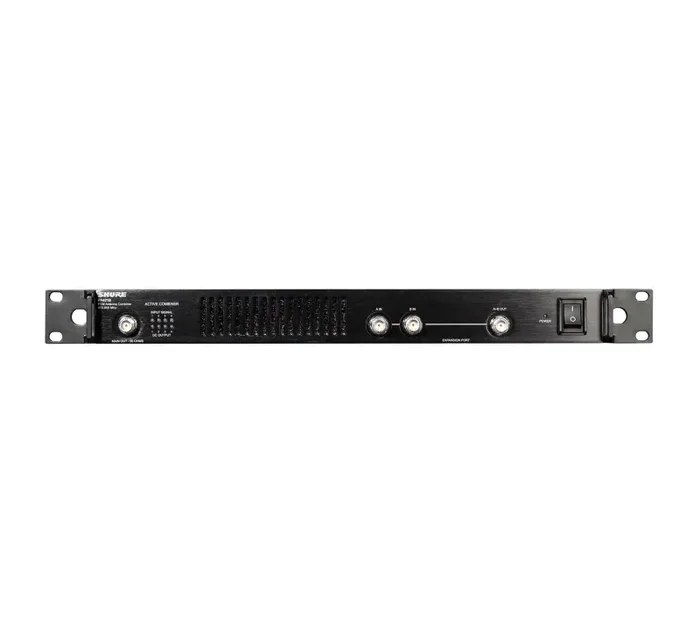

Shure 4 Channel Antenna Combiner for PSM Wireless Systems
The Shure Antenna Combiner is a versatile solution designed to streamline RF networking by combining up to four PSM transmitters, including the P3T, P9T, and P10T models, into a single antenna setup. With wideband operation from 470-865 MHz, it ensures optimized performance across various frequency ranges. The unit features four input LED indicators that signal when transmitters are active, and its quieter, temperature-sensitive fan reduces ambient noise and heat for improved efficiency. Additionally, the Antenna Combiner allows daisy-chaining of up to two combiners through its expansion port, providing flexibility for larger setups. With LED indicators for signal presence and overload, and the option for passive antenna combining, this combiner offers a robust and efficient solution for reducing rack clutter and enhancing RF performance.
Product Specification:
Connector Type: BNC
Impedance: 50 Ohms
Operating Temperature Range: 0 to 145°F (-18 to 63°C)
Power Requirements: 100 to 240 VAC, 50 to 60 Hz
Current Drain: 1.09 A (referenced at 100 VAC) (109 VA)
Power Consumption: 98 W maximum
Connector Type: BNC
Configuration: Active
Impedance: 50 Ohms
RF Gain: 0 dB (±2 dB)
LED Indicator: 2.5 dBm minimum detection threshold
>24 dBm overload threshold”
Connector Type: BNC
Impedance: 50 Ohms
Connector Type: BNC
Impedance: 50 Ohms
Insertion Loss: <4 dB
Output Voltage: 15 VDC
Output Current: 660 mA maximum (per output)
Output Power: 9.9 W (per output)
LED Indicator: 85 mA (minimum detection threshold)
>660 dBm (overload threshold)”
Shipping Weight: 16.75 lb
Shipping Dimensions (LxWxH): 27.8 x 17.8 x 3.6″
Available In:
Carrier Frequency Range: Wideband (470 to 865 MHz), Wideband (865 to 960 MHz)
