Description

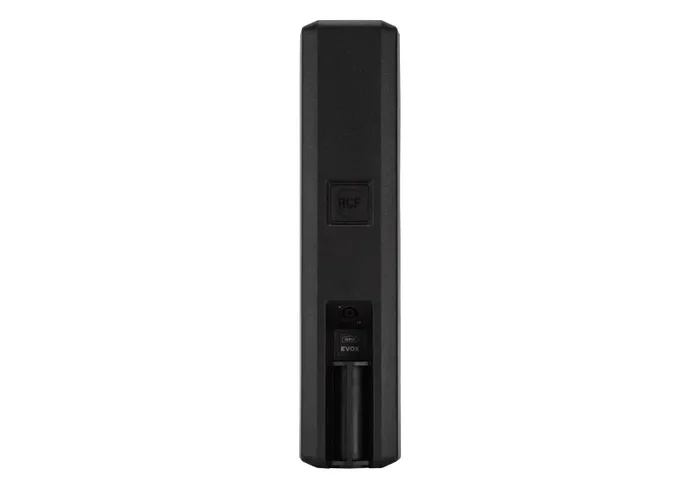

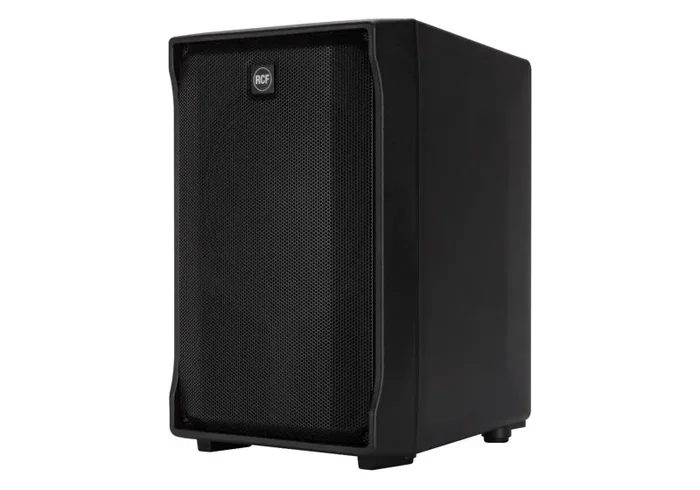

RCF EVOX JMIX8 12″ 2-Way Portable Line Array PA System with 8-Input Mixer – Black
The RCF EVOX JMIX8 is a portable line array PA system designed for musicians, DJs, and live performers. With 1400W peak power, a 12” woofer, and eight 2” full-range drivers, it delivers wide sound coverage (120° horizontal × 30° vertical) and deep bass down to 40Hz. The built-in 8-input digital mixer offers Bluetooth streaming, EQ, compression, effects, and amp simulations, all controllable via the RCF EVOX app for iOS/Android. Lightweight yet durable, it’s easy to transport with its integrated carry handle and storage compartment. Available in Black and White.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Speaker Configuration:
Type: Active 2-Way Line Array PA System
Power: 1400W Peak (700W RMS)
LF: 1000W Peak / 500W RMS
HF: 400W Peak / 200W RMS
Amplifier Class: Class-D
Drivers:
LF Driver: 12″ Woofer (2.5” Voice Coil)
HF Drivers: 8 × 2″ Full-Range Drivers (1” Voice Coil)
Performance
Frequency Response: 40 Hz – 20 kHz
Max SPL: 128 dB
Coverage: 120° H × 30° V
Crossover Frequency: 220 Hz
Connectivity:
Inputs:
4 × XLR-1/4″ Combo (Mic/Line)
1 × XLR 3-Pin Female
2 × 1/4″ TS (Stereo)
1 × Stereo RCA
1 × 1/4″ TRS (Footswitch)
Outputs:
1 × XLR 3-Pin Male
1 × 1/4″ TRS Aux Output
1 × speakON NL2 Output
USB Port: 1 × USB-B
DSP & Processing:
FiRPHASE Technology: Optimized phase & dynamics
Effects: 80 Presets (Reverbs, Delays, Modulations)
Compressor Models: 6 Presets (Light, Heavy, Vocal, Bass, Acoustic, Drum)
Graphic EQ: 7-Band with 4 Mastering Modes
Guitar Amp Simulation: 15 Models with adjustable parameters
Construction: Polypropylene Composite, Metal Grille
Dimensions (H × W × D): 24.5″ × 15.7″ × 18.1″ (62.3 × 40 × 46 cm)
Weight: 53.8 lbs (24.4 kg)
