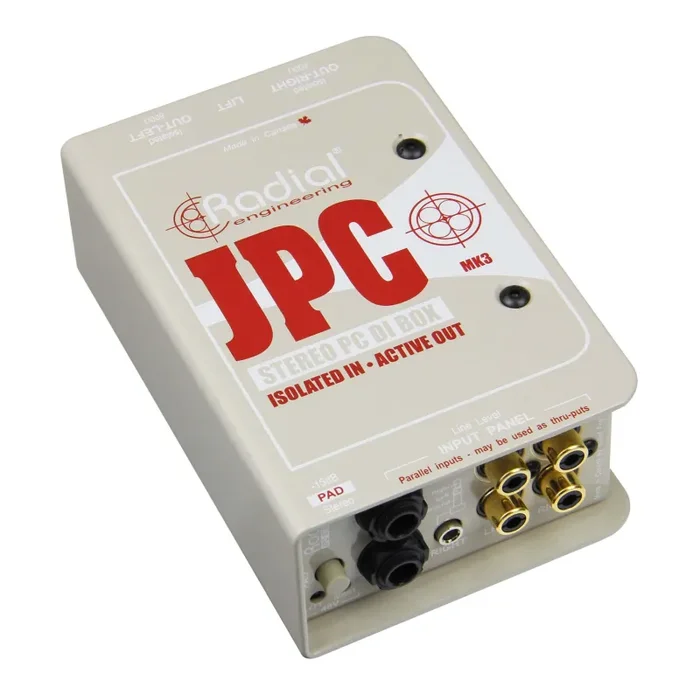

Radial Engineering RAD-JPC Stereo PC-AV Direct Box (Active RCA – XLR – 1/4in)
The JPC from Radial Engineering is a stereo direct box that has been specifically designed for connecting computer sound cards and other consumer electronic products to a professional sound system. It combines the advantages of transformer-isolated inputs with an active drive circuit.
Transformer-coupled inputs isolate the source from the destination. This eliminates 60-cycle hum and buzz. Because the active circuit does all of the impedance conversion and balancing, a dedicated 1:1 transformer can be used. This results in a hybrid design that is at once great sounding, compact, and affordable.
The book-cover, wrap-around sleeve design protects switches and connectors from damage while the 14-gauge steel I-beam construction eliminates stress that could torque the PC board and cause solder joint failure. A full-bottom, no-slip pad provides electrical insulation and mechanical isolation.
Product Specification:
Item Type: Standard DI
Number of Channels: 2-Channel
Active/Passive: Active
Circuitry: Solid-State
Pad: -15 dB
Ground Lift: Yes
Polarity Reverse: No
Low-Cut/High-Pass Filter: No
Audio I/O:
1x Stereo 2RCA Unbalanced Input
1x Stereo 2RCA Unbalanced Thru
2x 1/4″” TS Unbalanced Input
1x 1/8″” / 3.5 mm TRS Unbalanced Stereo Input
2x XLR 3-Pin Balanced Output
Frequency Response: 20 Hz to 20 kHz ±2 dB
Input Impedance: 10 Kilohms
Output Impedance: 600 Ohms
Total Harmonic Distortion/Noise: 0.01% (at -15 dBu Output)
Signal-to-Noise Ratio:
-97 dB
-97 dB
Operating Voltage: 48 V (Phantom Power)
Dimensions: 5 x 3.3 x 2″ / 127 x 84 x 51 mm
Weight: 1.55 lb / 720 g
Shipping Weight: 1.78 lb
Shipping Dimensions (LxWxH): 6.35 x 4.35 x 2.95″
