QSC MP-A20V, Multi-Channel Amplifier 2-Channel
The QSC MP-A20V Multi-Channel Amplifier is a 2-channel amplifier designed for background music and paging applications. The amplifier utilizes Class-D output circuitry with a switch-mode power supply and active PFC. The amplifier provides a Flex Amp circuit topology that enables each pair of channels to deliver up to 400 Watts of total power in any ratio. This Flex Amp technology when combined with the ability to drive any type of output load (4/8 ohms or 70/100V) ensures remarkable flexibility.

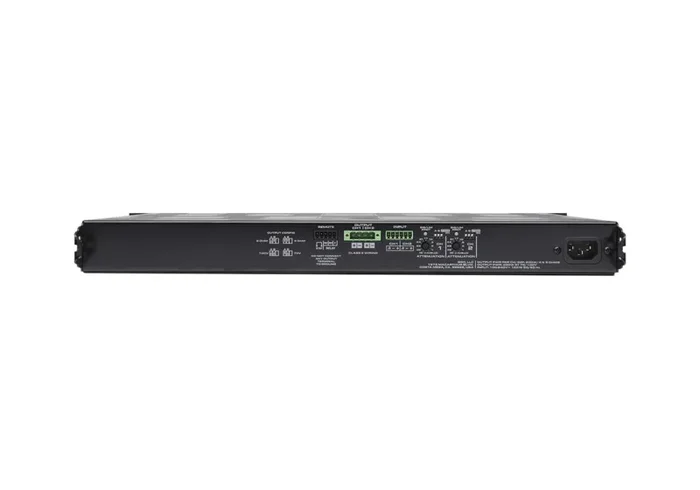

The rear panel offers 2 x 3-pin Euro block inputs, 1 x 4-pin Euro block output, and a single 5-pin Euro block remote input for putting the amplifier into standby mode for fire safety systems and an amplifier status signal on the remote output for system verification. The MP-A20V includes an 80 Hz high-pass filter per channel and ships with Euro block connectors, cable ties, and a power cord.
Product Specifications:
Amplifier:
Number of Channels: 2
Amplifier Power Rating:
4 Ohms / 8 Ohms / 70 V / 100 V: 2x 200 W RMS per Channel
Amplifier Class: Class-D
Load Impedance / Voltage:
Mono/Stereo:
4 / 8 Ohms per Channel
70 / 100 V per Channel
Performance:
Protections: DC Fault, Open Circuit, Overcurrent, RF, Short Circuit, Thermal
Frequency Response: 20 Hz to 20 kHz ±0.5 dB (8 Ohms)
Damping Factor: 100
Input Sensitivity:
Block Line: +4 dBu (Balanced)
Input Impedance:
Block Line: >10 Kilohms (Balanced/Unbalanced)
Max Gain: 30 dB (at 8 Ohms)
SNR: > 103 dB
Distortion:
< 0.01% (at 4 Ohms, at 8 Ohms)
< 1% (at 4 Ohms, at 8 Ohms, Max)
Crossover: Yes
Filters:
1x High-Pass: 80 Hz
Connectivity:
Analog Audio I/O:
2x Block 3-Pin Balanced Line Input
1x Block 4-Pin Speaker Output
1x Block 5-Pin Remote Input
Power:
AC Input Power: Universal: 100 to 240 VAC, 50 / 60 Hz
AC Power Connector: 1x IEC 15 A / NEMA 5-15
Physical:
Display & Indicators: Front Panel:
1x Multi-Color LED (Power/Standby)
1x Multi-Color LED (Limit/Mute/Protect/Signal, per Channel)
Rear Panel: 1x Multi-Color LED (Limit/Protect/Signal/Standby)
Rackmount Size: 1 U
Cooling: 1x Fan (Variable Speed)
Certifications: CE, FCC, RoHS, UL, WEEE
Dimensions: 19.0 x 1.8 x 14.8″ / 482.6 x 45.7 x 375.9 mm
Product Weight: 7.7 lb / 3.5 kg
Shipping Weight: 12.115 lbs.
Shipping Dimensions (LxWxH): 23.3 x 20.4 x 6.5 Inches
