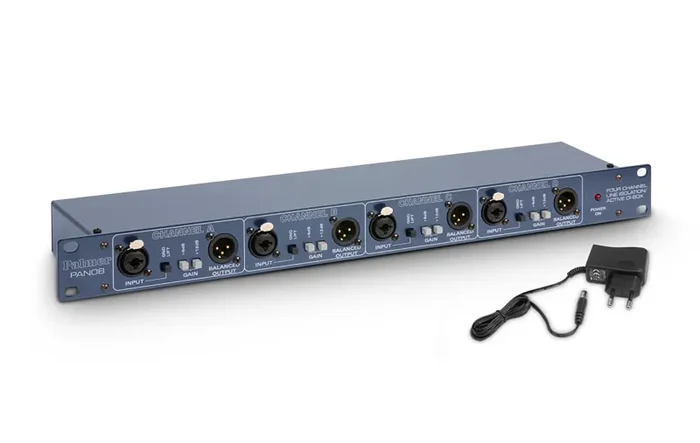

Palmer PAN 08 19″ DI/Line Isolation Box 4 Channels Active

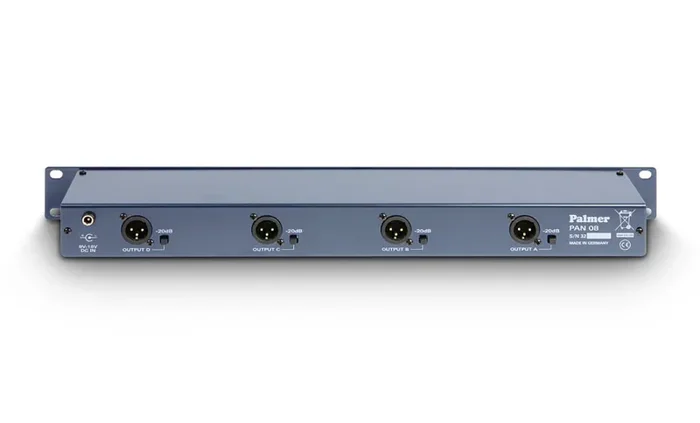

The Palmer PAN08 19″ DI/Line Isolation Box 4 Channels Active is a multifunctional device. Each of the four channels can be used independently as an active DI box, line isolation box or booster. The combination socket input accepts unbalanced and balanced signals. The output has dual transformer balanced XLR jacks (front and rear).
The signal level can be attenuated by 20 dB for microphone inputs, but can also be boosted in three stages by up to 18 dB for LINE inputs if necessary. With an output level of +12 dBu on a load of 600 Ohms with 0.05 % THD / 40 Hz and an output noise level of less than -110 dBu, the unit meets even high professional standards. One special feature that is worthy of mention is battery power. The supply voltage may range from 9 to 18 V. Thus the PAN08 can also be used without mains power outdoors.
Product Specifications
Product Type: DI boxes
Type: Active
Channels: 4
Inputs: 4
Input Connectors: 6.3 mm jack, XLR
Max. input level: +12 dBu
Input Impedance: Balanced: 20k Ohm(s)
Number of Outputs: 8
THRU Outputs/Channel: 0
Output Connectors: XLR
Max. Output Level: +12 dBu
Output Impedance: 600 Ohm(s)
Frequency Response: 20 – 20000
Transformer Balanced: Yes
Ratio: Variabel
Indicators: Power
Controls: 2 x gain, attenuator, ground lift
Power Supply: 9 V DC power supply
Cabinet Material: Sheet steel
Cabinet Surface: Powder coated
Width: 480 mm
Width: 19 “
Depth: 90 mm
Height: 45 mm
Height: 1 U
Weight: 1,59 kg
