Description

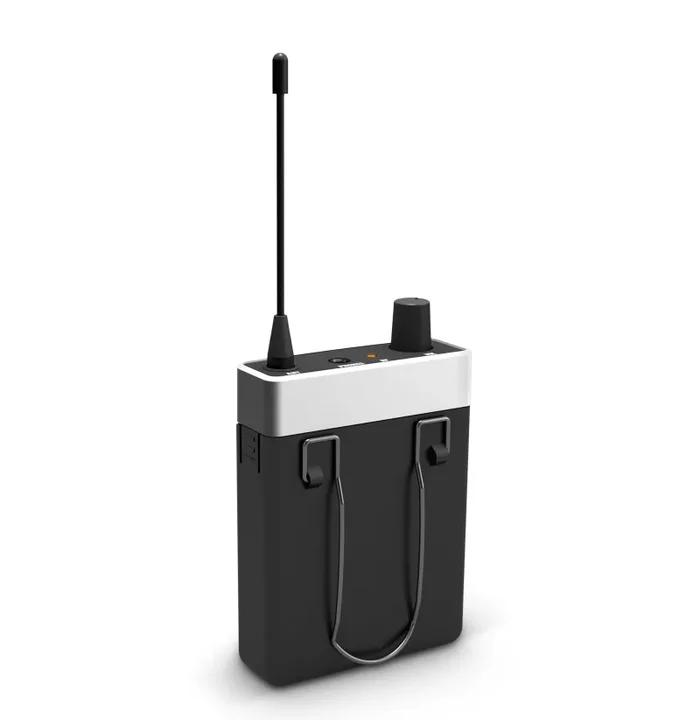

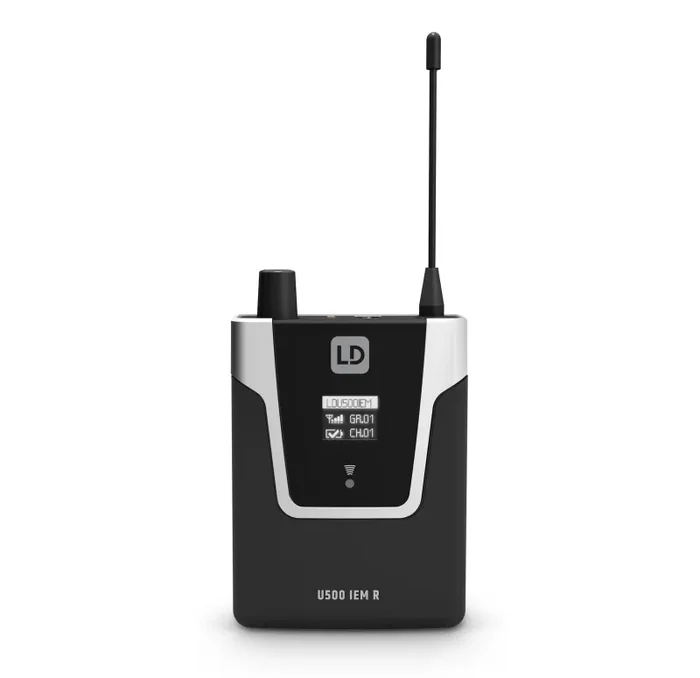

LD Systems U505.1 IEM R, In-Ear Monitoring Receiver – 514-542 MHz
The LD Systems U505.1 IEM R, In-Ear Monitoring Receiver – 514-542 MHz feature 96 selectable channels and 2, 10 or 30 mW switchable RF output power for a transmission range greater than 100 m. Convenient infrared synchronisation of transmitter and receiver permits quick and trouble-free setup. The systems come with high-contrast OLED information displays and allow for individual user name assignment. In addition, you can save 10 custom presets. With a signal-to-noise ratio greater than 95 dB and less than 0,3% THD, the U500 In-Ear Systems’ noise floor is exceptionally low.
Drawing little current only, the U500 IEM Bodypack Receiver operates up to 10 hours on two AA batteries. A volume control allows convenient in-performance monitoring level adjustment. Three selectable squelch levels ensure interference-free operation at all times.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specification:
Product Type: In-ear Monitoring Accessories
Type: Receivers
Transmission Frequency Range: 514 – 542 MHz
Channels: 12
Transmission Method: FM, mono/stereo
Frequency Response: 40 – 16000
Audio Output: 3.5 mm TRS
Minimum Connected Impedance: 16 Ohm(s)
Max. Audio Output Level: 33 mW @ 16 Ohm mW, 80 mW @ 33 Ohm mW
Antenna Connector: Fixed to housing
Controls: Down, On / Off, Up, volume
Indicators: Multifunctional OLED-Display, RF (LED)
Power Supply: 2 x 1.5 V AA
Operating Time: < 10 hours
Width: 64 mm
Height: 100 mm
Depth: 24 mm
Weight: 0,095 kg
Accessories (included): 2 x AA batteries, Antenna
Features: Battery status LED
