Description

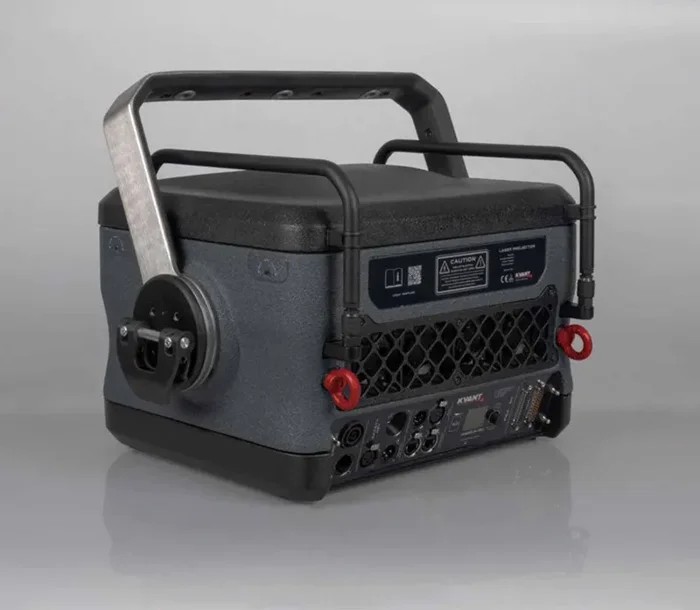

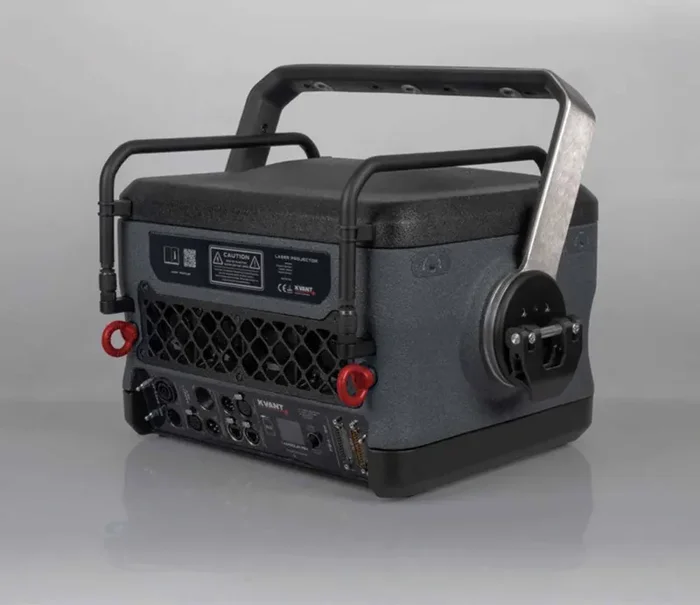

Kvant Lasers Spectrum 34 ROGB, High-End Show Laser with OPSL Orange, LAN, FB4, and Spectrum
The Kvant Lasers Spectrum 34 ROGB, High-End Show Laser with OPSL Orange, LAN, FB4, and Spectrum is the ultimate result of our know-how merged with the latest laser technology and the wishes of laser display professionals worldwide.
Beautifully and practically designed Spectrum laser projectors offer world-class performance, superb beam quality, a wide range of colors, inspiring features to help you succeed, and comprehensive control options for easy integration into existing systems.
The Spectrum is offered in three versions – 34-Watt ROGB, 37-Watt RYGB, and 55-Watt RYGB fitted with either extra Orange or Yellow OPSL module.
Due to our latest breakthroughs in beam-shaping techniques, all these models produce an enormous amount of luminosity, meaning they are seriously bright!
In addition, the rigid foam aluminium chassis with cushioned heatsink, advanced thermal management and ergonomics make working with Spectrums stress less, exciting and fun.
Product Specifications:
Source | Type:
Semiconductor Laser Diode + Opsl
Full-Color ROGB Laser Projector
Suitability: Outdoor Laser Displays
System Control: Fb4-Sk [Ethernet, Artnet, Dmx, Ilda | Pc, Lighting Console or Autoplay]
Compliant With: En 60825-1
Ingress Protection Rating: Ip20, Or Ip54 With the Optional Rain Cover Installed
Weight [Kg]: 31
Size [WxHxD, Mm]: 491 X 310 X 396
Guaranteed Opt. Output: 31.5 Watts
Red | Orange | Green | Blue [W]: 6 | 3 | 14 | 11
Wavelengths [Nm, ±5nm]: 637 | 590 Opsl | 525 | 462+445
Beam Size [Mm]: 6 X 6
Beam Divergence [Mrad]: 0.7 Mrad
Modulation [Khz] | Type: 100 | Analogue
X-Y Scanners: Juno 5 | 40 Kpps @ 8°, Max. Scanning Angle 60° On Both Axes
Power Requirements [V] | Input: 100-240/50-60hz | Neutrik Powercon True1
Max. Power Consumption [VA]: 1200
Operation Temperature [°C]: 10-35, Or -20 To 40 When Installed in The Monsoon Outdoor Enclosure
