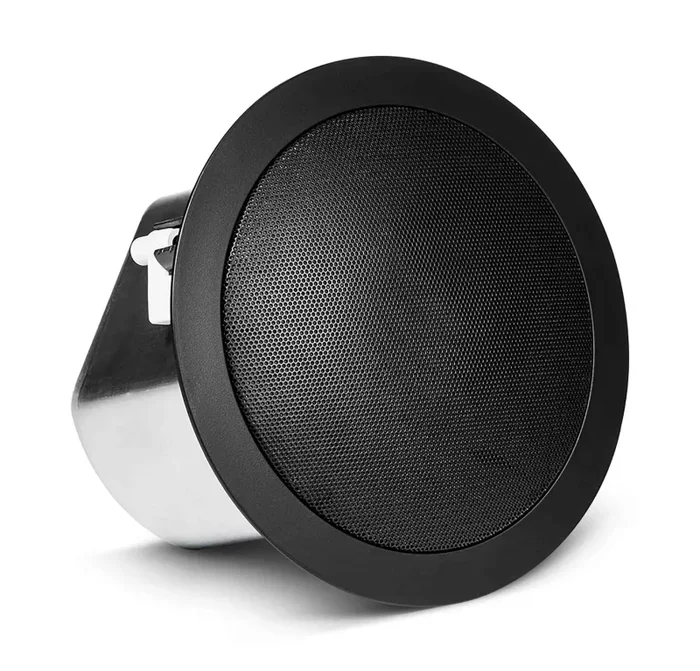

JBL CONTROL 12C/T, Professional Series 3″ 40W Passive Ceiling Loudspeaker

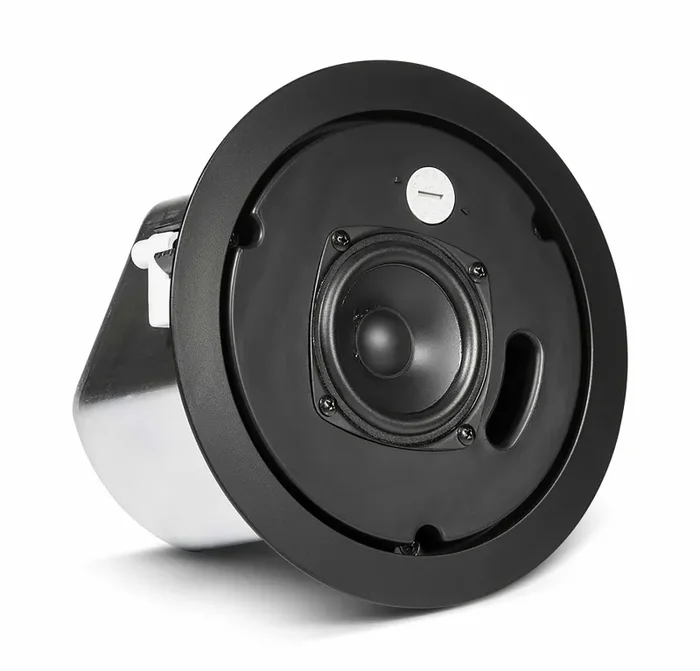

The JBL Control 12C/T is a full-range ceiling speaker consisting of 76 mm (3 inch) wide-bandwidth cone driver mounted in a vented, paintable baffle made of UV resistant UL94-V0 material, with a preattached blind-mount backcan for quick and easy installation.
Product Specifications:
Frequency Range (-10dB): 68 Hz – 17 kHz
Transformer Taps: 15 W, 7.5 W, 3.8 W @ 70V and 100V (& 1.9 W @ 70V only)
Frequency Response (±3 dB): 95 Hz – 15 kHz
Sensitivity: 84 dB (1kHz – 16 kHz)
Coverage Angle: 130° conical
Directivity Factor (Q): 9.8
Directivity Index (DI): 7.4 dB
Maximum SPL (1m): 97 dB (low-impedance, 103 dB peak)
96 dB (top 70V/100V tap)
Impedance: 8 ohms (in direct/bypass 8Ω setting)
Input Connectors: Removable locking 4-pin connector with screw-down terminals. Max wire size 12 AWG (2.5 mm2)
Connector Wiring: Pin 1 = + In; Pin 2 = – In; Pin 3 = + Loop Thru; Pin 4 = – Loop Thru
Strain Reliefs: Strain relief for two cables or two flex conduits via coupled clamping mechanism
Materials: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating. Zinc-plated steel backcan
Dimensions: 196 mm diameter x 138 mm depth from back of baffle
Ceiling Cutout Size: 170 mm (6.7 in) diameter (cardboard cutout template included)
Safety Seismic Attachment: One point, top surface
Weight: 1.6 kg (3.5 lbs, one speaker)
Color: White
Backcan: formed steel (included “blind-mount”)
Baffle/Rim: ABS baffle with UL94-V0 and UL94-5VB flame class fire rating.
