Description

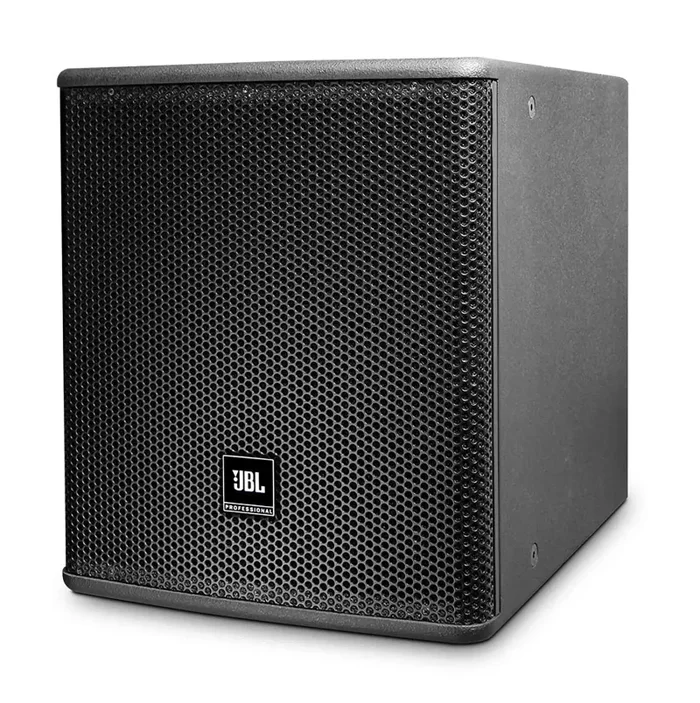

JBL AC115S, 15-Inch High Power Subwoofer System
The JBL AC115S is a high power subwoofer system comprised of one 385 mm (15 in) low frequency driver in a vented, front-loaded configuration for extended bandwidth. The rectangular cabinet is fitted with M10 threaded suspension points for ultimate flexibility. As a part of JBL’s AE Application Engineered Series, a versatile family of loudspeakers for a wide variety of fixed installation applications, AC115S provides a natural low-frequency sound quality.
Product Specification:
Frequency Range (-10dB): 32 Hz – 250 Hz
Frequency Response (±3 dB): 40 Hz – 250 Hz
System Sensitivity (1w @ 1m): 94 dB
Nominal Impedance: 8 ohms
Maximum SPL (1m): 120 dB (126 dB peak)
LF Driver: 1 x 15″ woofer (P/N: 5055679), 385 mm (15 in) driver with 75 mm (3 in) voice-coil
Input Connector: Dual Neutrik NL4MP connectors plus covered barrier trip terminals
Enclosure: 18 mm multi-ply hardwood plywood
Grille: Powder coated, 1.5mm perforated steel, with acoustically transparent black foam backing
Finish: Textured black paint finish and White (-WH).
Suspension Attachment: 12 x M10 threaded suspension points
Dimensions (H x W x D): 483 mm x 419 mm x 600 mm19 in x 16.5 in x 23.6 in
Weight : 24 kg (52.9 lbs)
Nominal LF Driver Impedance: 8 ohms
