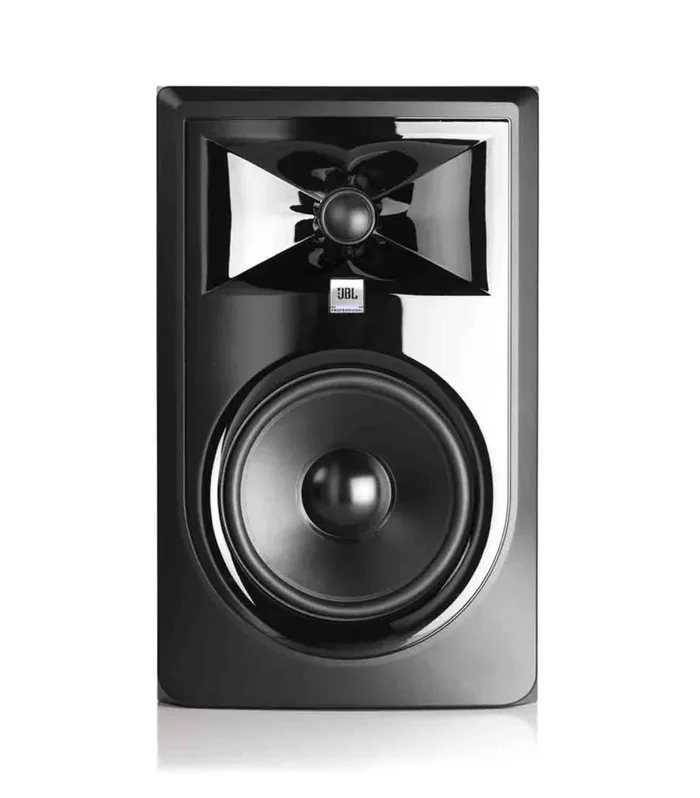

JBL 306P MkII, Powered Two-Way Studio Monitor – 6″
The JBL 306P MkII is a Powered Two-Way Studio Monitor 6″. The next-generation JBL 306P MkII powered studio monitor makes legendary JBL performance available to every studio. With the revolutionary JBL Image Control Waveguide and refined transducers, JBL 306P MkII offers stunning detail, precise imaging, a wide sweet spot, and an impressive dynamic range that enhances the mix capabilities of any modern workspace. Leveraging patented technologies derived from the JBL 7 Series and M2 Master Reference Monitors and sporting a sleek, modern design, JBL 306P MkII delivers outstanding performance and an enjoyable mix experience at an accessible price.

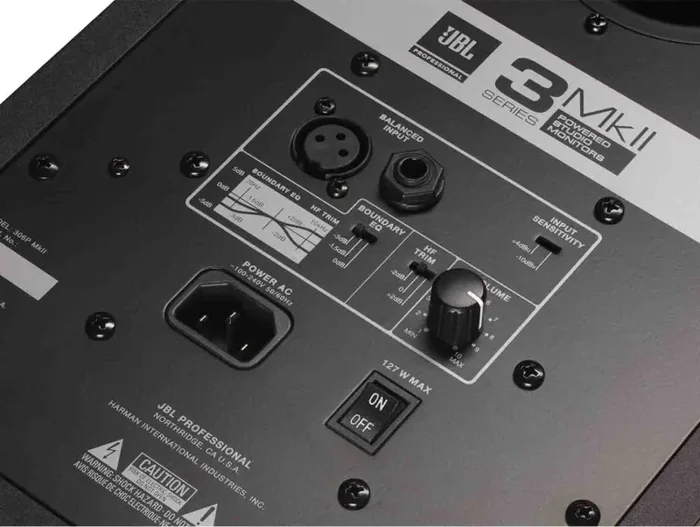

Flexible connectivity with balanced XLR and 1/4″ TRS inputs, +4dBu / -10dBV input-sensitivity switch and adjustable volume control. Engineered to JBL Linear Spatial Reference design criteria for outstanding accuracy in any working space. Patented Slip Stream™ low-frequency port for superior bass performance at all playback levels. Dual integrated, custom Class-D amplifiers provide 112 watts of power for high output and dynamic range. New Boundary EQ settings compensate for low-frequency variants introduced by the environment.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
LF Driver: 165mm (6.5″)
HF Driver Size: 25mm (1″)
HF Driver Type: Soft dome
Crossover: 1425Hz 4th order acoustic Linkwitz-Riley
Input Sensitivity (-10dBV INPUT): 92dB / 1m
Power Configuration: Bi-amplified
HF Driver Power AMP: 56W, Class-D
LF Driver Power Handling: 56W, Class D
Frequency Response (±3 dB): 47Hz – 20kHz
Frequency Range (-10dB): 39Hz – 24kHz
Low Frequency Extension (-10dB): 39Hz
Maximum Continuous SPL: 92dB
Maximum Peak SPL: 110dB
Coverage Angle: 120° x 90°
Input Connectors: 1 x XLR female, 1 x TRS female, balanced
HF Trim Control: -2dB, 0dB, +2dB
Boundary EQ: LF Shelf @ 50Hz: -3dB, -1.5dB, 0dB
AC Input Voltage: 100 – 240VAC (±10%), 50 / 60Hz
Enclosure: Ported
Weight: 13.42 lbs
