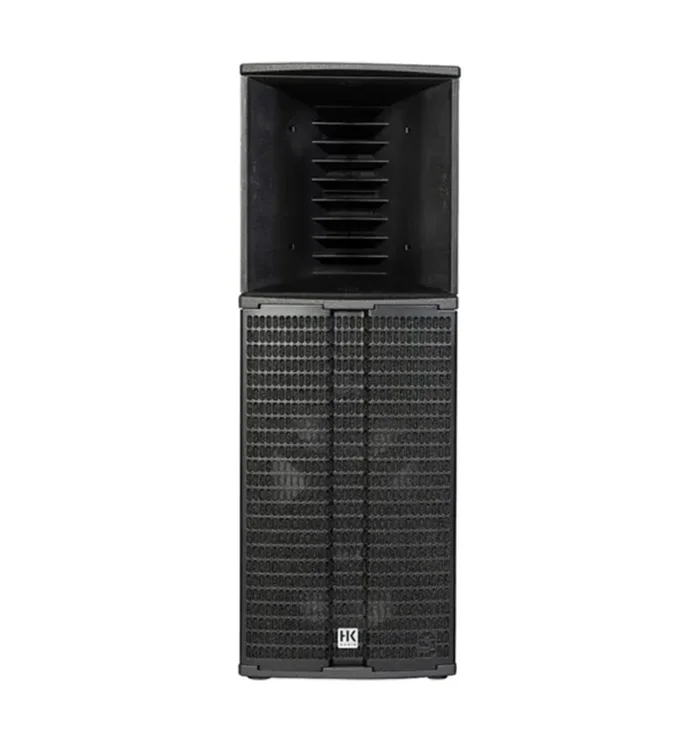

HK Audio L9-210LTA, 2-Way Dual Powered Loudspeaker 1000W – 10 Inch
The HK Audio L9-210LTA 1000W 2-Way 10-Inch Dual Powered Loudspeaker – Black is a high-performance loudspeaker that is designed for use in demanding applications. It features a rotating 60 x 25° horn with a powerful 1.4″ HF driver and two vertically arranged 10″ woofers. The HF driver is directed by a carefully calculated multicell waveguide, which achieves remarkably high efficiency.
The rear panel of the LINEAR 9 210 LTA features a pair of RJ45 network ports that connect to the internal speaker DSP as well as four factory presets. For I/O, the speaker features a combo XLR-1/4″ input and XLR output. A DSP XLR output provides a networked DSP-controlled channel for non-network speakers.
The LINEAR 9 210 LTA is particularly impressive in applications where the sound requirements demand the creation of a horizontal cluster or straightforward flying capabilities. The speaker’s rotating horn allows it to be deployed in a variety of configurations, and its network port makes it easy to control and manage remotely.
Product Specifications:
Configuration: Active 2-Way
Enclosure Type: Bass-Reflex Loudspeaker
Total Power Capacity
1000 W RMS
2000 W Program
4000 W Peak
HF Driver: 1 x 1.4″ / 3.6 cm Rotatable Horn
LF Driver: 2 x 10″ / 254 mm Woofer
Frequency Range: 84 Hz to 20 kHz -10 dB
HF Driver: 1 x 1.4″ / 3.6 cm Rotatable Horn
HF Voice Coil: 2.5″ / 6.3 cm
MF Driver: None
LF Driver: 2 x 10″ / 254 mm Woofer
LF Voice Coil: 2.5″ / 63.5 mm
Frequency Range: 84 Hz to 20 kHz -10 dB
Frequency Response: 105 Hz to 19 kHz ±3 dB
Maximum SPL: 142 dB (Half-Space)
Coverage Angle: 60° H x 25° V
Max Input Level: +20 dB
Gain Range: -12 dB to +6 dB
Protections: Signal Limiter
Mounting: Pole Socket (Dual Angle, Bottom)
Handles: 1 x Each Side
Construction Material: Metal Grille, Wood
Dimensions: 13.4 x 37.8 x 15.4″
Weight: 72.8 lbs
