Description

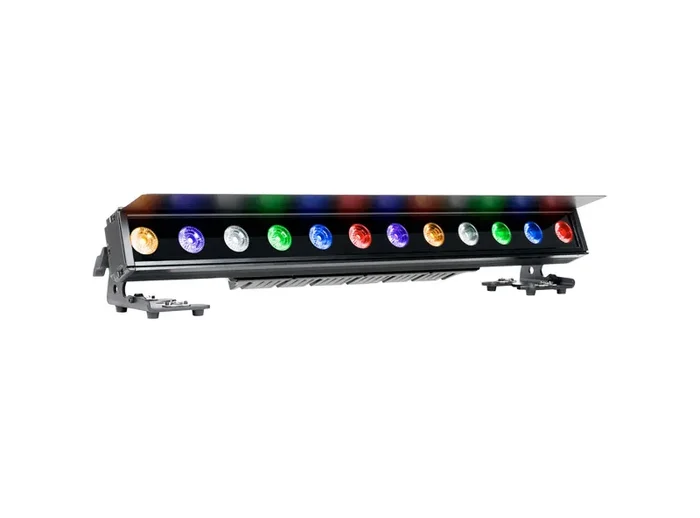

Elation SIXBAR 1000 IP, 12 x 12-Watt RGBAW+UV LED IP65 Batten Fixture
The Elation SIXBAR 1000 IP, Features (12) 12W 6-IN-1 RGBAW+UV LEDs, 25° beam angle, pixel control, variable dimming curve modes, strobe and chase effects, a UV wavelength of 395nm, RDM (remote device management) protocol support, IP rated DMX and power in/out connections, LCD menu display with 4 touch button control panel, dual adjustable rigging/floor stand brackets, glare shield and frost filter included, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, 145W max power consumption, and a multi-voltage universal auto switching power supply (110-240v).
Product Specifications:
Source:
(12) 12W 6-in-1 RGBAW+UV LEDs
100,000 Hour Average LED Life
Photometric Data: 7,149 LUX 664 FC @3.3’ (1m) (25° Full ON)
Effects:
Pixel Control
Strobe and Chase Effects
Variable and Selectable Dimming Curves
Control / Connections:
(8) DMX Channel Modes – (6 / 7 / 11 / 13 / 36 / 72 / 75 / 79)
4 Button Touch Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX In/Out
IP65 Locking Power Cable In/Out
With Wired Digital Communication Network
Size / Weight:
(Dimensions without Glare Shield)
Length: 33.6” (853mm)
Width: 5.6” (141.4mm)
Vertical Height: 4.7” (120.5mm)
Weight: 19.0 lbs. (8.6 kg)
Electrical / Thermal:
AC 110-240V – 50/60Hz
145W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)
UV Wavelength: 395nm
Approvals / Ratings: CE | cETLus | IP65
Included Items:
IP65 Locking Power Cable
Glare Shield
(2) Lens Filters
Optional Accessories: 8050000053 – Omega Bracket
