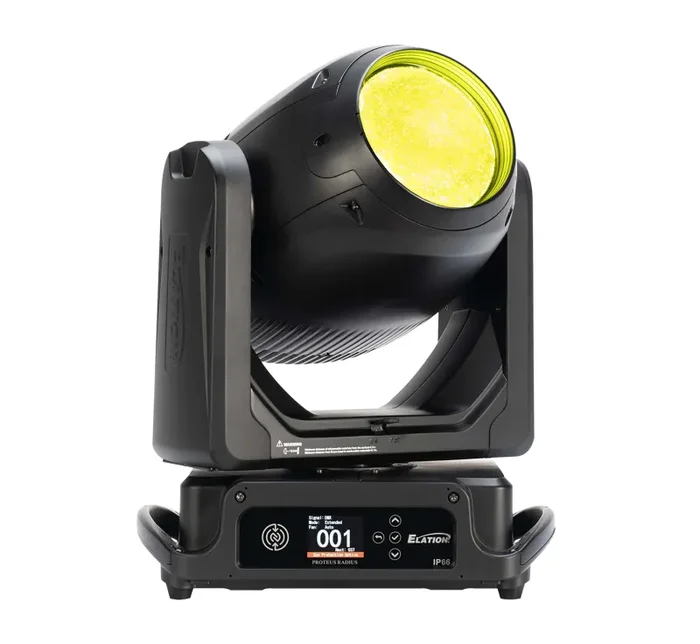

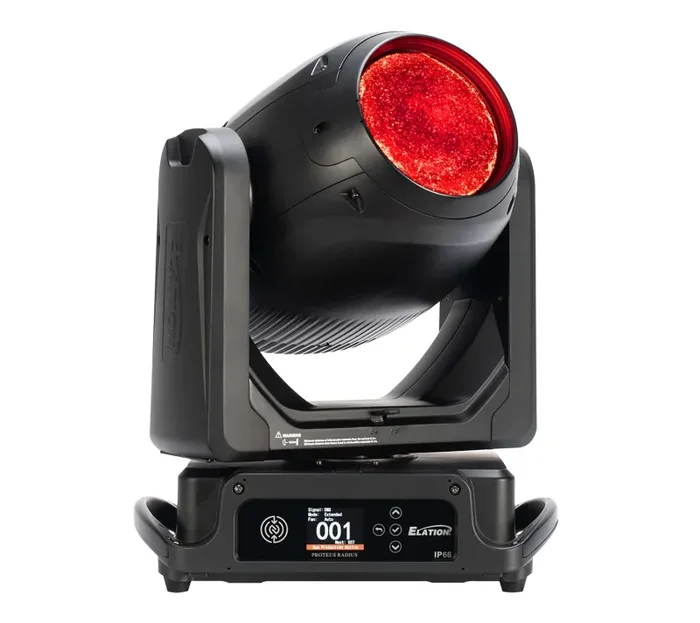

Elation Proteus Radius, Solid State Phosphor-Converted Beam FX Fixture – 100 Watt
The Elation Proteus Radius, Solid State Phosphor-Converted Beam FX Fixture – 100 Watt is a high Intensity Beam FX fixture. Utilizing an efficient 100W Solid State Phosphor-Converted (SSPC) light engine the fixture projects narrow intense beams with incredible power at long distances.
Incredibly fast 360 Degree of Movement on both axes allow impactful beam animations, while the CMY color mix, gobos, prisms and frost options allow the designer to compose an endless array of stunning aerial effects.
Product Specifications:
Source:
100W Solid State Phosphor-Converted (SSPC) Light Engine
6000K, CRI 70
10,000 Hour Lamp Life
Photometric Data:
2700 Lumen Total Fixture Output
Beam Angle 0.9˚
Effects:
Dual Frost
4 Prisms on Dual Planes
CMY Color, Gobo, Prism Macros
Motorized Focus
Digital Shutter and Strobe
Color:
Full CMY Color Mixing System
25 Position Color Wheel
Gobos:
2 Gobo Wheels
13 Interchangeable-Rotating / Indexing Metal Gobos
24 Static-Stamped Metal Gobos
Control / Connections:
2 DMX Channel Modes
(6) Button Touch Panel
Full Color 180° Reversible LCD Menu Display
DMX, RDM, Art-Net and sACN Protocol Support
IP65 5pin DMX In/Out
IP65 RJ45 Ethernet In/Out
IP65 Locking Power In
Size / Weight:
Length: 15.6” (395mm)
Width: 13.5” (343mm)
Height: 20” (509mm)
Weight: 41.9 lbs. (19kg)
Electrical / Thermal:
AC 100-240V 50/60Hz
300W Max Power Consumption
-4°F to 113°F (-20°C to 45°C)
Approvals / Ratings: CE | cETLus | IP66 | FCC
