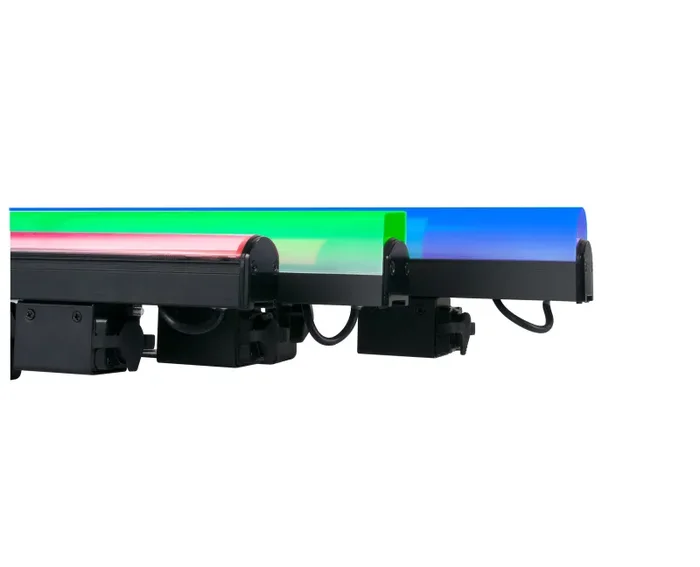

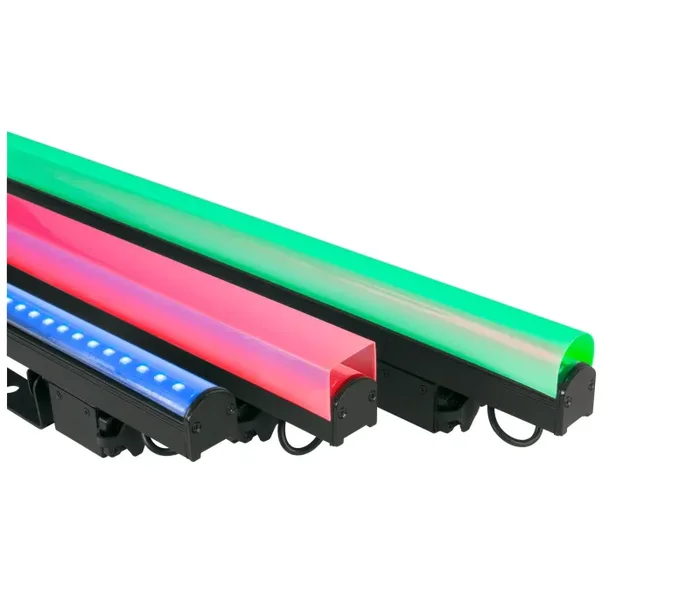

Elation PIX225, Professional Led Pixel Bar 60IP – Outdoor IP65 Rated
The Elation PIX225 Professional Led Pixel Bar 60IP – Outdoor IP65 Rated featuring (60) tri-color RGB SMD LEDs with a 16mm pixel pitch, a refresh rate of 44,000Hz for flicker free operation for broadcast TV and FILM applications, and measures 1 meter (3.3 feet) in length. Each pixel bar is housed in a lightweight IP65 rated aluminum housing featuring magnetic end caps which allow seamless end-to-end pixel spacing, an integrated adjustable mounting bracket, a safety cable loop, and includes square and rounded frosted lens attachments.
Easy and versatile control options are handled by the Pixel Driver 4000™ and Pixel Driver 1000IP™ (sold separately) which provides simple on-board manual dimming and strobe control, and full pixel mapping control of 4,080 max pixels via Kling-Net and 680 max pixels via Art-Net and sACN (streaming ACN) protocols. Power and data are supplied via proprietary IP rated 4pin combo cables (sold separately) which are available in lengths from 2 to 50 meters.
Product Specifications:
Source:
0.2 SMD RGB 3-in-1 LEDs
Color Resolution: 8 bits per color (24 bits per pixel)
Viewing Angle: 120 x 120 degrees
Pixels Per Meter: 60 pixels
Pixel Pitch (pixel center-to-center) 16mm
PWM (Pulse Width Modulation): 44,000Hz
Connections: 4pin Power/Data In/Out
Electrical:
Max Power Consumption: 12W
Product Dimension:
Length: 39.10”
Width: 2.6”
Height: 4.2”
Product Weight: 3.8 lbs.
