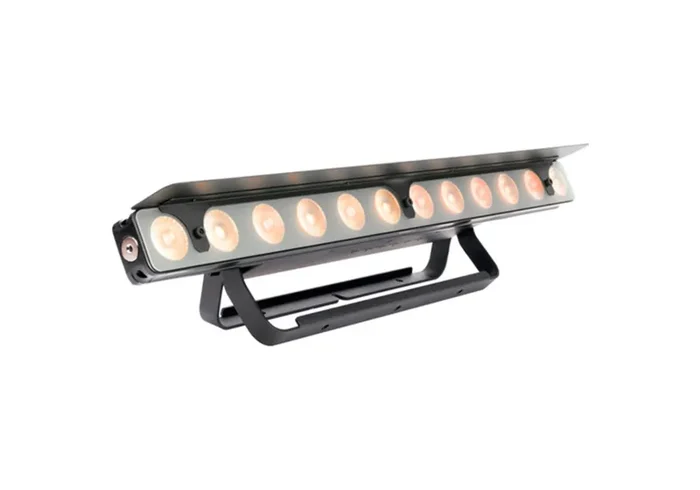

Elation DTW BAR 1000 High-performance variable-white LED batten
The Elation Professional DTW BAR 1000 is a high-performance variable-white LED batten designed for professional stage, broadcast, and architectural lighting applications. It features advanced dim-to-warm technology, precise color temperature control, and pixel-level effects, making it a versatile fixture for creating dynamic lighting environments. Functions such as pixel control, variable dimming curve modes, strobes, and chase effects make for versatile programming options. In addition to DMX, Art-Net, Kling-Net, and RDM (Remote Device Management) protocols are also supported. Along with DMX, RJ45, and power in/out connections, it also features an LCD menu display with 4-button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield (included), flicker-free operation for TV and film, and a multi-voltage universal auto-switching power supply.
Product Specifications:
Light Source: 12 x multi-chip CW/WW/A LEDs, 12 W
Life Expectancy: 100,000 hours
Illuminance:
28° (Full On): 597 fc / 6,425 lux @ 3.3′ (1 m)
38° (Full On, Frost): 297 fc / 3,196 lux @ 3.3′ (1 m)”
Beam Angle: 28°
Field Angle: 33°
Dimmer: Electronic
Dimmer Curves: 5
Color Mixing: CW/WW/A, Standalone
Color Temperature: 2700 – 6500K
Built-In Programs: Yes
Master/Slave Support: Yes
Zone Control: 1 or 12 zones
Protocols: DMX, RDM, Art-Net, Kling-Net
DMX Connectors:
Input: XLR 3-pin, XLR 5-pin
Output: XLR 3-pin, XLR 5-pin
Data Connector:
Input: etherCON
Output: etherCON
DMX Channel Modes: 1, 2, 3, 5, 6, 7, 10, 12, 14, 36, 41, 45 channels
Input Voltage: 110 to 240 VAC, 50/60 Hz (auto-ranging)
Power Connectors:
Input: powerCON
Output: powerCON
Power Linking:
110 V: 7 x units
240 V: 15 x units
Power Consumption: 120 W (maximum)
Display/Controls: LCD display with 4-button control panel
Working Position: Vertical, inverted, horizontal
Operating Temperature: -15 to 45°C (5 to 113°F)
Certifications & Approvals: CE, cETLus
IP Rating: IP20
Product Dimensions: 35.4 x 8.1 x 6.1″ (90 x 20.6 x 15.5 cm)
Product Weight: 14 lbs. (6.4 kg)
Shipping Weight: 18.25 lbs.
Shipping Dimensions (LxWxH): 37 x 9 x 8 Inches
