Description
Elation Colour 5 Profile, RGBMA LED Ellipsoidal – 180 Watt

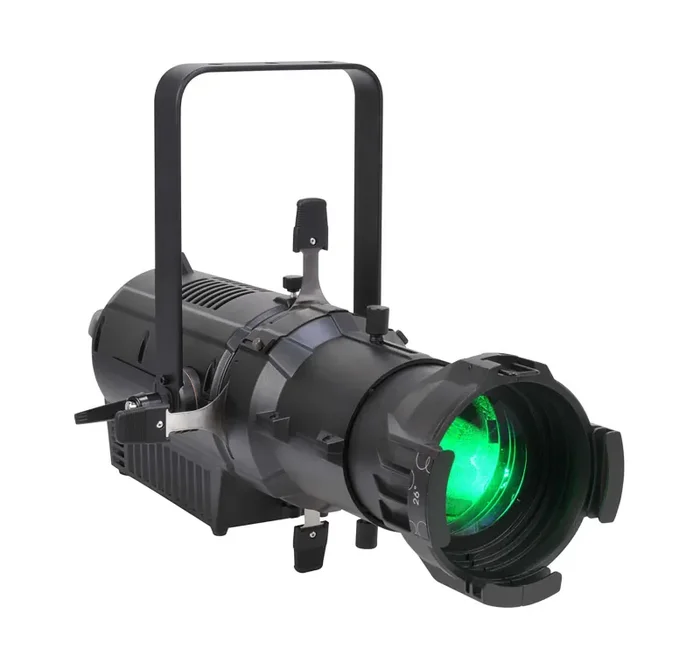

The Elation Colour 5, Profile Ellipsoidal features a 180W RGBAM (Red, Green, Blue, Amber, Mint) LED engine, >94CRI, 4,100 total lumens, with 19°, 26°, 36°, and 50° interchangeable lens options (sold separately), (4) blade manual framing shutters, manual focus, supports B size metal HT transparency gobos, DMX controlled electronic strobe, dimming, and dimming curves, flicker free operation for TV and FILM, adjustable refresh frequency and gamma brightness, 5pin DMX and Locking Power Cable in/out connections, (4) button LCD control display panel, an integrated rigging yoke, quiet fan cooling, and a multi-voltage universal auto switching power supply (100-240v).
Product Specifications:
Source:
180W RGBAM (Red/Green/Blue/Amber/Mint) LED Engine
50,000 Hour Average LED Life
LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
Photometric Data:
>94CRI 4,100 Total Lumens
(*with 26° lens)
Effects:
Electronic Strobe and Dimming
Variable Dimming Curve Modes
Gobos:
Supports “B” Size Metal, HT Transparency Gobos
Gobos and Holder not included.
Control / Connections:
(5) DMX Channel Modes (5 / 6 / 8 / 13 / 19)
Adjustable Refresh Rate (900-1500, 25,000 Hz)
Adjustable Gamma Brightness (2.0, 2.2, 2.4, 2.8)

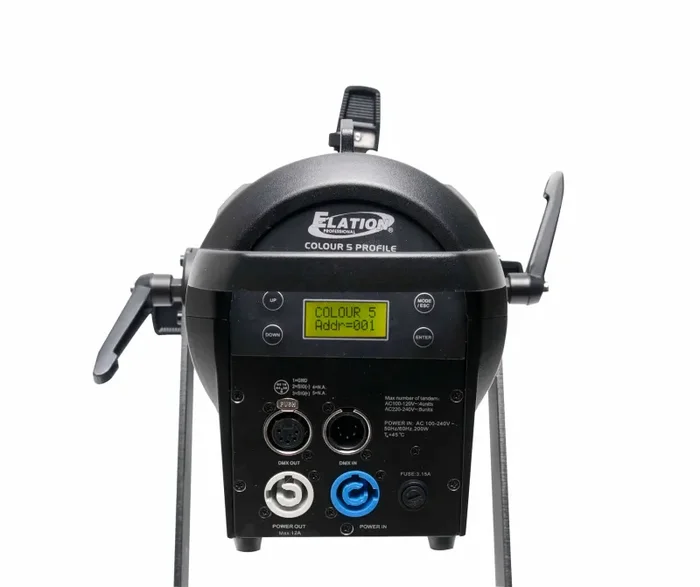

4 Button Control Panel
LED Menu Display
5pin DMX In/Out
Locking Power Cable In/Out
With Wired Digital Communication Network
Size / Weight:
Length: 24.3” (618mm) / 26.5” (674mm) Fully Extended
Width: 12.2” (310mm)
Vertical Height: 15.7” (398mm)
Weight: 21.0 lbs. (9.5 kg)
Electrical / Thermal:
Quiet Fan Cooling
AC 100-240V – 50/60Hz
225W Max Power Consumption
Power Linking: 4pcs Max @120V / 8pcs Max @240V
14° to 113°F (-10° to 45°C)
BTU/hr (+/- 10%) 767.25
Approvals / Ratings: CE | cETLus | IP20
Included Items:
(1) Locking Power Cable
(1) 5pin DMX Cable
Optional Accessories:
PHD019 – Profile High-Definition Lens 19°
PHD126 – Profile High-Definition Lens 26°
PHD236 – Profile High-Definition Lens 36°
PHD350 – Profile High-Definition Lens 50°
