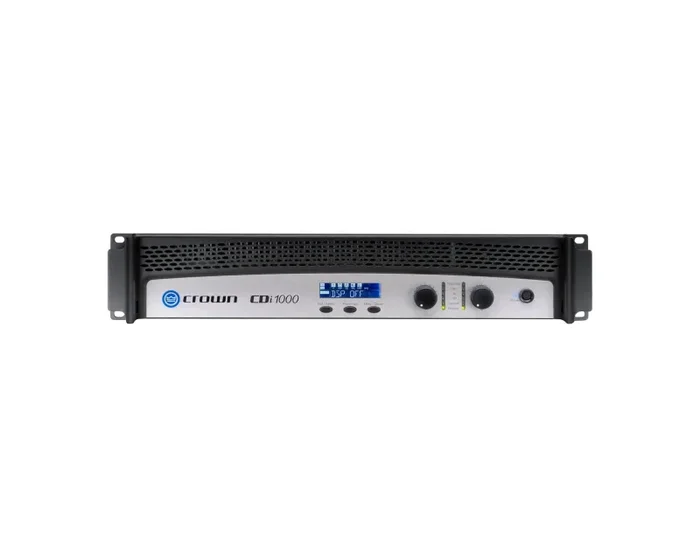

Crown CDI-1000 Two-Channel Power Amplifier – 500 Watt
The Crown CDi 1000 Two Channel Commercial Amplifier is a rugged, lightweight commercial power amplifier designed for dual-channel or bridge-mono operation in installed audio applications such as restaurants, retail stores, warehouses, offices, and more. The CDi 1000 provides accurate, uncolored sound with low distortion for excellent music and vocal reproduction. It delivers 500W per channel at 4 Ohms, and supports multiple low-impedance configurations, as well as 70V and 140V constant-voltage systems. The switch-mode universal power supply enables safe operation across the globe.
Advanced protection circuitry guards against shorted outputs, open circuits, DC, mismatched loads, general overheating, high-frequency overloads and internal faults. The CDi 1000 also has integrated DSP presets for adjustable crossover frequencies, EQ, limiting, compression, delay, and a subharmonic synthesizer. A backlit LCD displays relevant information. The removable Euroblock inputs and barrier strip outputs accommodate a variety of system setups.
Product Specifications:
Amplifier:
Number of Channels: 2
Amplifier Power Rating:
2 Ohms: 700 W per Channel
4 Ohms:
500 W per Channel
1400 W Bridged
8 Ohms:
275 W per Channel
70 V: 500 W per Channel
140 V: 1000 W Bridged
Load Impedance / Voltage:
Parallel: 2 / 4 / 8 Ohms
Bridged/Mono: 4 / 8 / 16 Ohms
Performance:
Frequency Response: 20 Hz to 20 kHz +0/-1 dB
Damping Factor: > 500
Input Sensitivity: 1.4 V (at 8 Ohms)
Input Impedance:
20 Kilohms (Balanced)
10 Kilohms (Unbalanced)
Max Gain: 30.5 dB (at 8 Ohms)
SNR: 100 dBA (at 8 Ohms)
THD: < 0.5%
Crosstalk: > 70 dB (Below Rated Power, 20 Hz to 1 kHz)
Connectivity:
Analog Audio I/O:
2x Block 3-Pin Input (Detachable)
Barrier Strip 4-Pin Output
USB I/O: 1x USB-B
AC Input Power: 100 to 240 VAC, 50 / 60 Hz
AC Power Connector: IEC / NEMA 5-15
Current Consumption: 6.8 A
Power Consumption: 38 W (Idle)
Operating Conditions: 32 to 104°F / 0 to 40°C up to 95% Humidity
Dimensions: 19.0 x 3.5 x 12.3″ / 48.3 x 8.9 x 31.1 cm
Weight: 19 lbs. / 8.6 kg
Shipping Weight: 21.7 lbs.
Shipping Dimensions (LxWxH): 22.25 x 19 x 7″
