Description

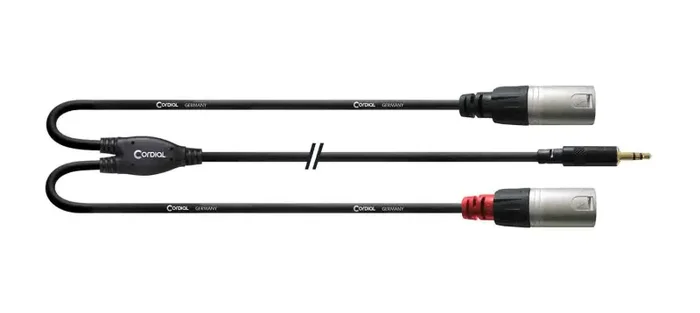

Cordial CFY WMM, 3.5 mm Stereo Jack Plug to 2x Male XLR Connectors Y-Adapter Cable

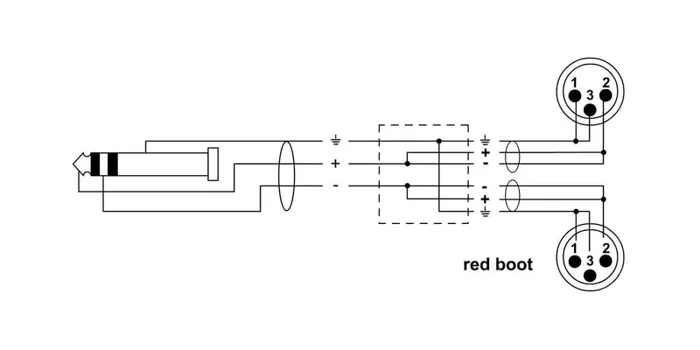

The Cordial CFY WMM is a 3.5 mm Stereo Jack Plug to 2x Male XLR Connectors Y-Adapter Cable. The Y audio cable is used to transmit the audio signal from 1x 3.5 mm stereo jack plug to 2x male XLR connectors, e.g., to connect a smartphone or notebook directly to certain FOH consoles, to specified power amplifiers or to active speakers. The split at both ends of the cable is approx. 15 cm long. A red and a black marking directly on the XLR connectors facilitate right/left identification. As usual, the especially sturdy metal connectors (REAN made by Neutrik) are hand soldered. The wire cross section is 2x 0.22mm².
Product Specifications:
Cable: Essentials Cable 2
Jacket: PVC
Cable Assign: WMM
Connector Brand: REAN
Plugs:
1 1/8″ Plug stereo
2 XLR male 3-pole
Conductor Area: 0.22 mm²
AWG: AWG 24
Composition of Conductor: 28 x 0.10 mm
Conductor Resistance: 80 Ohm/km
Shielding: Spiral Shield
Capacity cond.-cond. (pF/m): 80 pF/m
Category: Microphone
Diameter: 4.3 mm | 1.69 in
