Cordial CFD DFT, D-SUB 25 Pin Male to XLR 3-Pin Female Multicore Cable
The Cordial CFD DFT is a D-SUB 25 Pin Male to XLR 3-Pin Female Multicore Cable. If you require a multicore cable D-Sub 25 pin male to XLR 3-pin female which is compatible with the analog Tascam DSUB25 specification (DA 88) you should turn to our CFD DFT cable. The metal housing of the connectors is nickel-plated. The corresponding bulk cable is the CMD 8, which transmits analog as well as DMX signals excellently and features spiral tinned copper shields and an additional tinned overall shield.
Product Specifications:

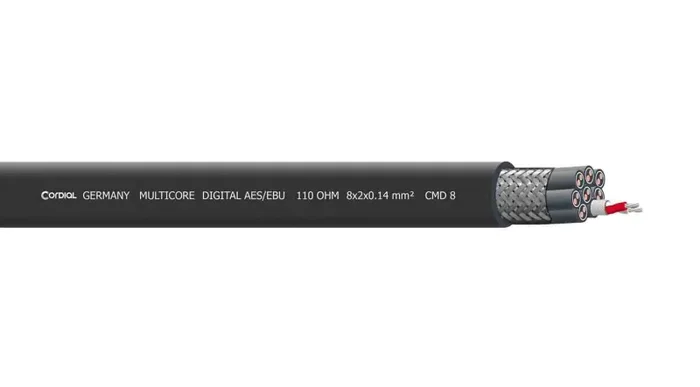

Cable: CMD 8
Jacket: PVC

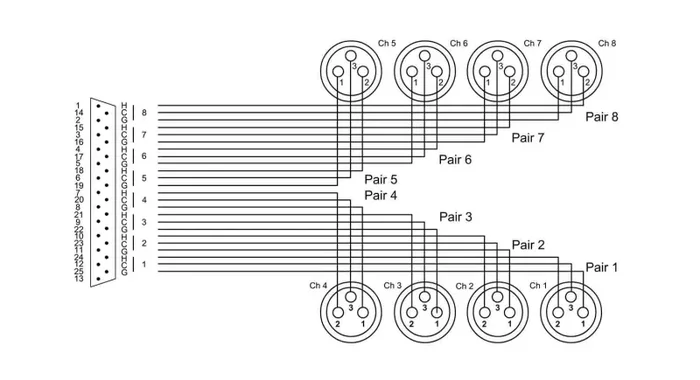

Cable Assign: DFT
Connector Brand: REAN SILVER
Plugs:
1 D-Sub
8 XLR female 3-pole
Conductor Area: 0.14 mm²
AWG: AWG 26
Composition of Conductor: 18 x 0.10 mm
Material: Tinned Copper
Conductor Resistance: 140 Ω/km
Shielding: Tinned Copper Braided Screen (>80% covering)
Capacity cond.-cond. (pF/m): 45 pF / m
Category: DMX-AES/EBU-110 Ohm
Diameter: 12.5 ± 0.5 mm
Conductor Isolation: PE
