Description

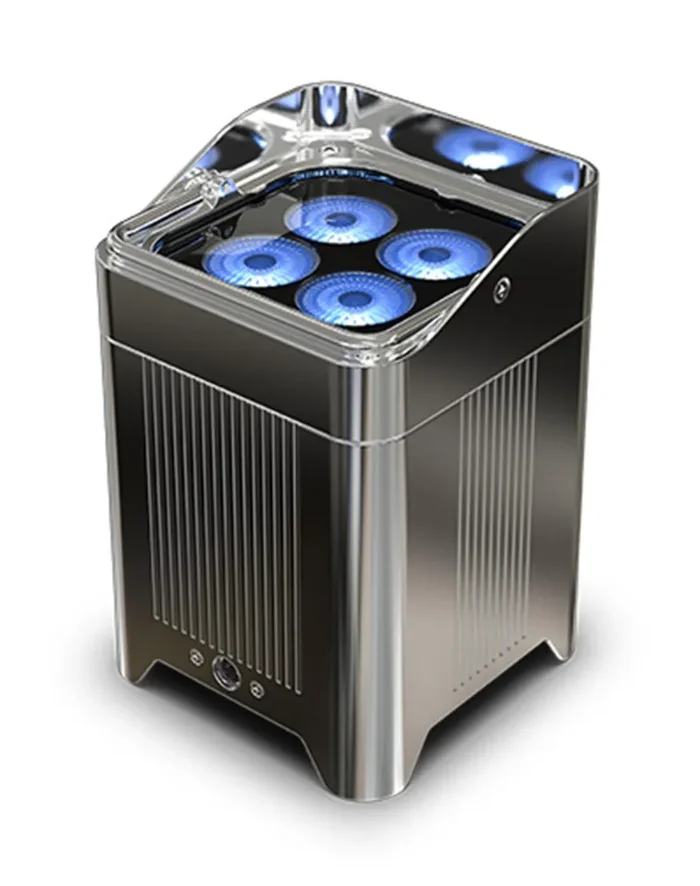

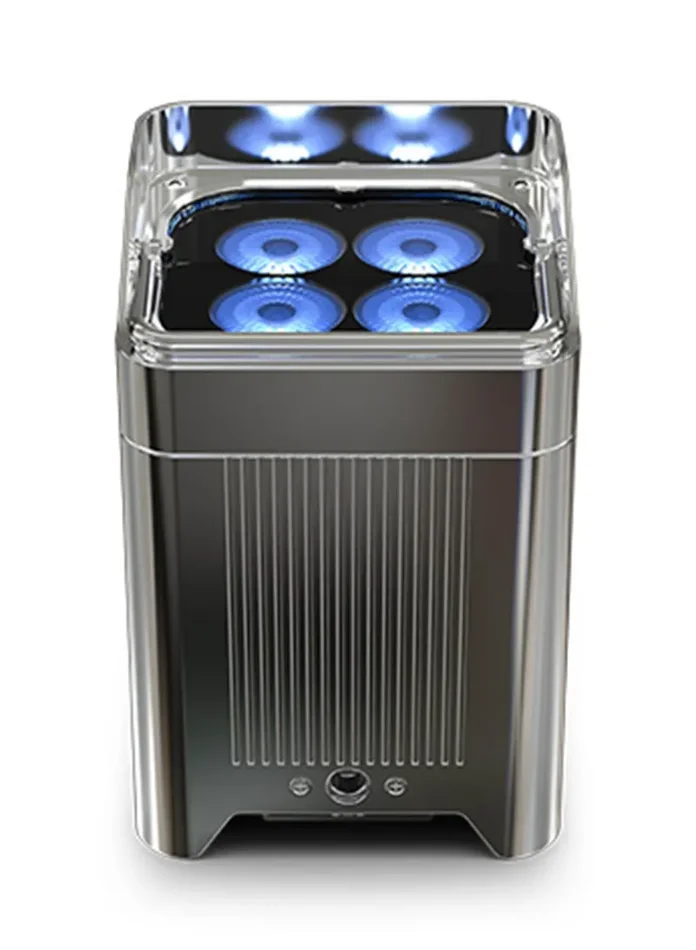

Chauvet Pro Well Fit 6-Pack Led Uplight Fixture with Charging Case
The Chauvet Pro Well Fit 6-Pack Led Uplight Fixture with Charging Case is must for event lighting. A discrete, high powered LED up-lighter, this small battery powered wash light comes in a reflective chrome housing designed to blend into any decor. WELL Fit can be controlled wirelessly either by W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. All of these features combined make the WELL Fit a perfect solution for quick setup and distinguished accent lighting.
What’s Included
WELLFITX6
(6) WELL FIT
(1) Charging case
(1) IR remote
(1) powerCON power cable with Edison plug
(1) QRG
(1) Warranty card
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Optical
Light Source: 4 LEDs (quad- color RGBA) 10 W, (720 mA), 50,000 hours life expectancy).
Beam Angle: 10.8°
Field Angle: 19.6°
Illuminance (19.6°): 988 lux @ 5 m
PWM Frequency: 1200 Hz
Dynamic Effects
Color Macros: 5 macros
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 24 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 5.4 x 5.7 x 8 in (138 x 145 x 202 mm)
Dimensions (charging case): 20.4 x 18.5 x 21.2 in (519 x 470 x 540 mm)
Weight (single unit) 7.4 LB (3.4 kg)
Weight (charging case): 103.6 lb (47 kg)
Exterior Color: Chrome
Housing Material: Aluminum die-cast
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: W-DMX™, IRC
DMX Channels: 3, 4, 6 or 10
Modes/Personalities: 5 personalities (4Ch, 6Ch, 10Ch, HSV, HSI)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 4 units @ 120 V; 7 units @ 208 V; 8 units @ 230 V
Power and Current (single unit charging): 60 W, 0.641 A @ 100 V, 60 Hz
Power and Current (charging case): 345 W, 3.323 A @ 100 V, 60 Hz
Power and Current (single unit charging): 58 W, 0.535 A @ 120 V, 60 Hz
Power and Current (charging case): 334 W, 2.750 A @ 120 V, 60 Hz
Power and Current (single unit charging): 51 W, 0.363 A @ 208 V, 60 Hz
Power and Current (charging case): 322 W, 1.584 A @ 208 V, 60 Hz
Power and Current (single unit charging): 54 W, 0.342 A @ 230 V, 50 Hz
Power and Current (charging case): 317 W, 1.422 A @ 230 V, 50 Hz
Power and Current (single unit charging): 54 W, 0.335 A @ 240 V, 50 Hz
Power and Current (charging case): 311 W, 1.363 A @ 240 V, 50 Hz
Battery
Battery type: Lithium Ion
Rechargeable: Yes
Battery Charge Time: 5 hours
Battery Life: (all on) 8 hours, (single LED) 20 hours
Battery Power: 14.8 V, 11 Ah
Certifications / Qualifications
CE, UKCA
IP Rating: IP65, temporary outdoor/wet use
Optional Accessories
Clamps
WDMX MicroT-1 TRX G6
