Description

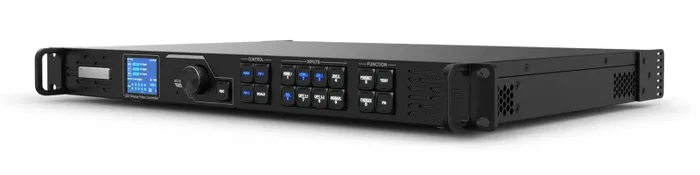

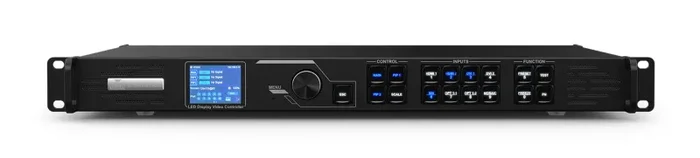

Chauvet Pro VIP Drive 10-5 Nova All-in-One Video Wall Processor Compatible with NovaStar Video Panel
The Chauvet Pro VIP Drive 10-5 Nova All-in-One Video Wall Processor Compatible with NovaStar Video Panel is a streamlined all-in-one video processor that outputs signal to any NovaStar video panel. The integrated 3-layer Scaler supports full screen, pixel to pixel, and custom scaling options. VIP Drive 10-5 NOVA can automatically scale to the wall detected and detect connected video panels and strips in the Smart-LCT mapping software without the need to manually input panel/strip resolution. The powerful, standalone mapping configures most video walls without a computer, and the custom mapping function is fast and easy with on-screen visual feedback. With 10 Ethernet video outputs, VIP Drive 10-5 Nova supports 4K at 6.55 million LED resolution.
Product Specifications:
Power Connection: Edison (local) plug to IEC
Power Input: IEC
Cable Length (power): 5 ft (1.5 m)
Video Input: HD-SDI (480i, 576i, 720p, 1080i/p)
Video Input: SFP-LC Fiber optical (2) (SFP fiber module not included)
Genlock Input: Blackburst via locking BNC
Genlock Loop Output: Blackburst via locking BNC
Video Output: DVI Loop
Video Output: SDI Loop
Video Output: HDMI 1.4 Loop
Video Output: HDMI 1.3 (Preview)
Video Output: SFP-LC Fiber optical (2) (SFP fiber module not included)
Audio: Input/output (2.5mm) TRS, Stereo
Video Output: RJ45 Ethernet (10)
Linking Connection: USB 2.0 (Type A to Type B)
Software Connection: Rear USB /RJ45 Ethernet
Backup/update Connection: Rear USB/RJ45 Ethernet
Control Protocol: NovaStar
Maximum Supported Resolution: 3840 x 2160
Maximum Supported LEDs (Per Port @ 60Hz): 655,360
Maximum Supported LEDs: (Total 10 Ports @ 60Hz) 6,553,600
Remote Control: NovaLCTMars PC software via rear USB (1), RJ-45 Ethernet port
Color Space Supported (DVI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
Color Space Supported (HDMI): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
Color Space Supported (OPT 1): RGB 4:4:4, YCrCb 4:4:4, YCrCb 4:2:2
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 150 W, 1.25 A @ 120 V, 60 Hz
Power and Current: 150 W, 0.72 A @ 208 V, 60 Hz
Power and Current: 150 W, 0.65 A @ 230 V, 50 Hz
Exterior Color: Black
Housing Material: Aluminum alloy
Rackmount: 1U
Dimensions: 19 x 13.8 x 1.97 in (483 x 351.2 x 50.1 mm)
Weight: 9 lb (4.08 kg)
