Description

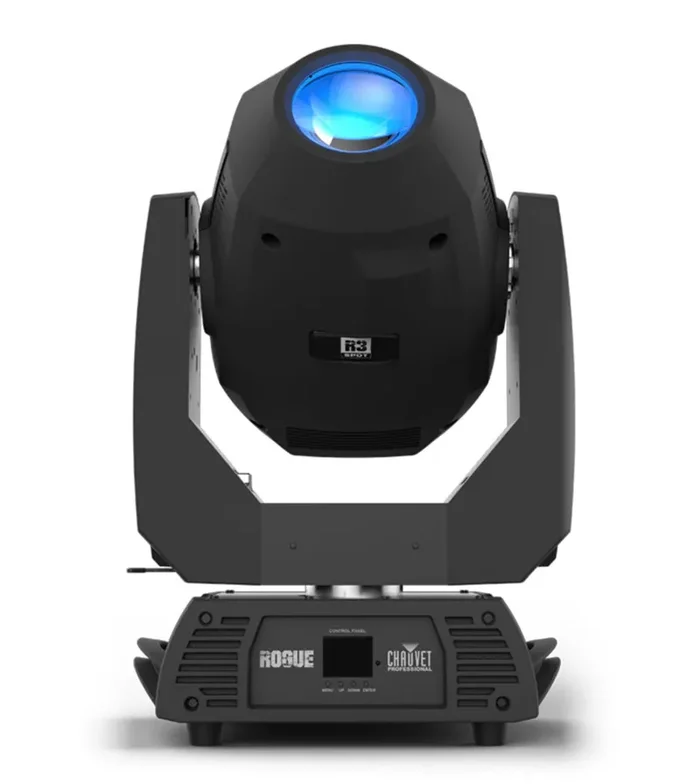

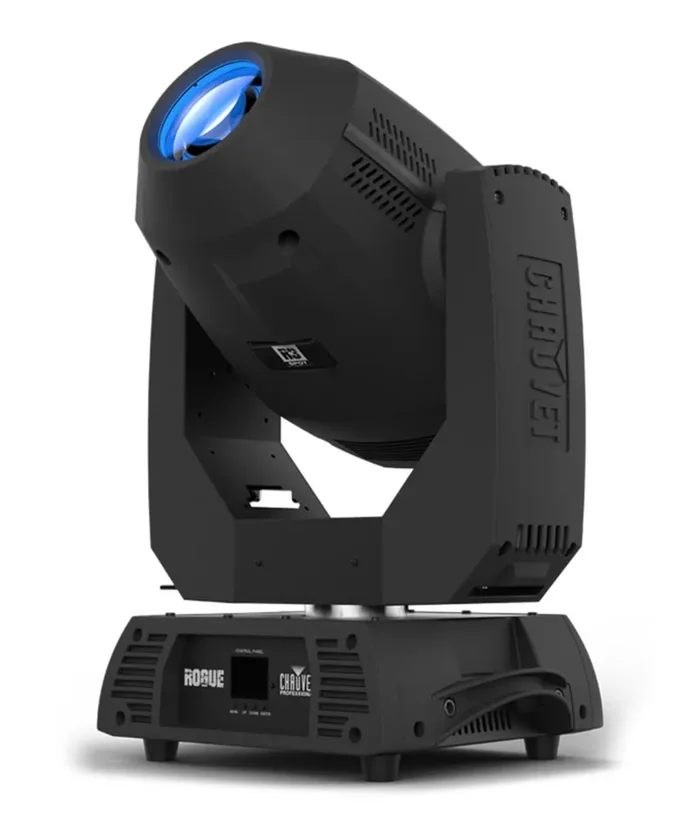

Chauvet Pro Rogue R3 Spot 300-Watt Moving Head Spot
The Chauvet Pro Rogue R3 Spot 300-Watt Moving Head Spot delivers intense output, crisp optics, sharp focus and maintains a value proposition designed to maximize ROI. This feature-packed moving spot has a bright 300 W LED light engine that produces an even field of light, as well as rotating and static gobos, an 8 position and split-color enabled color wheel, and three facet prisms to create stunning looks. A quick moving zoom range of 11.9 – 42.5° adds to its flexibility of use by giving the Rogue R3 Spot the ability to cover large areas.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Optical
Light Source: 1 LED (CW) 300 W, (8.8 A), 8324 K, 50,000 hours life expectancy.
Color Temperature (at full): 8324 K
Front lens diameter: 104 mm
CRI: 73.1
Beam Angle: 12° to 36°
Field Angle: 13° to 37°
Cutoff Angle: 15.5° to 42.5°
Zoom Range: 11.9° to 42.5°
Lumens – Source: 23,000
Lumens – Output: 12,800
Illuminance (14.9°): 12,997 lux @ 5 m
Illuminance (39.5°): 1,803 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
Dynamic Effects
Pan and Tilt: 540°/250°
Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 250° tilt
Colors (1): 7 + white, split colors, continuous scroll at variable speeds
Colors (2): 7 + white, split colors, continuous scroll at variable speeds
Gobos (1): 7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 8 + open (8 metal), continuous scroll at variable speeds
Gobo Size: Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4, and 7 (metal); size: 28.8 mm (outside), 23.8 mm (image), 0.5 mm (max. thickness)
Gobo Size: Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27 mm (outside), 24 mm (image), 3 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 3 Facets, motorized, rotating
Strobe Rate: 0 to 22 Hz
Move in Black: Yes
Construction / Physical
Dimensions: 14.68 x 11.1 x 23.66 in (373 x 282 x 601mm)
Weight: 50 lb (22.7 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer
Connections
Power Connection: Edison (local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 19 or 25
Modes/Personalities: 2 personalities (19, 25)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
Power and Current: 529 W, 4.48 A @ 120 V, 60 Hz
Power and Current: 520 W, 2.45 A @ 208 V, 60 Hz
Power and Current: 521 W, 2.22 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s Included
Rogue R3 Spot
Neutrik powerCON power cord
2 Omega brackets with mounting hardware
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
DMX Cables
powerCON extension cables
Upload 08 software uploader
