Description

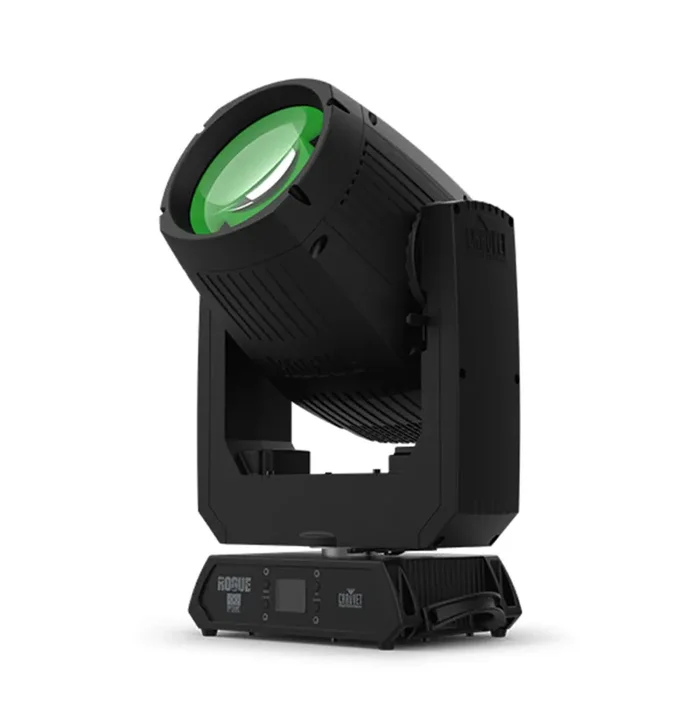

Chauvet Pro Rogue Outcast 1L Beam, Outdoor-Ready IP65 Beam Moving Head
The Chauvet Pro Rogue Outcast 1L Beam, Outdoor-Ready IP65 Beam Moving Head is a lightweight IP65 beam that packs a punch with speed and precision. Its tight 1.4° beam projects extremely focused aerial effects. Create dynamic midair looks with this fully-featured fixture that includes a color wheel, single gobo wheel (with both rotating and static gobos), layer able dual prisms and frost. Its durable alloy housing not only weathers outdoor elements but also brings advantages to indoor installations with a low-maintenance design that withstands particulates such as fog and haze.
Product Specifications:
Optical
Light Source: 1 LED (CW) 140 W, (4 A), 50,000 hours life expectancy
Color Temperature (at full): 6928 K
Front lens diameter: 160 mm
CRI: 69.3
Beam Angle: 1.4°
Field Angle: 1.7°
Cutoff Angle: 1.8°
Lumens – Source: 5500
Lumens – Output: 3218
Illuminance (total): 224,670 lux @ 5 m
Dynamic Effects
Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 14 + white, split colors, continuous scroll at variable speeds
Gobos: 14 + open (14 metal), 7 rotating, 7 static, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobo Size: Gobo Wheel (rotating): Positions 2, 4, 6, 8, 10, 12 and 14 (metal); size: 9.8 mm (outside), 5 mm (image), 0.6 mm (max. thickness)
Dimmer: Electronic
Shutter/Strobe: Motorized
Focus: Motorized
Frost: Motorized
Prism: 5 Facets, motorized, linear, rotating
Prism: 8 Facets, motorized, round, rotating
Move-in-Black: Yes
Construction / Physical
Dimensions: 12.56 x 8.58 x 19.88 in (319 x 218 x 505 mm)
Weight: 35.4 lb (16.1 kg)
Exterior Color: Black
Housing Material: Aluminum/Magnesium diecast
Connections
Power Connection: Bare ended to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 5-pin IP rated
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM
DMX Channels: 17 or 19
Modes/Personalities: 2 personalities (17, 19)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 233 W, 2.08 A @ 120 V, 60 Hz
Power and Current: 226 W, 1.15 A @ 208 V, 60 Hz
Power and Current: 223 W, 1.04 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, UKCA,
IP Rating: IP65, temporary outdoor/ wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -14 °F to 113 °F (-10 °C to 45 °C)
Maximum Exterior Surface Temperature (Tc): 80° C / 176° F
Maximum Ambient Temperature (ta): 45° C / 113° F
What’s Included
Rogue Outcast 1L Beam
Seetronic Powerkon IP65 power cord
(2) Omega brackets with mounting hardware
Optional Accessories
Clamps
IP65 5 pin DMX Cables
IP65 PowerKon Extension cables
Flight Case
