Description

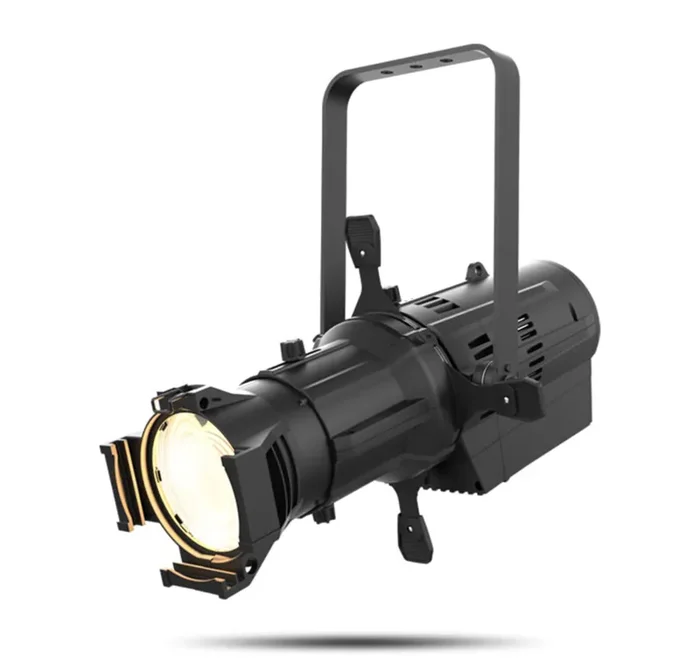

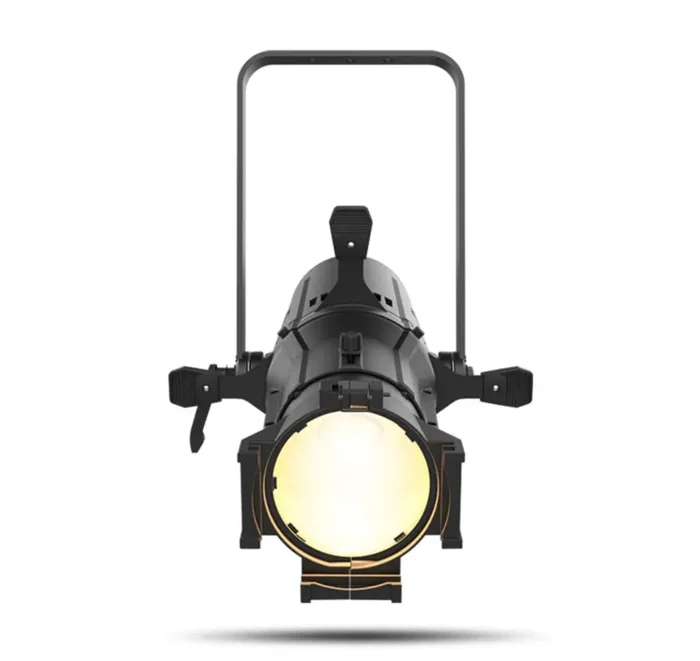

Chauvet Pro OVATIONED200WW, Ellipsoidal Spot Light Engine Only
The Chauvet Pro OVATIONED200WW, Ellipsoidal Spot Light Engine Only brings a 750 W tungsten equivalent warm white intensity and 95 CRI to our exclusive, award-winning Ovation ED range of LED theatrical fixtures, making it the highest power LED ellipsoidal unit that can sense and respond to traditional dimming systems. This high performance ellipsoidal is equally as efficient running on constant power and DMX, as it is when connected directly to a dimming power source. Advanced onboard electronics automatically detect what type of power and data the fixture receives, and it responds accordingly. Retrofit and upgrade to the benefits of LED lighting without being held back by previous investments made in major dimming systems.
Product Specifications:
Optical
Light Source: 1 LEDs (WW) 230 W, (3.4 A), 100,000 hours life expectancy
Color Temperature (at full): 3334 K
CRI: 97
Beam Angle (w/5° lens): 7°
Beam Angle (w/10° lens): 9°
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 15°
Beam Angle (w/26° lens): 19°
Beam Angle (w/36° lens): 25°
Beam Angle (w/50° lens): 35°
Field Angle (w/5° lens): 7°
Field Angle (w/10° lens): 10°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 17°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 33°
Field Angle (w/50° lens): 50°
Lumens (w/5° lens):
Lumens (w/10° lens):
Lumens (w/14° lens):
Lumens (w/19° lens): 11,534
Lumens (w/36° lens): 13,946
Lumens (w/50° lens): 12,754
Lumens (w/15°-30° lens): 11,739 (@15°), 11,315 (@30°)
Lumens (w/25°-50° lens): 14,243 (@25°), 12,834 (@50°)
Illuminance (w/5° lens): 43,100 lux @ 5 m
Illuminance (w/10° lens): 23,200 lux @ 5 m
Illuminance (w/14° lens): 15,092 lux @ 5 m
Illuminance (w/19° lens): 9,118 lux @ 5 m
Illuminance (w/26° lens): 6,028 lux @ 5 m
Illuminance (w/36° lens): 3,210 lux @ 5 m
Illuminance (w/50° lens): 1,445 lux @ 5 m
Dynamic Effects
Dimmer: Electronic or External Dimmer Rack
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 18 Hz
Dim Modes: 5
Dim Curves: 4
Construction / Physical
Dimensions: (fixture only): 21.5 x 15 x 15 in (545 x 380 x 380 mm)
Dimensions: (w/5° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
Dimensions: (w/10° lens extended): *** x 15 x 15 in (*** x 380 x 380 mm)
Dimensions: (w/26° lens extended): 26.5 x 15 x 15 in (673 x 380 x 380 mm)
Dimensions: (w/15°–30° lens): 42 x 14.6 x 14.6 in (1,068 x 371 x 371 mm)
Dimensions: (w/25°–50° lens): 36.3 x 14.6 x 14.6 in (923 x 371 x 371 mm)
Weight (fixture only): 17.6 lb (7.9 kg)
Weight (w/5° lens): 23.4 lb (10.6 kg)
Weight (w/10° lens): 21.4 lb (9.7 kg)
Weight (w/14° lens): 23 lb (10.4 kg)
Weight (w/26° lens): 21.6 lb (9.8 kg)
Weight (w/15°–30° lens): 30.2 lb (13.6 kg)
Weight (w/25°–50° lens): 27.2 lb (12.3 kg)
Exterior Color: Black
Connections
Power Connection: Edison plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM, Dimmer
DMX Channels: 1, 2 or 3
Modes/Personalities: 3 personalities (UNO, DOS, STD.P)
Electrical
Input Voltage: 120/230 VAC, 50/60 Hz (switchable)
Power Linking: 6 units @ 120 V; 12 units @ 230 V
Power and Current: 250 W, 2.074 A @ 120 V, 60 Hz
Power and Current: 254 W, 1.103 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET
IP Rating: IP20, dry location
What’s Included
Ovation ED-200WW
Neutrik powerCON power cord
Required Accessories
Lens Tube: 14°, 19°, 26°, 36°, 50°
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation Zoom Lenses: OEZOOM1530, OEZOOM2550
