Description

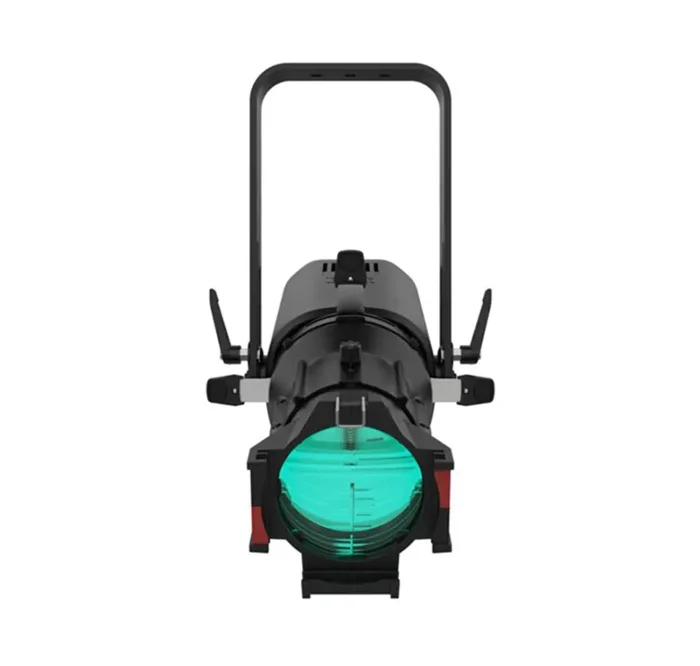

Chauvet Pro Ovation Reve E-3 IP, Multi-Color LED Ellipsoidal Fixture
The Chauvet Pro OVATIONREVEE3IP, Multi-Color LED Ellipsoidal Fixture is an outdoor-ready, LED ERS-style lighting fixture. Virtually silent and IP65 rated. It’s perfect for studio, theatre, and film applications both indoors and out. It has the brightest light engine that can produce full-spectrum colors and tunable whites. Ovation Rêve E-3 IP features adjustable PWM, +/- green adjustment and emulated red-shift, and ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme, anywhere.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Optical
Color Temperature (range): 2800 to 8000 K
Color Temperature (at full): 6,428 K
CRI: 93.5
Beam Angle (w/5° lens): 6.7°
Beam Angle (w/10° lens): 11.1°
Beam Angle (w/14° lens): 14.2°
Beam Angle (w/19° lens): 17.6°
Beam Angle (w/26° lens): 26°
Beam Angle (w/36° lens): 32.8°
Beam Angle (w/50° lens): 50°
Field Angle (w/5° lens): 7.9°
Field Angle (w/10° lens): 12.8°
Field Angle (w/14° lens): 16.9°
Field Angle (w/19° lens): 20.8°
Field Angle (w/26° lens): 28.2°
Field Angle (w/36° lens): 37°
Lumens (w/5° lens): 8,335
Lumens (w/10° lens): 11,092
Lumens (w/14° lens): 10,700
Lumens (w/19° lens): 10,185
Lumens (w/26° lens): 12,178
Lumens (w/36° lens): 11,888
Lumens (w/50° lens): 11,274
Illuminance (w/5° lens): 28,740 lux @ 5 m
Illuminance (w/10° lens): 15,108 lux @ 5 m
Illuminance (w/14° lens): 8,823 lux @ 5 m
Illuminance (w/19° lens): 5,377 lux @ 5 m
Illuminance (w/26° lens): 3,300 lux @ 5 m
Illuminance (w/36° lens): 1,977 lux @ 5 m
Illuminance (w/50° lens): 864 lux @ 5 m
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Focus: Manual
Strobe Rate: 0 to 28.6 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Dim Curves: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions (fixture only, yoke up): 20.83 x 12.71 x 19.75 in (529.3 x 323 x 501.7 mm)
Dimensions (w/5° lens extended, yoke up): 42.25 x 14.5 x 19.75 in (1073.15 x 368.3 x 501.7 mm)
Dimensions (w/10° lens extended, yoke up): 33.5 x 12.71 x 19.75 in (850.9 x 323 x 501.7 mm)
Dimensions (w/14° lens extended, yoke up): 30.25 x 12.71 x 19.75 in (768.35 x 323 x 501.7 mm)
Dimensions (w/19°, 26°, 36° or 50° lens extended, yoke up): 27.5 x 12.71 x 19.75 in (698.5X 323 X 501.7 mm)
Weight: 20.6 lb (9.34 kg)
Weight (w/5° lens): 25.2 lb (11.43 kg)
Weight (w/10° lens): 23.8 lb (10.79 kg)
Weight (w/14° lens): 26 lb (11.79 kg)
Weight (w/26° lens): 24.4 lb (11.06 kg)
Weight (w/15°–30° lens): 30.2 lb (13.69 kg)
Weight (w/25°–50° lens): 26.8 lb (12.15 kg)
Exterior Color: Black
Housing Material: Magnesium alloy
Connections
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Software Connection: Type-C USB
Control
Control Protocol: DMX, RDM
DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
Electrical
Power and Current: 354 W, 2.999 A @ 120 V, 60 Hz
Power and Current: 345 W, 1.707 A @ 208 V, 60 Hz
Power and Current: 342 W, 1.555 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC, UKCA
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s Included
Ovation Rêve E-3 IP
Seetronic Powerkon power cable
Ovation Metal Gobo Holder
Soft Focus Filter
Required Accessories
Lens Tube: 5°, 10°, 14°, 19°, 26°, 36°, 50°, 15°-30°, 25°-50°
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Safety Cable: SC-07
TRUE1 Style Power Extension Cables
5-pin IP65 DMX Cables
RDM2go
Ovation Glass Gobo Holder
Ovation Metal Gobo Holder
Ovation Iris
Ovation GR-1 IP Gobo Rotator
USB Jump Drive
