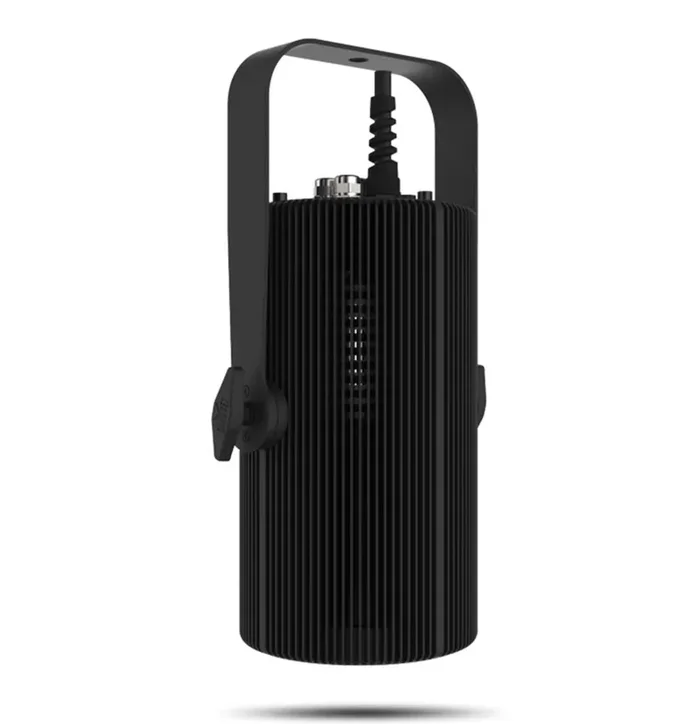

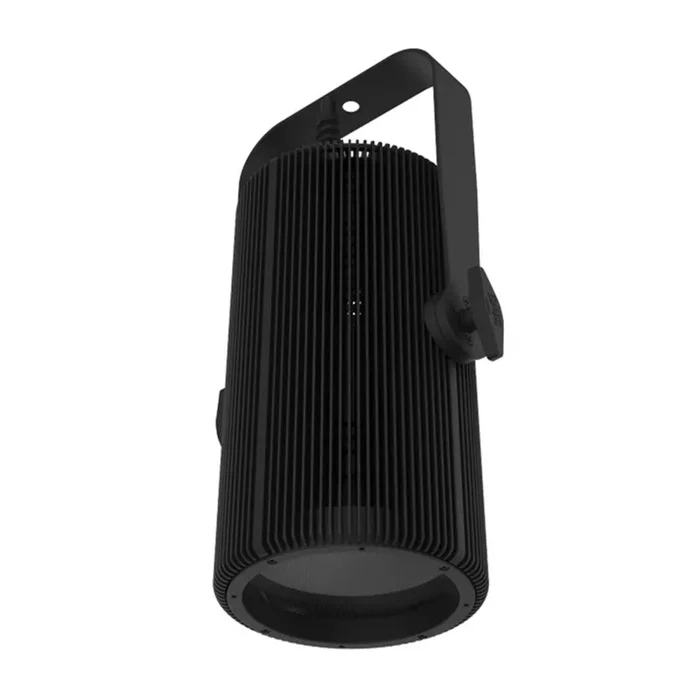

Chauvet Pro Ovation H-605FC Led Light – Black
The Chauvet Pro Ovation H-605FC Led Light – Black takes full advantage of LED technology, utilizing the Ovation standard RGBA-Lime color palette to enable the fixture to replicate nearly any color with tremendous color rendering, as well as nearly any color temperature of white. Superior convection cooling provides excellent output in a compact package. Ideal for theatrical and house of worship applications, setup and control is now easier than ever with the addition of W-DMX, RDM, adjustable PWM and an easy to navigate OLED full text display. White housing not available in European Markets.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Optical
Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 2 to 3 W, (800 mA), 4766 K, 50,000 hours life expectancy
Color Temperature (at full): 4766 K
CRI (5000 K): 90
Beam Angle (w/80° filter): 40°
Beam Angle (w/65° lens): 51°
Beam Angle (w/45° lens): 39°
Beam Angle (w/25° lens): 37°
Field Angle (w/80° filter): 80°
Field Angle (w/65° lens): 79°
Field Angle (w/45° lens): 66°
Field Angle (w/25° lens): 37°
Dimming Modes: 4
Illuminance (w/80° filter): 163 lux @ 5 m
Illuminance (w/65° lens): 171 lux @ 5 m
Illuminance (w/45° lens): 349 lux @ 5 m
Illuminance (w/25° lens): 1,047 lux @ 5 m
Lumens (w/80° filter): 2,694
Lumens (w/65° lens): 3,769
Lumens (w/45° lens): 3,769
Lumens (w/25° lens): 3,938
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6000 Hz, 25,000 Hz
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 13.11 x 9.44 x 13.34 in (333 x 240 x 339 mm)
Weight: 19.6 lb (8.9 kg)
Exterior Color: Black or White
Connections
Power Connection: Bare-wired
Power Input: Hard-wired
Data Connectors: 5-pin XLR, Phoenix connector
Cable Length (power): 15 ft (4.5 m)
Control
Control Protocol: DMX, RDM, W-DMX
DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
Modes/Personalities: 9 personalities (2, 4, 5, 8, 11, 13, 14, 16, HSV)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 145 W, 1.43 A @ 100 V, 60 Hz
Power and Current: 142 W, 1.19 A @ 120 V, 60 Hz
Power and Current: 146 W, 0.704 A @ 208 V, 60 Hz
Power and Current: 145 W, 0.627 A @ 230 V, 50 Hz
Power and Current: 145 W, 0.605 A @ 240 V, 60 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
What’s Included
Ovation H-605FC
65°, 45° and 25° lenses
80° filter
Egg crate
Optional Accessories
W-DMX Transmitter
Professional Clamps: CTC-50HC, CTC-50HCN
5-pin DMX Cables
RDM2go
