Description

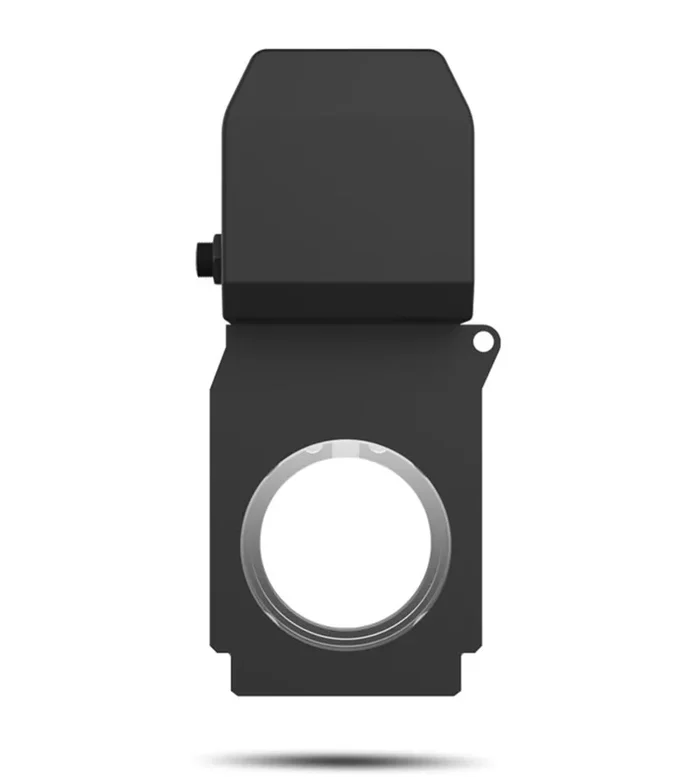

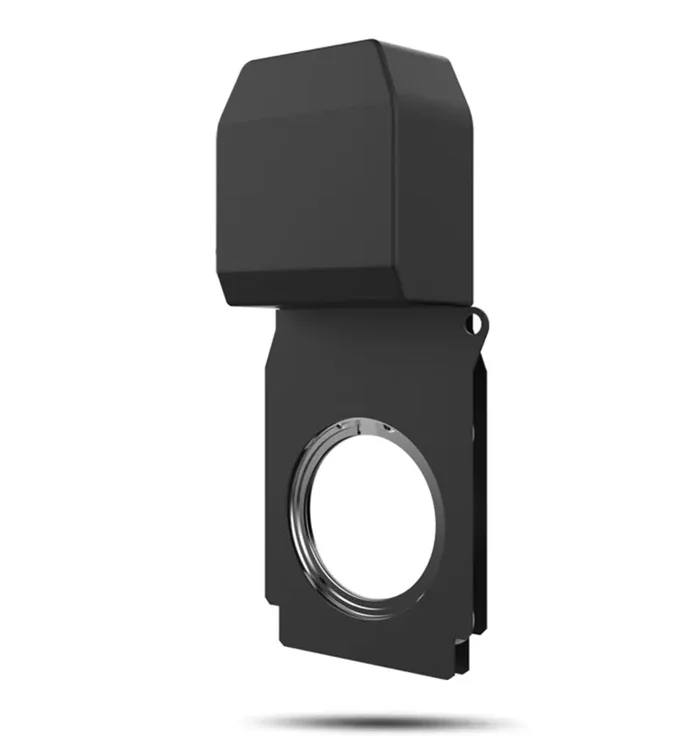

Chauvet Pro Ovation GR-1 IP Gobo Rotator for Ovation E-260 IP LED Light
The Chauvet Pro Ovation GR-1 IP Gobo Rotator for Ovation E-260 IP LED Light is an IP65 rated gobo rotator for the Ovation E-260WW IP & OvationE-910FC IP. Power and control for the unit is delivered from the dedicated port on the fixtures and controlled via the fixture personality.
Product Specifications:
Dynamic Effects
Gobos size: B (metal, glass or effect)
Effects: CW or CCW Rotation, indexing, infinite rotation at variable speeds
Speed Range: 0.047 – 21 RPM (17° – 7,560° per minute)
Construction / Physical
Dimensions: 10.9 x 4.7 x 2.2 in (277.5 x 120.5x 56.9 mm)
Weight: 2.4 lb (1.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Connections
Power Connection: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
Data Connectors: Proprietary 4-pin IP65 input power/data cord (19 in/483 mm)
Cable Length (power/data): 19 in/483 mm
Control
Control Protocol: DMX
DMX Channels: 1
Electrical
Input Voltage: 24 VDC, 372 mA (via Ovation E-260WW IP)
Certifications / Qualifications
CE
IP Rating: IP65, temporary outdoor/wet use
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s Included
Ovation GR-1 IP
Power & Data Control Cable
