Description

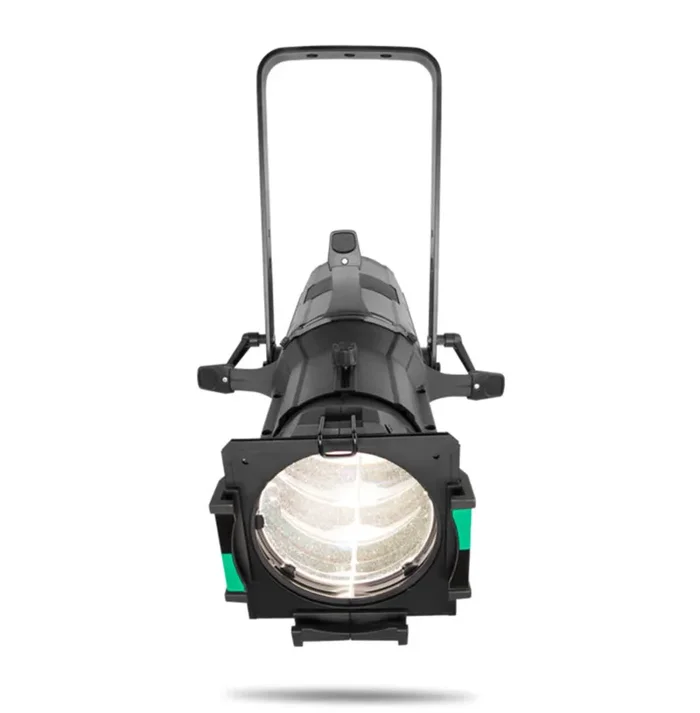

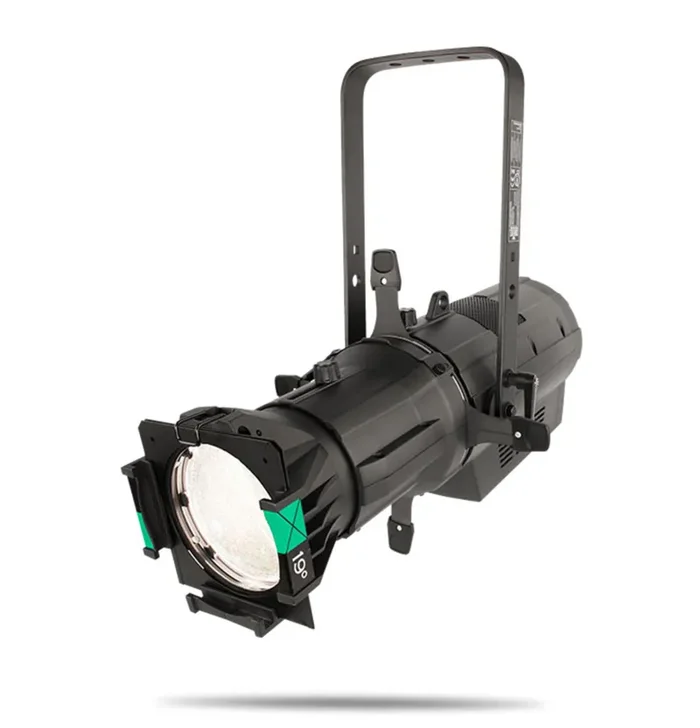

Chauvet Pro OVATION E-260WW LED Fixture
The Chauvet Pro OVATIONE260WW LED Fixture is powered by a single source 230 W LED that exceeds the output of a 750 W tungsten light source. This warm white ERS-style fixture boasts extremely smooth dimming down to the very bottom of the curve as well as a flat and even field of light for superior gobo projection. Control options like selectable PWM, RDM, and selectable dimming curves round out this virtually silent ellipsoidal.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Optical
Color Temperature (at full): (WW) 3149 K; (CW) 5452 K
CRI: (WW) 96; (CW) 96
Beam Angle (w/5° lens): 6°
Beam Angle (w/10° lens): 8°
Beam Angle (w/14° lens): 11°
Beam Angle (w/19° lens): 13°
Beam Angle (w/26° lens): 16°
Beam Angle (w/36° lens): 20°
Beam Angle (w/50° lens): 28°
Beam Angle (w/15°–30° lens) (Narrow): 12°
Beam Angle (w/15°–30° lens) (Wide): 14°
Beam Angle (w/25°–50° lens) (Narrow): 21°
Beam Angle (w/25°–50° lens) (Wide): 22°
Field Angle (w/5° lens): 7°
Field Angle (w/10° lens): 10°
Field Angle (w/14° lens): 14°
Field Angle (w/19° lens): 18°
Field Angle (w/26° lens): 25°
Field Angle (w/36° lens): 34°
Field Angle (w/50° lens): 50°
Field Angle (w/15°–30° lens) (Narrow): 15°
Field Angle (w/15°–30° lens) (Wide): 29°
Field Angle (w/25°–50° lens) (Narrow): 26°
Field Angle (w/25°–50° lens) (Wide): 46°
Dimming Modes: 4
Lumens (w/19° lens): (WW) 7,587; (CW) 9,530
Lumens (w/26° lens): (WW) 10,284; (CW) 13,368
Lumens (w/36° lens): (WW) 10,121; (CW) 13,184
Lumens (w/50° lens): (WW) 9,655; (CW) 12,672
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Manual
Strobe Rate: (WW) 0 to 27 Hz; (CW) 0 to 30 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
Color Temperature Presets: (CW) No
Construction / Physical
Dimensions (fixture only): 19.49 x 11.22 x 19.17 in (495 x 285 x 487 mm)
Dimensions (w/5° lens extended): 42.79 x 14.17 x 14.48 in (1087 x 360 x 368 mm)
Dimensions (w/10° lens extended): 34.09 x 12.16 x 12.48 in (866 x 309 x 317 mm)
Dimensions (w/14° lens extended): 28.74 x 11.22 x 19.17 in (730 x 285 x 487 mm)
Dimensions (w/26° lens extended): 25.91 x 11.22 x 19.17 in (658 x 285 x 487 mm)
Dimensions (w/15°–30° lens): 32.87 x 14.61 x 14.61 in (835 x 371 x 371 mm)
Dimensions (w/25°–50° lens): 27.17 x 14.61 x 14.61 in (690 x 371 x 371 mm)
Weight (fixture only): 15.4 lb (7 kg)
Weight (w/5° lens): 21.2 lb (9.7 kg)
Weight (w/10° lens): 19.2 lb (8.8 kg)
Weight (w/14° lens): 20.8 lb (9.43 kg)
Weight (w/26° lens): 19.4 lb (8.80 kg)
Weight (w/15°–30° lens): 29.4 lb (13.34 kg)
Weight (w/25°–50° lens): 27 lb (12.25 kg)
Exterior Color: Black or White
Connections
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: (WW) DMX RDM; (CW) DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
units @ 208 V; 13 units @ 230 V
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP20, dry location
What’s Included
Ovation E-260WW/Ovation E-260CW
Neutrik powerCON power cord
Required Accessories
Lens Tube: (WW) 19°, 26°, 36°, 50°
Lens Tube: 14° (CW), 19°, 26°, 36°, 50°
Optional Accessories
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik powerCON cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
RDM2go
Ovation Zoom Lenses: OHDZOOM1530, OHDZOOM2550
