Description

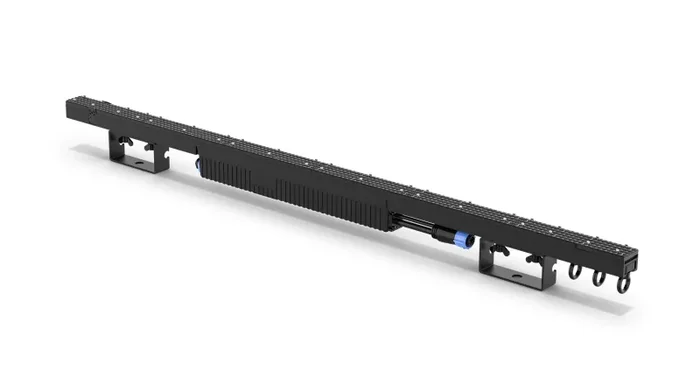

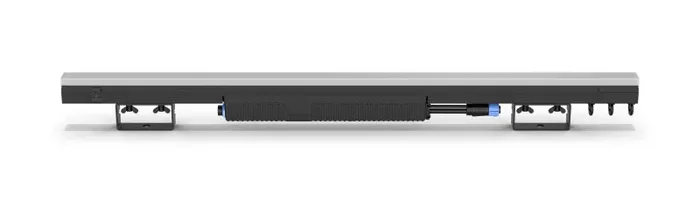

Chauvet Pro F6 Strip IP, Led Outdoor Video Panel
The Chauvet Pro F6 Strip IP, Led Outdoor Video Panel is an outdoor-ready, uniquely shaped 6.9 mm pixel pitch video panel that can be used to line set-pieces and configure designs that compliment other video wall panels in the F-series (F2, F3, F4IP, F5IP). Since it takes HDMI/DVI/SDI directly into the VIP Drive 83R video processor and features the same mapping software (Smart-LCT) as other F-series video panels, there is no need to setup a separate, dedicated video server when using F6 Strip IP with other video panels in the range. Its elongated, die-cast housing makes this product among the lightest and slimmest in its class without compromising its strength. F6 Strip IP runs on the Nova star control platform, and includes 2 diffusion filters (square soft white, square black stealth) for further versatility.
Product Specifications:
Light Source: 720 Leds (Tri-Color RGB) SMD 1921, 50,000 Hours Life Expectancy
Color Wavelength: Red (615 To 630 Nm), Green (515 To 535 Nm), Blue (460 To 475 Nm)
Viewing Angle (H/V): 160°/155°
Calibrated Illuminance: 5500 NITS
Maximum Illuminance: 5500 NITS
Contrast Ratio: 5,000: 1
Pixels: 144 X 5
Pixel Pitch: 6.9 Mm
Minimum Viewing Distance: 10 Ft (3 M)
Grayscale: 15 Bits
Pixel Density: 20,736/M2
Display Refresh Rate: 5,940 Hz
Threaded Bolt: M12
Exterior Color: Black
Housing Material: Aluminum Extrusion and Aluminum Die-Cast
Maximum Vertical Hang: 4 Strips
Transparency: 0%
Dimensions: 39.37 X 1.36 X 2.69 X In
Weight: 4.85 Lb
