Description

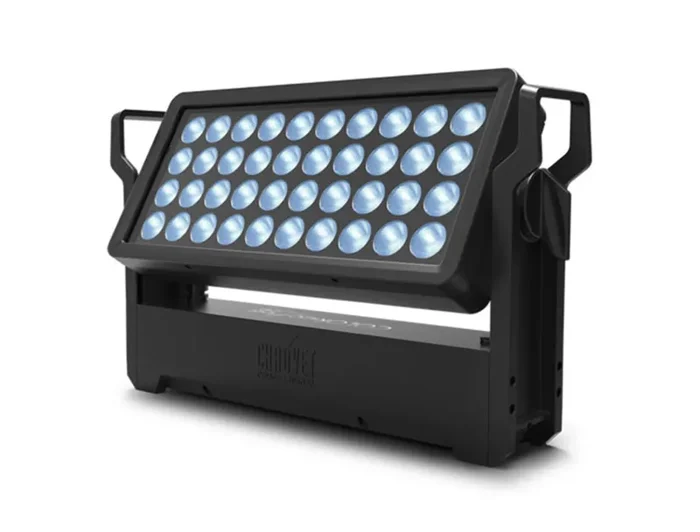

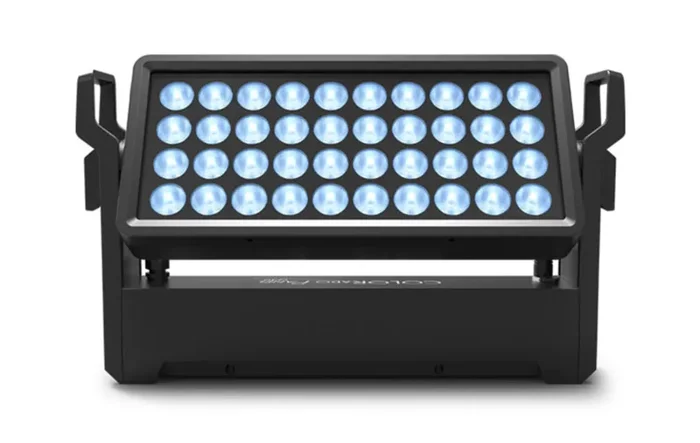

Chauvet Pro Colorado Panel Q40 Rectangular Wash Light
The Chauvet Pro Colorado Panel Q40 Rectangular Wash Light is a powerful IP65-rated rectangular wash light that features 40 15 W RGBW LEDs capable of flawless edge-to-edge color mixing. This rugged indoor/outdoor unit can be manipulated through adjustable beam angles and includes a magnetic flood filter to produce a wider, but still even area wash. Its outdoor rated power and data connectors allow for easy connections without propriety cabling. Control it as you see fit with W-DMX and RDM.
Product Specifications:
Optical
Light Source: 40 LEDs (quad-color RGBW) 15 W, (970 mA), 50,000 hours life expectancy
Color Temperature (range): 2800 to 10000 K
Installed Optics: 15°
Beam Angle (w/o filter): 20.4°
Beam Angle (w/filter): 24.6°
Field Angle (w/o filter): 33.8°
Field Angle (w/ filter): 50.4°
Lumens: 29,407
Lumens (w/filter): 17,992
Illuminance (w/o filter): 8,347 lux @ 5 m
Illuminance (w/ filter): 2,590 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Tilt Ranges: 0° to 150°
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction / Physical
Dimensions: 20.27 x 7.71 x 11.96 in (515 x 196 x 304 mm)
Weight: 28.2 lb (12.8 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
Filter Size: 16.75 x 8 in (425.45 x 203.2 mm)
Connections
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
Control
Control Protocol: DMX, W-DMX, RDM
DMX Channels: 4, 7, 11, 16 or 22
Modes/Personalities: 5 personalities (4ch, 7ch, 11ch, 16ch, 23ch)
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
Power and Current: 566 W, 4.729 A @ 120 V, 60 Hz
Power and Current: 559 W, 2.701 A @ 208 V, 60 Hz
Power and Current: 560 W, 2.439 A @ 230 V, 50 Hz
Certifications / Qualifications
CE, MET, FCC
IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s Included
Seetronic Powerkon IP65 power cord
Color Blending Filter lens
Omega bracket with mounting hardware
Optional Accessories
COLORado Panel Q40 Barndoor
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin IP or Non-IP DMX Cables
COLORado Panel Q40 Filter Pack
