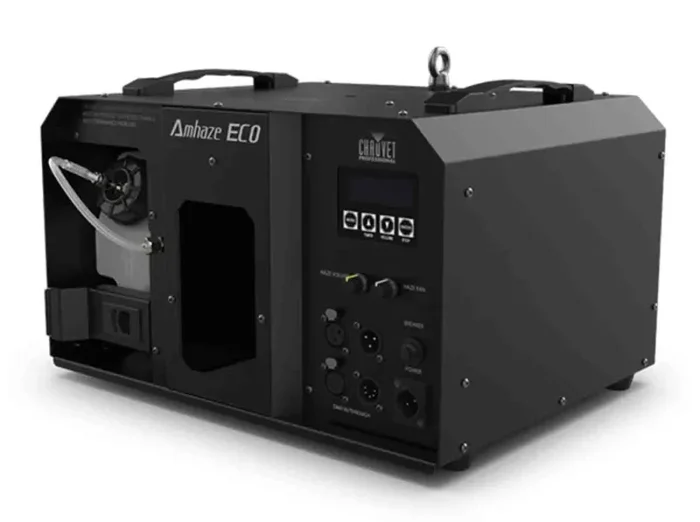

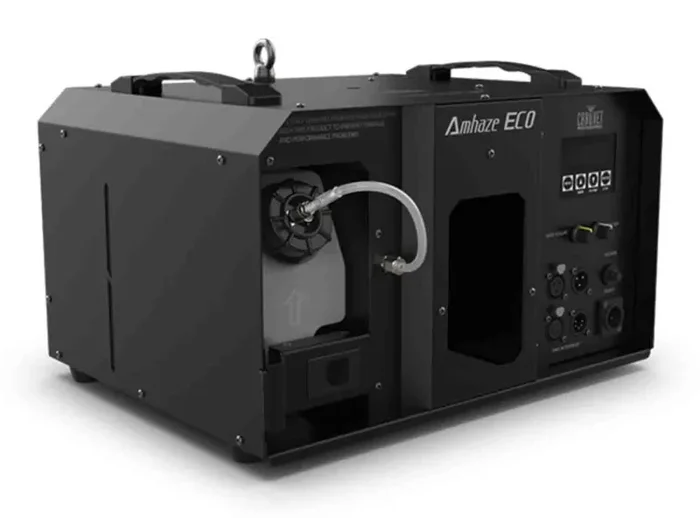

Chauvet Pro Amhaze ECO Professional Water-Based Haze Machine
The Chauvet Pro Amhaze ECO Professional Water-Based Haze Machine is a professional water-based haze machine that delivers high output while utilizing economic fluid consumption. With a rapid 30-second heat up time, and continuous output that doesn’t require any reheating, you can quickly get the maximum output of 120 cfm with a single fluid container lasting you over 8 hours. Easily control the output and fan speed via DMX or on the onboard control knobs. Amhaze Eco comes ready to rest on the floor and is also equipped with M12 threaded inserts for truss clamps, an easy way to mount the 25lb machine. Amhaze Eco combines high output with efficient operation for a complete atmosphere solution for medium to large venues.
Product Specifications:
Dynamic Effects
Fan Speed: 120 cfm
Low Fluid Shutdown: Yes
Construction / Physical
Dimensions: 15.86 in (403 mm) x 12.20 in (310 mm) x 10.07 (256 mm)
Dimensions (Shipping Size): 20.27 x 16.53 x 12.80 in (515 x 420 x 325 mm)
Weight: 25 lb (11.4 kg)
Weight: (shipping weight): 28.8 lb (13.5 kg)
Threaded Bolt: M12
Exterior Color: Black
Tank Capacity: 0.92 gal (3.5L)
Fluid Consumption: 7 ml/min (0.11 gallons/hour)
Maximum Run Time: >8 hours @ full volume
Connections
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (Power): 5 ft (1.5 m)
Control
Control Protocol: DMX, RDM DMX Channels: 3
Dmx Channels: 3
Modes/Personalities: 1 personality
On-Board Control: Yes
Electrical
Input Voltage: 120 VAC, 60 Hz or 230 VAC, 50 Hz
Power and Current: 1,230 W, 10.25 A @ 120 V, 60 Hz
Power and Current: 2,430 W, 10.56 A @ 230 V, 50 Hz
Heat-Up Time: 30 sec
Certifications / Qualifications
Met Listing Number: E115095
Us Safety: UL 499
Canadian Safety: CSA C22.2 No. 64-10
Ip Rating: IP20, dry location
Maximum Exterior Surface Temperature (Tc): 127 °F (53 ℃)
What’s Included
Amhaze Eco
Seetronic Powerkon IP65 Power Cord
Required Accessories
Compatible Mounting Options: M12 Bolt/Clamp
Phf Haze Fluid
Optional Accessories
Clamps
Neutrik Powercon Cables
Dmx Cables
