Description

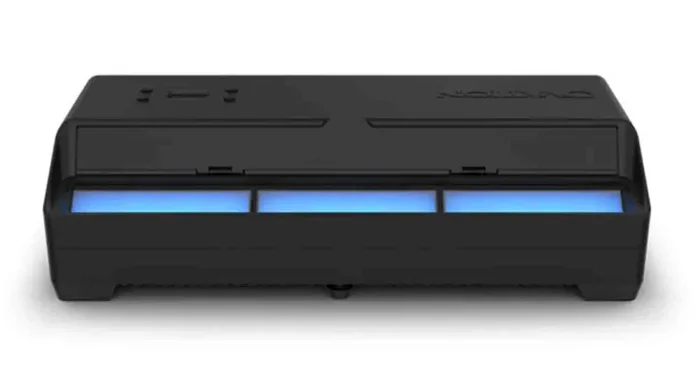

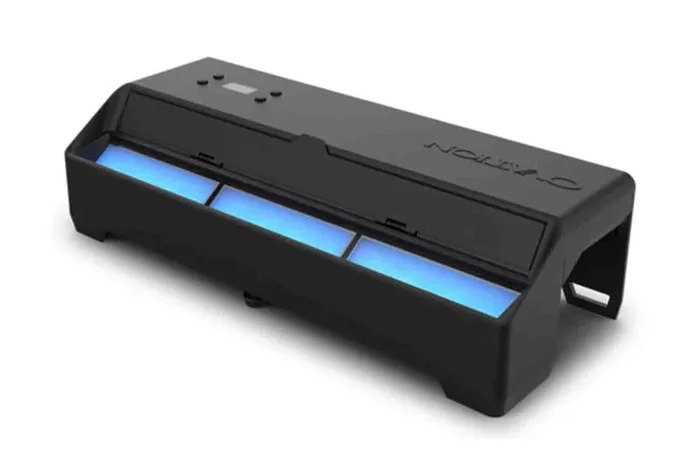

Chauvet DJ Ovation CYC 1 FC, RGBAL Cyclorama Wash and Footlight Fixture
The Chauvet DJ Ovation CYC 1 FC is a RGBAL Cyclorama Wash and Footlight Fixture delivers a wide, smooth field of light with significant reach. Completely convection cooled, the unit is ideal for applications where silent operation is critical. Ovation Cyc 1 FC features the advanced RGBAL color-mixing system found in our other Full-Color Ovation units to render nearly any color with tremendous realism and saturation. Given the low profile of the unit, it can also be used effectively as a footlight. The versatile fixture has an integrated kickstand and included glare shield that can adjust and shape its throw and also features an included omega bracket.
Product Specifications:
Optical:
Light Source: 60 LEDs (12 red, 12 green, 12 blue, 12 amber, 12 lime) 1.75 to 4.57 W, (1.4 A), 6935 K, 50,000 hours life expectancy.
Color Temperature (range): 2800 to 6500 K
CRI (3200 K): 90.6
Beam Angle: 81.1° (Horizontal)
Beam Angle: 87.1° (Vertical)
Field Angle: 124.6° (Horizontal)
Field Angle: 148.1° (Vertical)
Lumens: 8,966
Dynamic Effects
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 27 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
Construction and Physical
Dimensions: 16.14 x 6.29 x 4.33 in (410 x 160 x 110 mm)
Weight: 9 lb (4.2 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Connections
Power Connection: Edison (Local) plug to Neutrik powerCON
Power Input: Neutrik powerCON
Power Output: Neutrik powerCON
Data Connectors: 5-pin XLR
Control
Control Protocol: DMX, RDM
DMX Channels: 2, 4, 5, 8, 11, 13, 14, 16 or HSV
Electrical
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 11 units @ 120 V; 21 units @ 208 V; 23 units @ 230 V
Power and Current: 139 W, 1.14 A @ 120 V, 60 Hz
Certifications and Qualifications: CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
What’s Included
OVATION CYC-1FC
Neutrik powerCON power cord
Omega bracket with mounting hardware
