Description

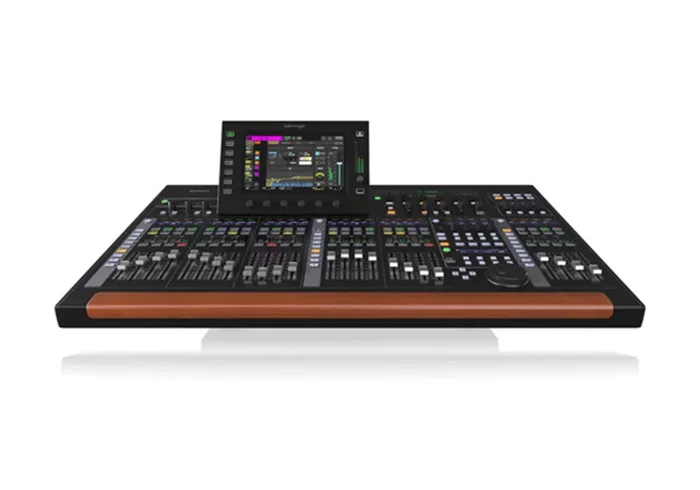

Behringer WING-BK, 48-Channel / 28-Bus Full-Stereo Digital Mixing Console – Pro Black
The Behringer WING is a 48-channel digital mixer designed for professional audio production, live sound, and studio applications. It features a flexible workflow, advanced routing capabilities, and a high-resolution touch interface for seamless control. With its 24 motorized faders, customizable channel strips, and a fully programmable user interface, the WING provides an intuitive mixing experience.
At the core of the WING is its powerful 40-bit floating-point processing engine, ensuring pristine audio quality and ultra-low latency. The mixer supports up to 374 input sources and offers extensive connectivity options, including AES50, USB, Dante, and MADI. It also features premium Midas preamps, offering studio-quality sound reproduction.
Designed for versatility, the Behringer WING includes an advanced effects engine with premium plug-ins, dynamic processing, and parametric EQs. The 10″ capacitive touch screen and customizable control layout allow users to tailor their workflow to match their preferences. With built-in Wi-Fi and remote-control capabilities, the WING enables seamless integration with mobile devices and external control surfaces.
Product Specifications:
Frequency Response: 10 Hz – 20 kHz (@ 48 kHz sample rate, 0 to -1 dB)
Dynamic Range (Analog in to Analog Out, Typical): 111 dB (XLR) / 108 dB (Aux)
A/D Dynamic Range (Preamplifier & Converter, Typical): 112 dB (XLR) / 110 dB (Aux)
D/A Dynamic Range (Converter & Output, Typical): 118 dB (XLR) / 112 dB (Aux)
Crosstalk Rejection: 100 dB @ 1 kHz (Adjacent Channels)
Output Level (XLR, Nominal/Maximum): +4 dBu / +21 dBu
Output Impedance (XLR, Unbalanced/Balanced): 75 Ω / 75 Ω
Input Impedance (TRS, Unbalanced/Balanced): 20 kΩ / 40 kΩ
Maximum Input Level (TRS, Non-Clip): +16 dBu
Aux Output Level (Nominal/Maximum): +4 dBu / +16 dBu
Aux Output Impedance (Unbalanced/Balanced): 150 Ω / 300 Ω
Phones Output Impedance / Max Output Level: 500 mW @ 75 Ω / +18 dBu
Residual Noise Level (XLR Out 1-16, Unity Gain): -97 dBu
Residual Noise Level (Aux & Monitor TRS Out): -95 dBu
Main Screen: 10.1″ TFT LCD, 1280 x 800 px, Capacitive Touch
Swivel Adjustment (Main Screen): 15° – 60°
4-Channel Group LCD Screen: 320 x 48 Monochrome with RGB Color Strip
Channel Editing Screen: 2.4″ TFT LCD, 320 x 240 px
Main Stereo Meter: 18 Segment (-60 dB to Clip)
Motorized Faders (100 mm): 12 + 8 + 4
Touch-Sensitive Rotary Controls: 3 + 7 + 11 + 4 + 4
Custom Controls: 8
Fully Assignable Rotary Controls: 4
Fully Assignable Backlit Buttons: 8 + 8
Variable Rotary Controls / Buttons: 4 / 4
Power Supply: Auto-Ranging 100-240 VAC (50/60 Hz)
Power Consumption: 130 W
Operating Temperature: 5°C – 40°C (41°F – 104°F)
Dimensions (HxWxD): 201 x 870 x 575 mm (7.9 x 34.3 x 22.6″)
Weight: 24 kg (52.8 lbs)
