Description

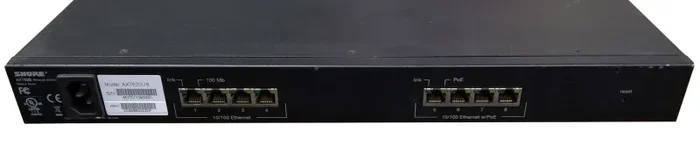

B-Stock: Shure AXT620US 9-Port Roadrack Ethernet Switch – OPEN BOX
The AXT620 Ethernet Switch is a rugged, rack mountable 9 Port switch that simplifies the networking of Shure systems and minimizes network configuration setup. It is equipped with Power over Ethernet PoE ports for enabled devices and a DHCP server to automatically assign IP addresses to components.
Rack-mount Installation
For proper ventilation, allow about at least four inches of clearance on the front and 3.4 inches on the back of the switch. This is especially important for enclosed rack installation.
Web-Based Management
The switch is managed from an embedded web server, which offers advanced management features and lets you manage the switch from anywhere on the network through a standard web browser. The Web-Based Management supports Internet Explorer 6.0 or later version.
Power On
Connect the power cord to the power socket on the rear panel of the switch.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
Connector: 100Base-T: 9x RJ-45 with auto MDI/MDI-X and PoE inject function.
Power Requirements: 100 to 240 V AC, 50/60 Hz
Power Consumption: 76.6 Watts (maximum)
Operating Temperature: -10°C to 60°C, 5% to 95% RH
Storage Temperature: -40°C to 85°C, 5% to 95% RH
Dimensions: 440 x 44 x 280 mm (17.3 x 1.7 x 11.0 inches) (W x H x D)
Weight: 3.6 kg (8.0 lbs.)
