Description

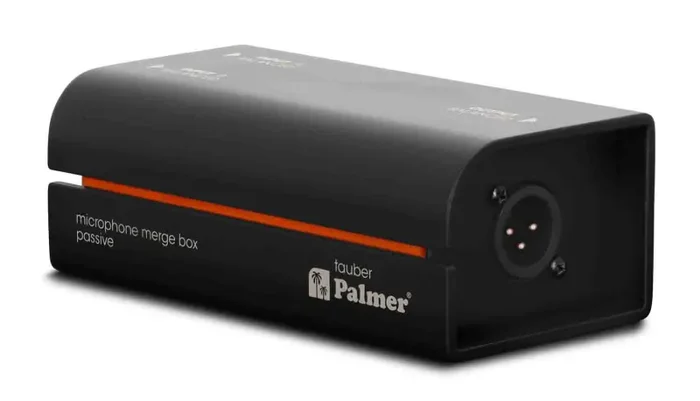

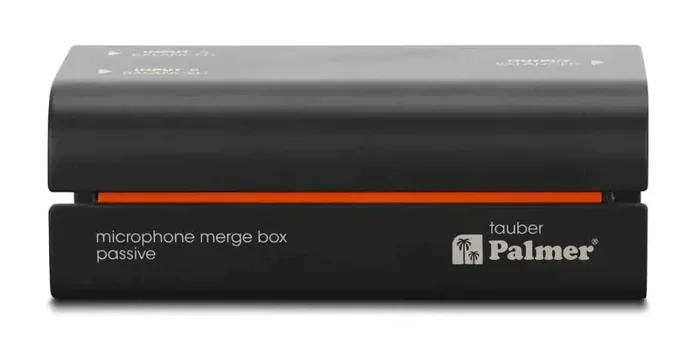

B-Stock: Palmer tauber Passive Microphone Merge Box
The Palmer tauber Passive Microphone Merge Box solves the problem in a simple way. It has two balanced microphone inputs that are summed via a resistor matrix to a balanced mono signal which is routed to a single XLR output. It’s as easy as it sounds!
It can be used for two dynamic microphones or two condenser microphones. Ideally, they should be identical or similar microphone types to avoid any undesirable level differences. Phantom power is passed through to both inputs. Due to its passive circuitry, the tauber works without any sound coloration and does not require a power supply. The casing and sockets are extremely robust and long-lasting.
Items are sold as is. Absolutely no returns are accepted for B-Stock Like New or Scratch & Dent Items
Product Specifications:
Product type: Microphone summing unit
Type: passive
Channels: 1
Transformer isolated: no
Inputs: 2
Input type: balanced
Input connectors: XLR
Outputs: 1
Output type: balanced
Output connectors: XLR
Housing: Aluminum continuous casting
Ambient temperature (in operation): – 20 – 70 °C
Relative Humidity: < 80% (non-condensing)
Accessories (included): Inscription label (tour label), rubber feet
Package Weight: 1.26 lb
Box Dimensions (LxWxH): 6 x 2.37 x 3.11″
