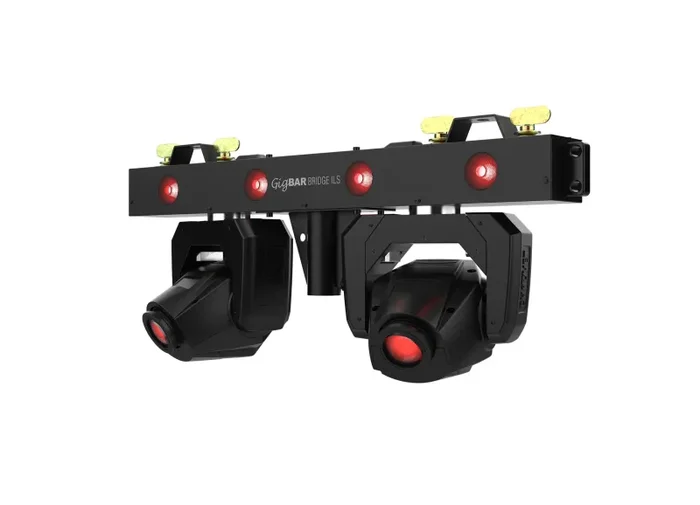

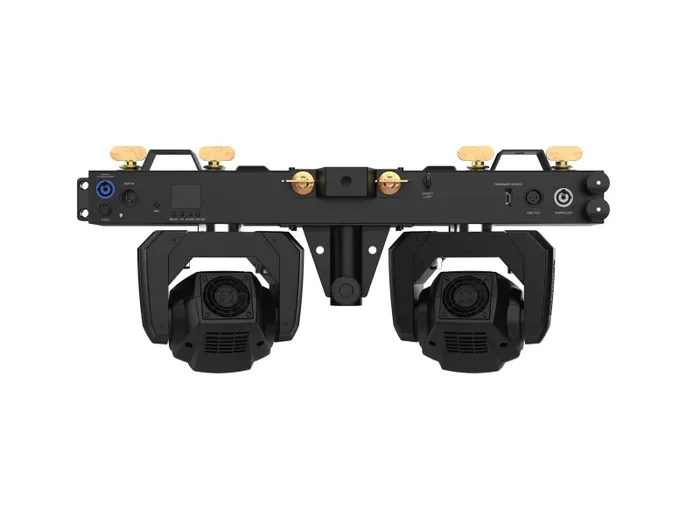

B-Stock: Chauvet DJ GIGBARBRIDGEILS, 2-in-1 Lighting System Moving Heads and Washes Single Bar
The Chauvet DJ GIGBARBRIDGEILS is a compact and powerful all-in-one lighting solution that combines the versatility of moving heads with the wide-angle coverage of wash lights on a single, easy-to-mount bar. This innovative design eliminates the need for separate fixtures and simplifies setup, making it ideal for mobile DJs, small to medium-sized venues, and events.
B-stock units may have minor cosmetic scratches or dents. Some product accessories or the original packaging may be missing when received. B-Stock units are not covered by a full manufacturer warranty. Please call us for details.
Product Specifications:
DMX Channels: 3, 16 or 46
Optional Controllers: RF, Footswitch, ILS Command
DMX Connectors: 3-pin XLR
Pan and Tilt: 270°/540°
Colors (moving head): 9 + open, split colors, continuous scroll at variable speeds
Gobos (moving head): 9 + open, continuous scroll at variable speeds
Light Source (moving head): 1 LED (cool white) 70W (3A), 50,000 hours life expectancy
Light Source (wash): 4 LEDs (hex-color RGBAW + UV) 10W (1.3 A), 50,000 hours life expectancy.
Strobe Rate: 0 to 20Hz
Operating Frequency: 2.4 GHZ
Beam Angle (moving head): 16°
Beam Angle (wash): 22°
Field Angle (wash): 38°
Illuminance (moving head): 7,594 Lux @ 2 m (per head)
Illuminance (wash): 375 lux @ 2 m (per section)
Power Linking: 8 units @ 120 V; 13 units @ 230 V
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 191 W, 1.5 A @ 120 VAC, 60Hz
Power and Current: 175 W, 1 A @ 230 VAC, 50Hz
Fits Tripod Sizes: 1.5 in (37.4 mm)
Max Unobstructed Distance (D-Fi): 600 ft (183 m)
Approvals: CE, RoHS, FCC
