Name: Avante Audio A10, 10&#8243; 2 Way Active PA Speaker with DSP
SKU: pbwcskfx12874
Availability: InStock

Description

Avante Audio A10, 10″ 2 Way Active PA Speaker with DSP

The Avante Audio A10 is a 10″ 2 Way Active PA Speaker with DSP. Achromic Series 10-inch, 2-way Active Loudspeaker. Built-in Digital Signal Processing (DSP) with LCD screen, EQ & multiple presets. The Class-D amplifier delivers 250W (RMS) to the woofer, while the Class-AB amplifier drives 50W (RMS) to the high-frequency compression driver, which combine to provide a frequency range of 70 Hz to 20 kHz with a peak SPL of 121 dB. The integrated DSP offers four modes, Normal, Club, Live, and Speech, allowing you to custom tailor the speaker to your specific application. Additionally, there is a two-band EQ to further enhance the sound. The H-PP molded enclosure features a steel grille and a dual position pole mount with 0 or 7.5° options. The rear panel offers a balanced combo XLR-1/4″ input, two RCA inputs, and a balanced XLR output for connecting additional speakers. There are independent gain controls for the XLR and RCA inputs.

Product Specifications:

Frequency Range: 70hz-20kHz

Output (Peak SPL @ 1m): 121dB

Nominal Coverage: 90˚ x 60˚

Drivers: 10-inch woofer with 2-inch voice coil + 1-inch HF Compression Driver

Inputs: Balanced Female XLR ¼-inch combo jack, 2x RCA (phono)

Output: Balanced Male XL

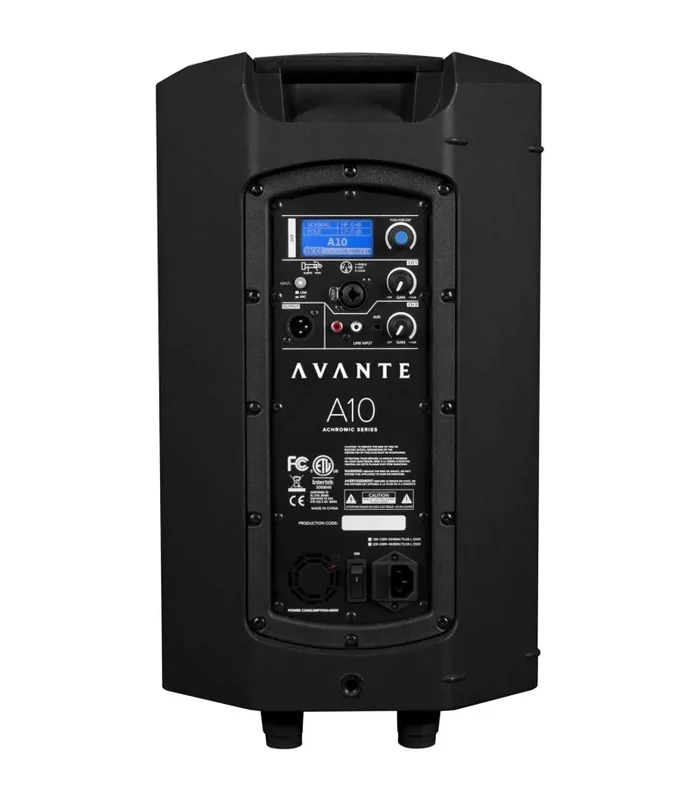

Enclosures: H-PP Molded

Grill: 1.2mm Steel

Handles: 1 on top

Fly Points: 2 on top / 1 on back

Pole Mounting: Dual position 0-degrees or 7.5-degrees

Power Consumption: 400W

Dimensions: 20.9”x12.2”x11.8” / 530x310x299mm

Weight: 25 lbs. / 11.3 kg.
