Description
Audix AP42 C210 Dual-Channel Combo OM2 Handheld and ADX10 Lavalier Wireless System
The Audix AP42 C210 is a Dual-Channel Combo OM2 Handheld and ADX10 Lavalier Wireless System. A dual-channel system that combines the OM2 handheld transmitter with the ADX10 cardioid lavalier system. This is a very efficient and cost-effective solution for combining the hands-free convenience of a lavalier with the flexibility of a handheld mic. The package is ideally suited for presentations, meetings, or events where the lead speaker remains in control while the handheld microphone is passed around either on stage or in the audience.
Includes
1x R42 32 MHz Two Channel Diversity Receiver
1x H60 Handheld Transmitter with OM2 Capsule Module
1x B60 Bodypack Transmitter with ADX10 Lavalier Microphone
2x Antennas
1x Audio Cable
1x WS10 Windscreen
1x Clip
1x Pouch
4x AA Batteries
1x Power Supply
1x User Guide
1x Rackmount Hardware
2x BNC Cables
Product Specifications:
Receiver
Bandwidth: 32 MHz
# Of Simultaneous Systems: Up to 8
Switchable Frequencies: 106 pre-coordinated frequencies
Wireless Range: Up to 300′ / 91 m
Antenna Connector: 2 x BNC (8 VDC, 150 mA)
Outputs:
2 x XLR 3-pin balanced
2 x 1/4″ TS unbalanced
Audio Output Level:
XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
1/4″: -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
Audio Level Control: -12 to +9 dB in 3 dB steps
Frequency Response: 45 Hz to 18 kHz
Compander: 2:1
Pilot Tone: 32 kHz
Receiving System: Single tuner, antenna diversity
Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)
Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
Dimensions: 16.0 x 8.2 x 1.7″ / 406 x 209 x 44 mm
Weight: 4.8 lb / 2.2 kg
Transmitter
RF Power Output: 10/30 mW
Bandwidth: 64 MHz
Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
Inputs: 1 x mini-XLR 3-pin
Input Impedance:
Mic: 10 kOhms
Line: 1 MOhm
Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
Battery Life: Approximately 14 hours
Current Consumption: 110 mA typical
Power Requirement: 2 x AA 1.5 V batteries
Dimensions: 2.6 x 3.5 x 0.7″ / 67 x 90 x 17 mm
Weight: 3 oz / 85 g without batteries

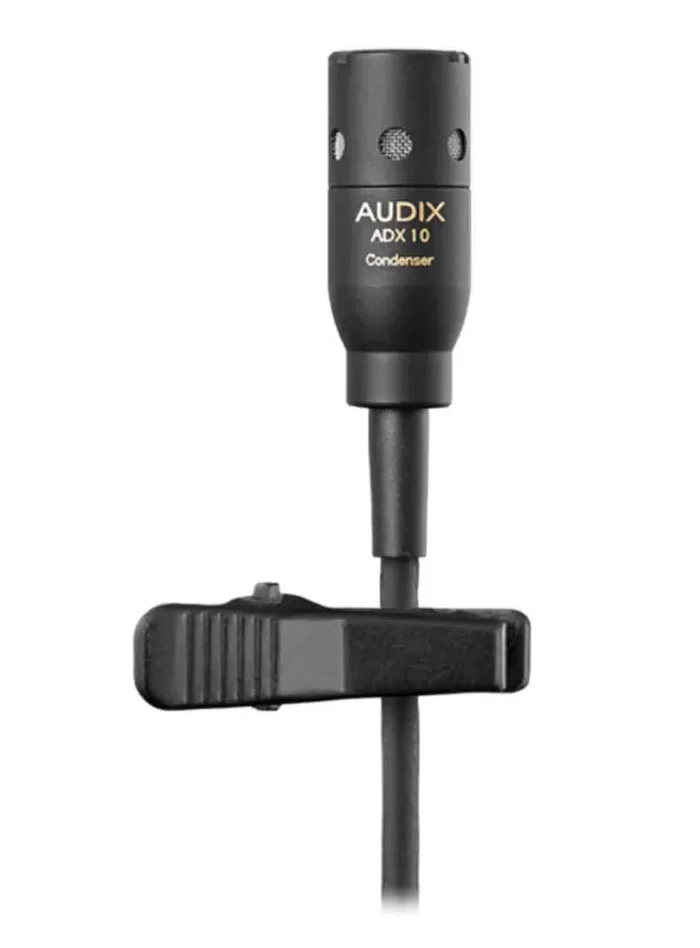

Lavalier Microphone
Transducer: Condenser
Polar Pattern: Cardioid
Frequency Response: 50Hz to 18KHz
Output Impedance: 1000 ohms
Output Connectors: Mini-XLR

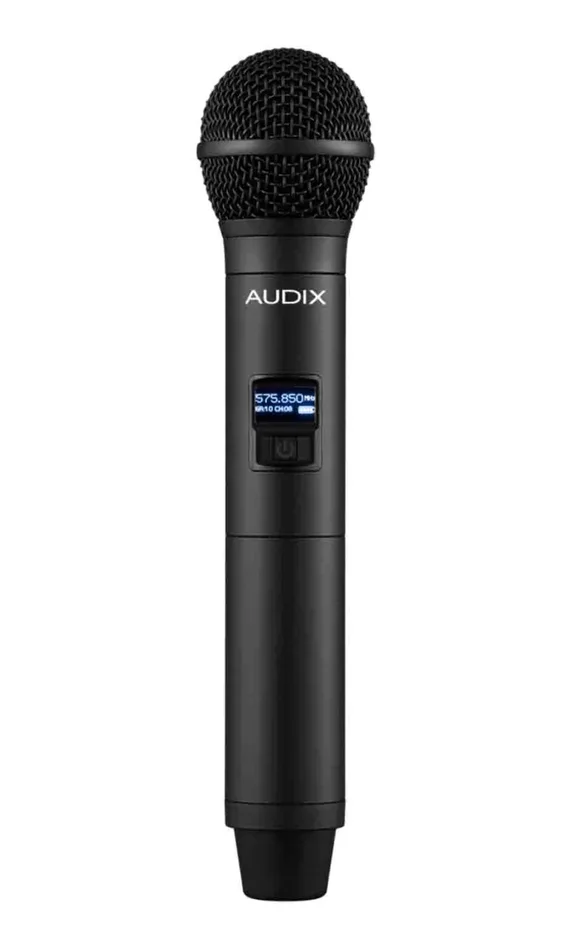

Transmitter with OM2 Capsule
Type: Dynamic
Polar Pattern: Hypercardioid
Capsule : VLM Type B
Frequency Response: 50 Hz to 16 kHz
Maximum SPL: ≥140 dB
Impedance: 290 Ohms
Sensitivity: 1.6 mV/Pa at 1 kHz
