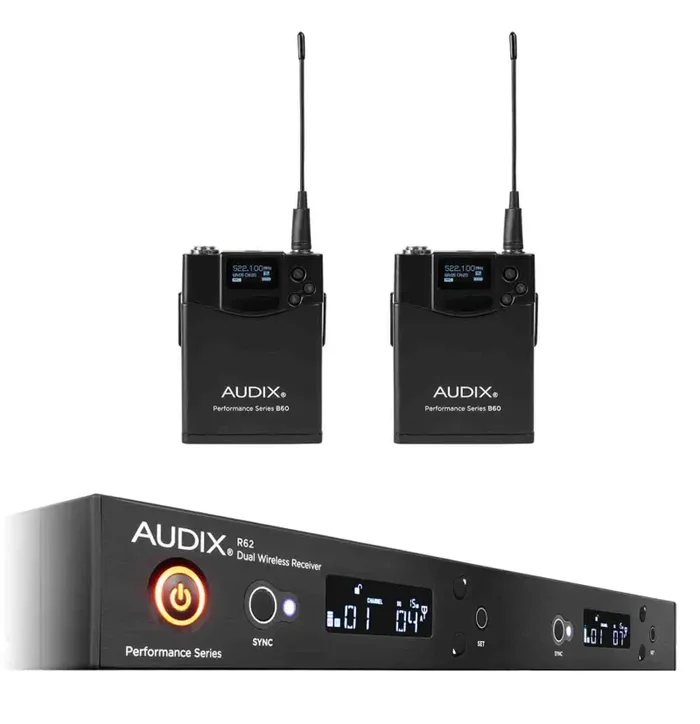

Audix AP42 BP Dual-Channel Wireless System with Two Bodypack Transmitters
The Audix AP42 BP is a Dual-Channel Wireless System with Two Bodypack Transmitters. A value-packed diversity system featuring the versatile B60 bodypack transmitter. This bodypack may be used with any lavalier, head-worn, or instrument microphone in the Audix line, as well as guitar and bass. Included are a rack mount kit and BNC cables for front mounting antennas.
Includes:
1x R42 32 MHz Two Channel Diversity Receiver
1x H60 Handheld Transmitter with OM2 Capsule Module
1x B60 Bodypack Transmitter with ADX10 Lavalier Microphone
2x Antennas
1x Audio Cable
1x WS10 Windscreen
1x Clip
1x Pouch
4x AA Batteries
1x Power Supply
1x User Guide
1x Rackmount Hardware
2x BNC Cables
Product Specifications:
Receiver
Bandwidth: 32 MHz
#Of Simultaneous Systems: Up to 8
Switchable Frequencies: 106 pre-coordinated frequencies
Wireless Range: Up to 300′ / 91 m
Antenna Connector: 2 x BNC (8 VDC, 150 mA)
Outputs:
2 x XLR 3-pin balanced
2 x 1/4″ TS unbalanced
Audio Output Level:
XLR: -12 dBV at 25 kHz deviation, 600-Ohm load, +6 gain
1/4″: -18 dBV at 25 kHz deviation, 10-Ohm load, +6 gain
Audio Level Control: -12 to +9 dB in 3 dB steps
Frequency Response: 45 Hz to 18 kHz
Compander: 2:1
Pilot Tone: 32 kHz
Receiving System: Single tuner, antenna diversity
Signal to Noise Ratio: 105 dB at 30 kHz deviation (A-weighted)
Total Harmonic Distortion (THD): ≤0.7% (33 kHz deviation at 1 kHz)
Sensitivity: 5 dBµV (S/N 60 dB at 25 kHz deviation, A-weighted)
Power Requirement: 100 to 240 VAC, 50/60 Hz, 12 VDC, 1 A
Dimensions: 16.0 x 8.2 x 1.7″ / 406 x 209 x 44 mm
Weight: 4.8 lb / 2.2 kg
Transmitter
RF Power Output: 10/30 mW
Bandwidth: 64 MHz
Gain Adjustment: 0 dB, -6 dB, -12 dB, -24 dB
Inputs: 1 x mini-XLR 3-pin
Input Impedance:
Mic: 10 kOhms
Line: 1 MOhm
Maximum SPL: Approximately 128 to 140 dB (depending on microphone)
Battery Life: Approximately 14 hours
Current Consumption: 110 mA typical
Power Requirement: 2 x AA 1.5 V batteries
Dimensions: 2.6 x 3.5 x 0.7″ / 67 x 90 x 17 mm
Weight: 3 oz / 85 g without batteries
