Description

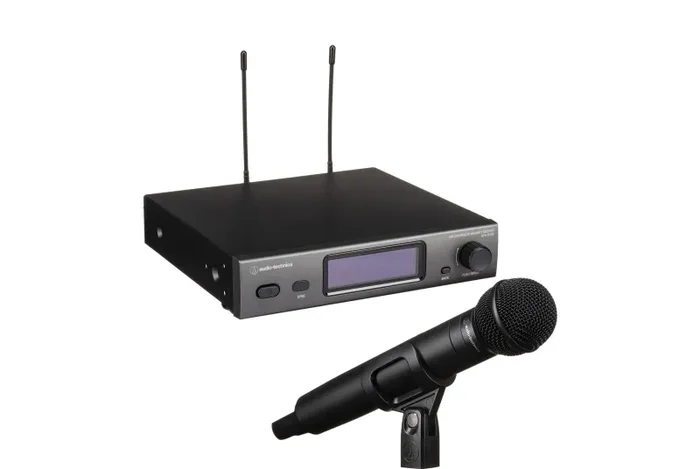

Audio-Technica ATW-3212/C510DE2, 3000 Series Wireless Handheld Microphone System with ATW-C510 Capsule DE2 470 to 530 MHz
The Audio-Technica ATW-3212/C510 is a 3000 Series (4th generation) rackmount wireless handheld microphone system with professional-level features for enhanced reliability and control. It features an intuitive interface with a dual-mode OLED screen for easy operation. With a wide 60 MHz tuning range and true-diversity reception, the system minimizes potential dropouts to deliver intelligible, natural audio for presenters, clergy, lecturers, and performers working in business and educational settings, houses of worship, or on musical stages.

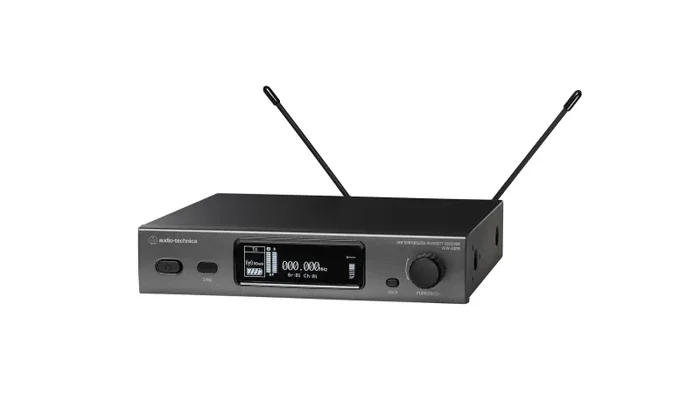

The ATW-3212 includes a half-rack receiver housed in a rugged, full-metal chassis with removable antennas, well suited for rackmounting in portable flight cases or permanent installations. The receiver’s auto-scan function searches 2395 selectable frequencies, seeking out a clean, interference-free channel for your audio transmission. The 3000 Series lets you set a clean backup frequency in advance, which you can quickly switch to with a press on the transmitter’s multifunction button in the event of unexpected interference.
This system includes a handheld transmitter equipped with an interchangeable ATW-C510 dynamic cardioid microphone capsule optimized for speech and vocals. The transmitter provides up to 9.5 hours of operation on two AA NiMH rechargeable batteries (available separately), with a selectable 10/30mW RF power output for overcoming interference in difficult RF environments. The transmission range is up to 330′. Up to 40 mic channels can operate simultaneously in each frequency band.
.iframe-container{
position: relative;
width: 100%;
padding-bottom: 56.25%;
height: 0;
}
.iframe-container iframe{
position: absolute;
top:0;
left: 0;
width: 100%;
height: 100%;
}
Product Specifications:
System: 2400 to 2483.5 MHz
Diversity: True Diversity
RF Frequency Band: DE2: 470 to 530 MHz
Number of RF Channel Frequencies: 2395
Max Operating Range: 328.1′ / 100 m
Max Transmitters per Band: 40
Dynamic Range: 115 dB
Encryption: No
Receiver: 1x Internal
Antenna: 2x 1/4 Wave External, BNC (Rear-Mount)
Number of Audio Channels: 1
Gain Range: -60 to 0 dB (2 dB Steps)
Frequency Response: 25 Hz to 16.7 kHz (Dependent on Mic)
Display & Indicators: 1x Backlit OLED (AF Level, Channel, Frequency, Mute, RF Level, Transmitter Battery Status)
Power Requirements: AC/DC Power Adapter
Transmitter: 9.9 oz / 280 g (without Batteries)
Included Transmitters: 1x Handheld
RF Output Power: 10 / 30 mW (Switchable, at 50 Ohms)
Antenna: 1x Internal, Fixed (Handheld)
Muting: Programmable Mute Switch
Gain Range: -10 to +20 dB (2 dB Steps)
Sync Method: IR
Display & Indicators: 1x OLED (Battery Status, Channel, High-Pass Filter, Mute, Power, RF Output Power, Sync)
Microphone: 12.75 x 2.7 x 2.6″
Transmitter Battery Life:
Low:
9.5 Hours (NiMH)
9 Hours (Alkaline)
High:
9 Hours (NiMH)
8 Hours (Alkaline)
AC/DC Power Adapter: 12 VDC at 1 A, Center-Positive (Included)
Rackmount Size: 1 RU (1/2 Rack)
Shipping Weight: 5.67 lbs.
Shipping Dimensions (LxWxH): 15.25 x 13.5 x 3.25″
