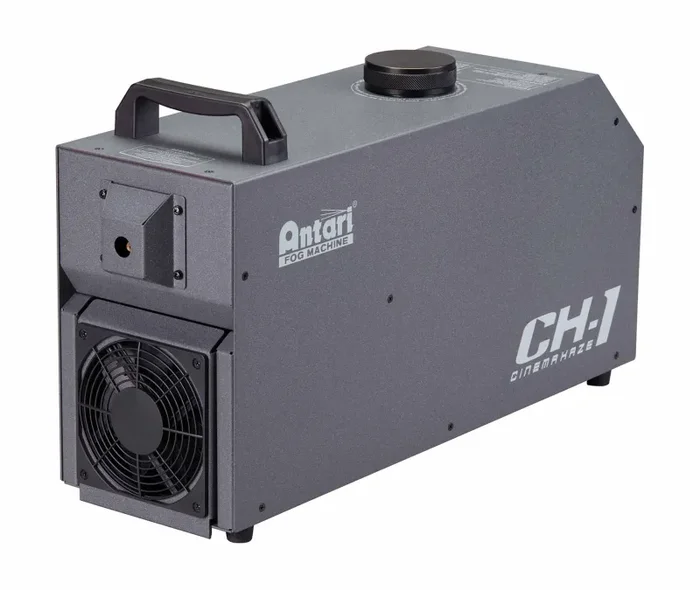

Antari CH-1 Cinema Haze Machine

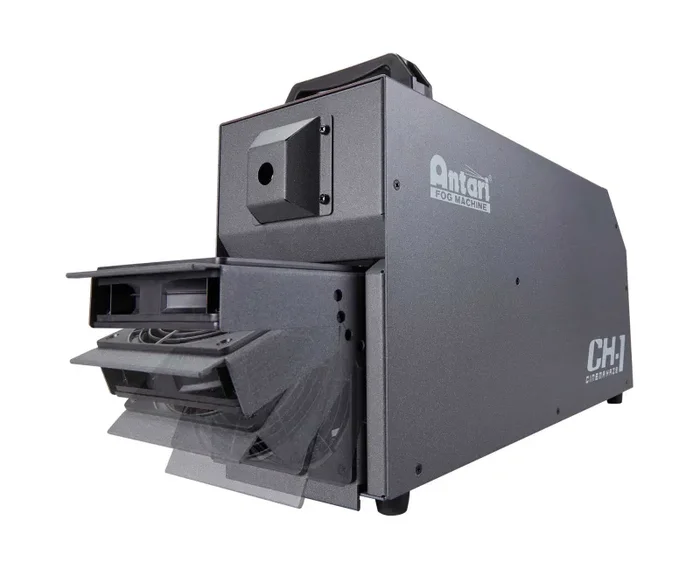

The Antari CH-1D is a Cinema Haze Machine. The CO2 model produces high volume of fine haze smoothly with little working sound, comes with an adjustable fan to bring the haze in different angle. Equipped with color touch panel for intuitive operation, connected with a CO2 gas bottle, mixing the gas and liquid together to provide a longer hanging time.
Product Specification:
Input Voltage: AC 100-240V, 50/60HZ 6A
Rated Power: 120V 700W, 240V 1250W
Warm-Up Time: 8 minutes (approx)
Fluid Consumption: 2 ml/min @40 psi / 2.76 bar
Fluid Tank Capacity: 2.5 Liters (0.66 gallon)
Compatible Fluid: Antari CHL-2 Haze Fluid
Gas Type: CO2, N2
Gas Pressure Range: 50 – 60psi / 3.4 bar – 4.1bar
Gas Consumption: 0.36 Kg / hr @ 40 psi, 0.18 Kg / hr @ 20psi
Control Interface: TFT LCD Touch Screen
Ambient Temp/ Range: 0°C – 40°C (32°F – 104°F)
Control: Manual, Timer, DMX 512, Wireless DMX (Optional)
Dmx Channels: 1 / 3 / 5 Channels
Connection: Neutirk TRUE 1 Connector (Power), XLR 3-pin and 5-pin (DMX), 9/16 -18 R.H (Gas inlet)
Optional Accessories: W-DMX-PCBR, FCH-1 Flight Case
Dimension: L 22.79 W 6.46 H 12.25 inch
Weight: 17 kg (37.48 lbs)
