Description

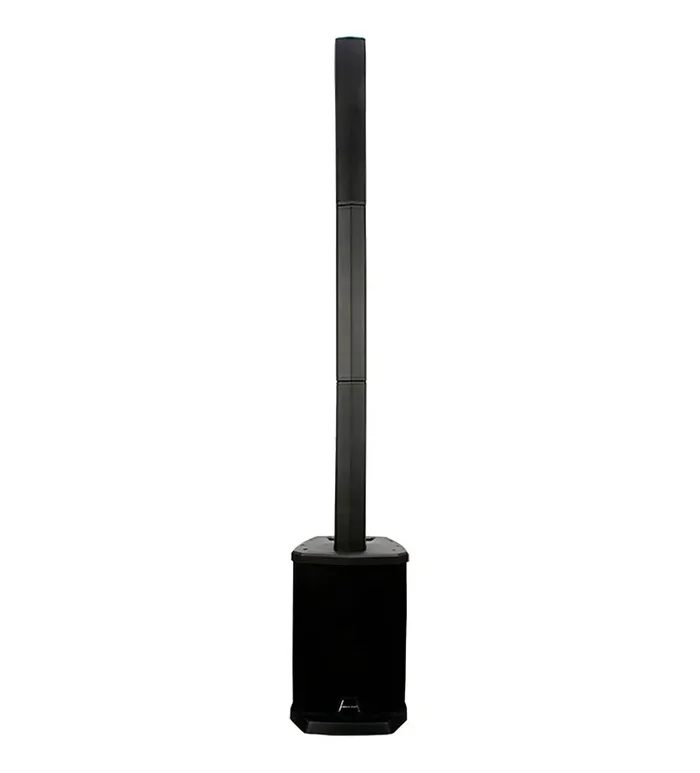

American Audio APX CS8, AC Powered PA System with Class-D Amplifier and Bluetooth TWS – Black
The American Audio APX CS8, AC Powered PA System with Class-D Amplifier and Bluetooth TWS offers an impressive output from a very compact column system, it is a great choice for live PA, musicians, and mobile entertainers looking for an extremely portable PA setup. The system features an 8-input mixer with Bluetooth TWS (True Wireless Stereo) playback, SD Card input, USB input, mini jack input, two XLR inputs and two ¼-inch stereo inputs.
The APX CS8 is powered by a Class-D amplifier with an 8-inch woofer. It has 3 columns, one with four (4) 2.5-inch drivers, and two spacers.
The System includes: (1) 8-inch active subwoofer, (1) column speaker with four 2.5-inch drivers, (2) spacer.
Product Specifications:
System Includes:
(1) 8-inch Subwoofer
(1) Column with four 2.5-inch neodymium Speakers
(2) Spacers
Speakers: 8-inch Column Speaker with subwoofer and 4x 2.5inch drivers
System type: AC Powered subwoofer with four treble-reflex enclosures
SPL Output: 108 dB max
AC Input: AC115V~230V 50/60HZ
Amplifier: 100W Class-D Power System
Output Connectors: XLR output
Mixer Input Impedance: Ch1-4 inputs (2 Mono Mic/Line, Stereo)
Signal Indicators: Main Output LED Ladder
Grill: Power coated perforated steel
Extended Position (3 columns):
Dimensions: 15.7”x12.5”x73.1” / 399×317.9×1856.6mm
Weight: 40 lbs. / 18 kg.
Compact Position 2 (only 2 column):
Dimensions: 15.7”x12.5”x54.6” / 399×317.9×1386.6mm
Compact Position 1 (only 1 column):
Dimensions: 15.7”x12.5”x36.1” / 399×317.9×916.6mm
Rear Panel Features:
8 input mixers with line out
Two (2) Mic/Line Input (XLR)
Two (2) Guitar/Line Input (1/4″ Stereo)
1/8” stereo Aux Input
BLUETOOTH TWS (True Wireless Stereo) Connection
SD Card reader
USB Input
Line Output (XLR)
Two (2) Echo Adjustment Potentiometers
Three (3) Channel Volume Adjustment Potentiometers
One (1) Master Volume Adjustment Potentiometers
One (1) Bass Boost Volume Adjustment Potentiometers
Accessories (Sold Separately):
SKAC10: Accu-Cable 10 ft. AC Power to XLR combo cable
SKAC25: Accu-Cable 25 ft. AC Power to XLR combo cable
SKAC50: Accu-Cable 50 ft. AC Power to XLR combo cable
XLPRO-25: 25-foot pro audio XLR cable
